The RPS series redundant power supply uses N+1 parallel current sharing (with Load Balancing) method to achieve power backup and stable power supply, and supports hot swapping design. The RPS series provides communication functions (supports Modbus RTU/TCP) for real-time monitoring, reducing inspection manpower.

• Each slot can plug in a 100W power module
• 4-slot design for N+1 redundancy

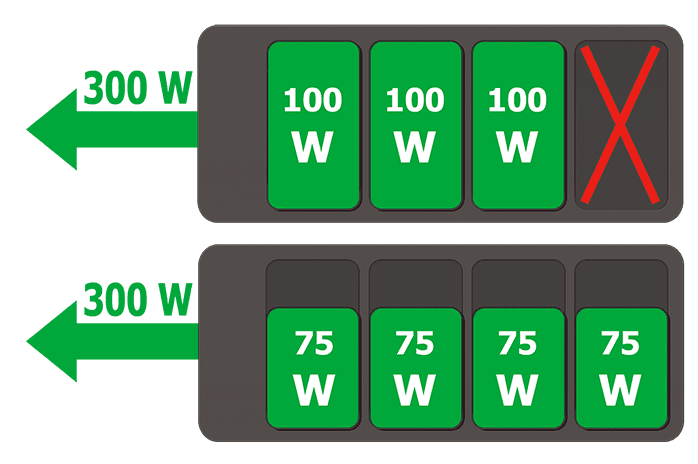

  • The RPS can provide rated power of 3 power modules (300W) when 4 power modules are inserted.
  • The RPS can still supply power at all times when any power module fails. (Number of inserted modules > 1)
• Built-in Load Balancing
  The load current will be evenly distributed to each power module to avoid premature failure of one power module due to overuse.

• The power module supports hot swapping
• Built-in power module diagnostic function
  • Temperature
  • Output current
  • Module failure (with one relay output)
  • Usage time

• Support Modbus RTU/TCP protocol
  Diagnostic information can be access via RS-485, Ethernet

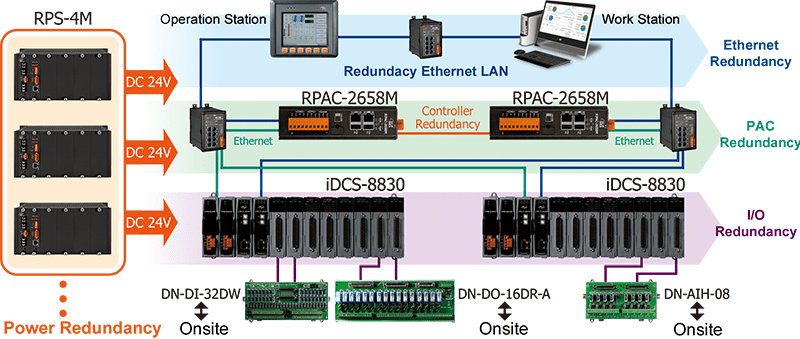

The RPS series can be used with ICP DAS’s redundant solutions, including I/O redundancy (data acquisition), controller redundancy (program control), ethernet ring communication redundancy (ring network communication) and HMI redundancy (display information record) to form a complete redundant system.
