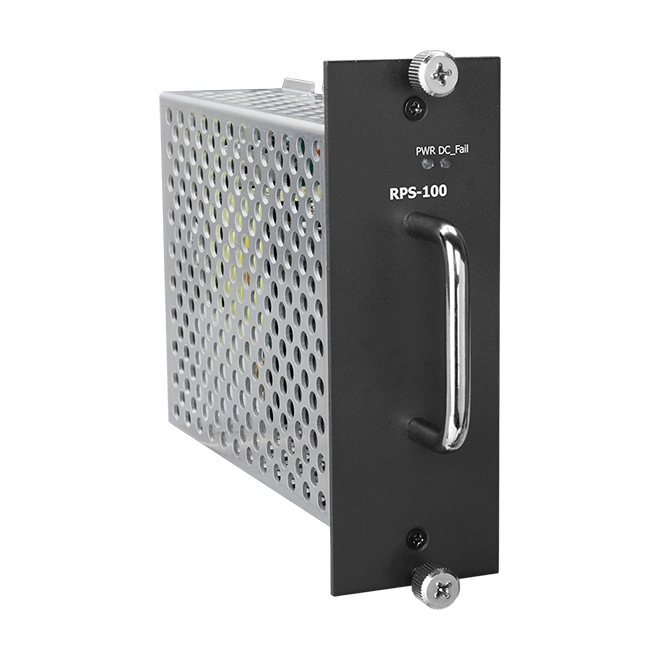

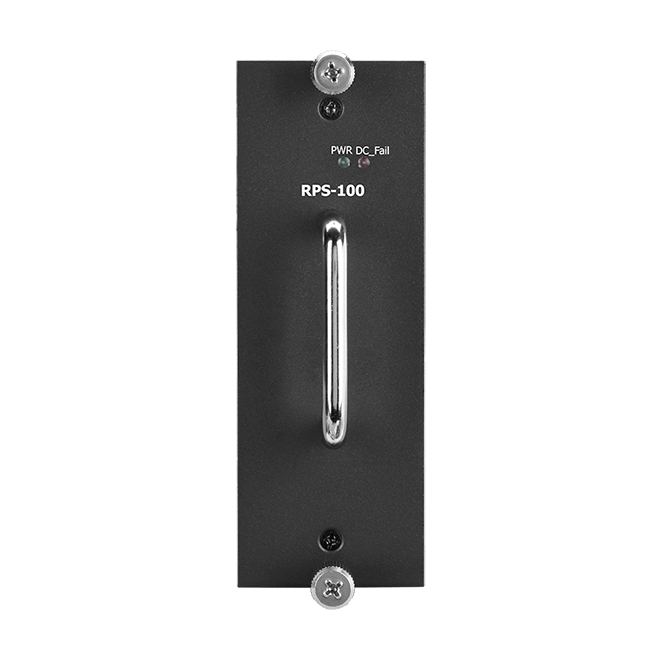

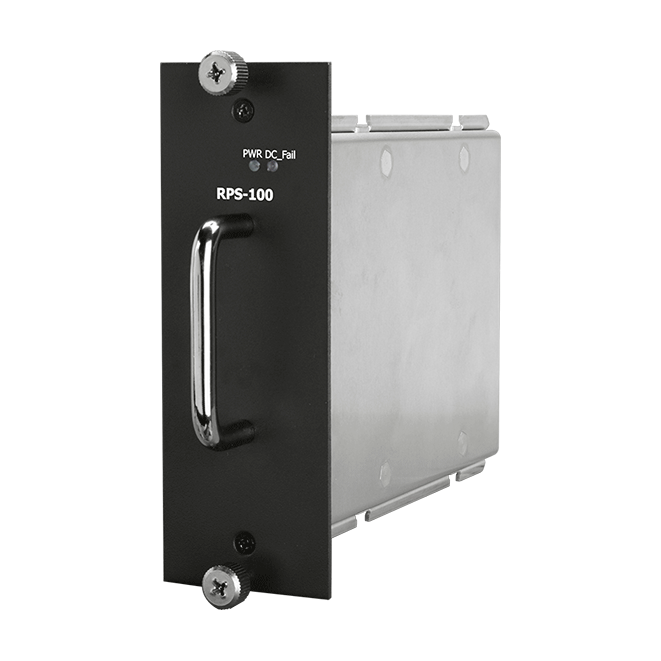

Industrial Redundant Power Supply Module (100W)
RPS-100
RPS-100
RPS-100
RPS-100
RPS-100
RPS-100

Features

  • Max 100W output power
  • Support Load Balance
  • Supports hot swapping
  • Easy installation.
CE UKCA FCC RoHS WEEE

Introduction

The RPS-100 is a highly intelligent redundant power supply module with the ability to return various power supply information to the communication module, including current, temperature, status, and runtime. These functions can be used not only to assess the health of the power module, but also to record the power consumption of the entire power system, and to send real-time alarms under abnormal conditions, thus achieving the effect of predictive alarms and early warning of faults.

In addition, the RPS-100 is equipped with a runtime logging function, which can be used for maintenance and replacement decisions, as well as MTBF (Mean Time Between Failure), which allows for early replacement of power modules as they approach the end of their useful life, further enhancing the reliability and stability of the power supply.

The RPS-100 has a built-in load balancing function that eliminates the need to install additional load balancing modules, and the slot design supports hot-swappable replacement, which makes the replacement process simple and does not require a power failure, reducing wiring hassles. The RPS-100's design is simpler and safer than traditional redundant power supply architectures.

These features make the RPS-100 highly reliable and convenient for industrial applications, especially for critical systems that require a stable and safe power supply.

Applications

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES RPS-100     CR DESCRIPTIONIndustrial Redundant Power Supply Module (100W). (RoHs)
This combination include other products.

Similar Products

Safety
Standard Design to meet 62368
EMC
Standard • EN 61000-3-2
• EN 61000-3-3
• EN 61204-3
• IEC 61000-4-2(ESD): ±4 kV for Contact
• IEC 61000-4-3
• IEC 61000-4-4(EFT): ±2 kV for power line
• IEC 61000-4-5(Surge): ±2 kV for power line
• IEC 61000-4-6
• IEC 61000-4-8
• IEC 61000-4-11
LED Indicators
Status 2, PWR, DC_Fail
General
Hot Swap Yes, for power modules
Load Balance Yes
Input
Voltage Range 90 ~ 264 VAC
Frequency Range 47 ~ 63Hz
AC Current (Typ.) 1.01A/115VAC, 0.51A/230VAC
Inrush Current (Typ.) COLD START 30A/115VAC 60A/230VAC
Leakage Current Earth<3.5mA , Touch<0.25mA
Output
Ripple & Noise (Max.) 50mVp-p
Voltage Tolerance ±1.0%
Linearity ±1.0%
Load Regulation ±5.0%
Setup, Rise Time 1300ms,120ms at full load
Hold Up Time (Typ.) 30ms at full load
DC Voltage 24V
Rated Power 100W
Rated Current 4.16A
Efficiency 86% typical
Protection
Over Voltage 110%~200% (Automatic recovery)
Overload 26.4~31.2 (Automatic recovery)
Mechanical
Casing metal
Dimensions (mm) 46 x 133 x 148 (W x L x D)
Environment
Operating Temperature -20 ~ +50 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing
