IoT/eMBB-Optimized 5G Sub-6 GHz M.2 Module.(Asia Only)
Features
- 5G/4G/3G multi-mode module with M.2 form factor,optimized for IoT and eMBB applications
- Worldwide 5G and LTE-A coverage
- Both NSA and SA modes supported
- Region of Production : China
Introduction

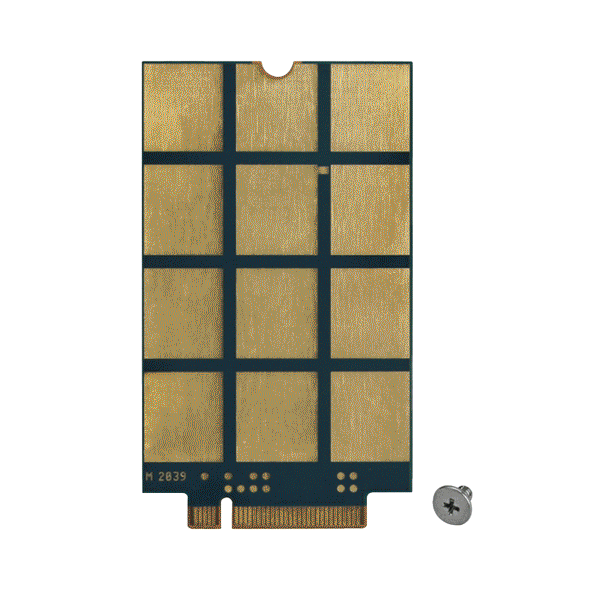

RM500Q-GL is a 5G module optimized specially for IoT/eMBB applications. Adopting the 3GPP Release 15 LTE technology, it supports both 5G NSA and SA modes. Designed in an M.2 form factor.
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| 3G System | |
|---|---|
| Frequency Band | WCDMA B1/B2/B3/B4/B5/B8/B19 |
| 4G System | |
|---|---|
| Frequency Band | LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/ B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48 |
| 5G System | |
|---|---|
| Frequency Band | n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79 |
| Mechanical | |
|---|---|
| Dimensions (mm) | 30.0 x 52.0 x 2.3 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -30°C ~ +70°C |
| Storage Temperature | -40°C ~ +90°C |
