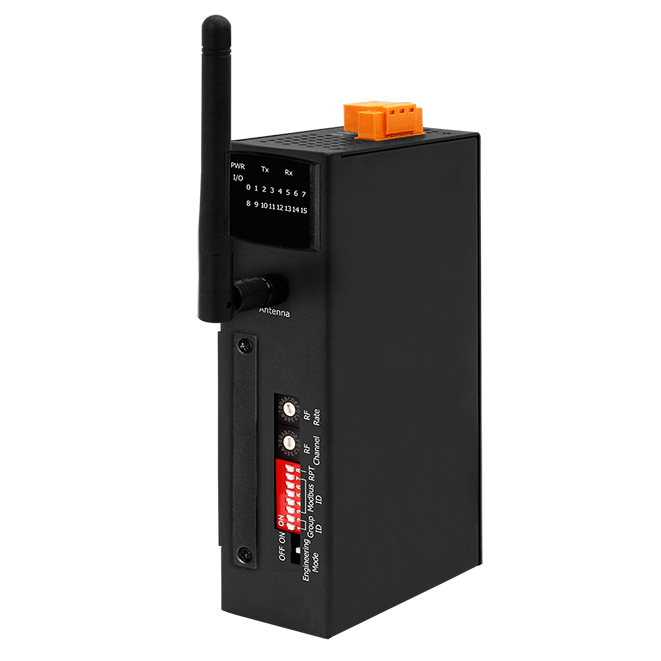

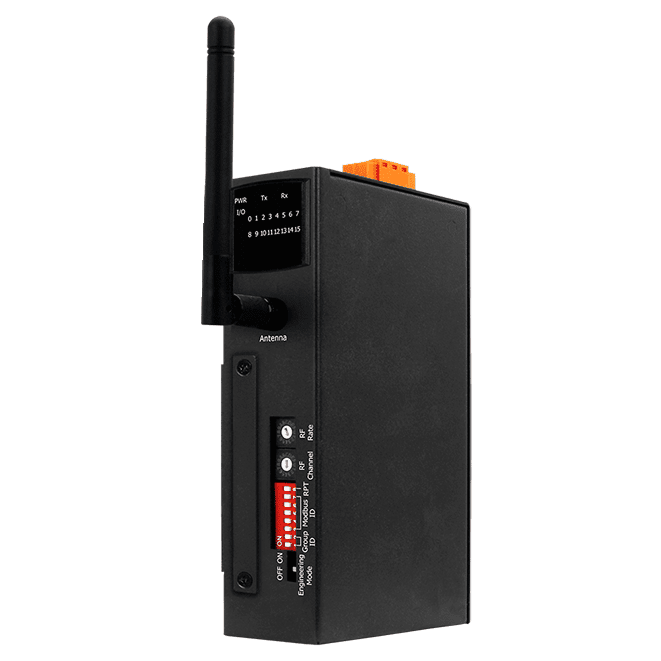

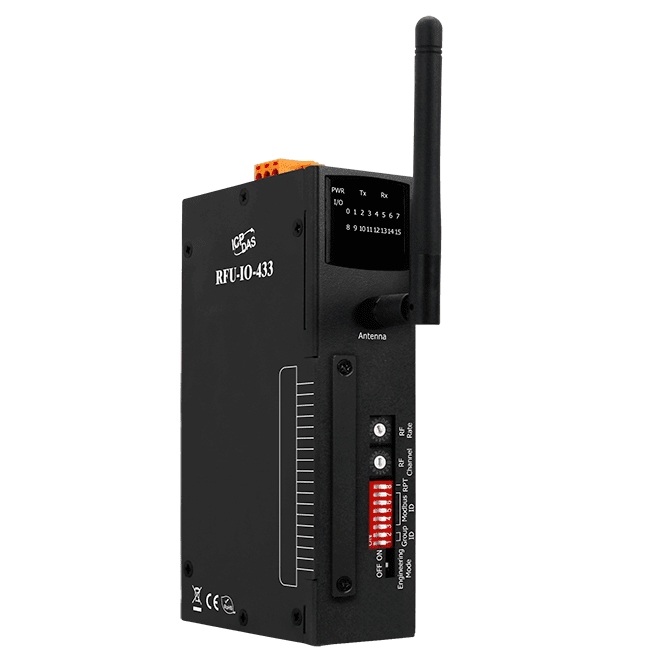

RFU-IO-433
RFU-IO-433
Features
- 433 MHz Radio Frequency
- 16 RF channels with 100 kHz channel spacing
- Provides RF Baud Rates from 650 to 57600 bps
- RF output power default 10 dBm, maximum 19 dBm
- Provides 4 Group IDs numbered from 0 ~ 3.
- Wireless line of sight (LOS) transmission range of up to 300 meters at an RF Baud Rate of 9600 bps and output power 10 dBm.
- Modbus RTU communication protocol.
- Modbus station ID: 1 ~ 32.
- Supports I/O pair-connection mode.
- Supports repeater mode
Introduction
RFU-IO-433 is a 433 MHz RF wireless I/O unit that uses the Modbus communication protocol. A remote Modbus master can use a 433 MHz wireless converter, such as the RFU-433, to convert Modbus commands into 433 MHz signals to control the I/O module on the RFU-IO-433, thereby implementing a wireless I/O solution. The RFU-IO-433 can achieve a transmission distance of 300 meters at a wireless baud rate of 9600 bps in a line-of-sight environment. To address potential environmental interference, the RFU-IO-433 offers multiple wireless baud rate options, ranging from 57600 bps to 650 bps, allowing users to make adjustments. Additionally, users can adjust the wireless channel and group ID to avoid interference between adjacent 433 MHz networks. The RFU-IO-433 supports repeater mode to overcome communication distance and dead zone issues. The RFU-IO-433 also provides I/O pair-connection mode for remote I/O control without a host. These features can be configured via rotary and dip switches, making system maintenance and equipment replacement simple and convenient.
Applications
-

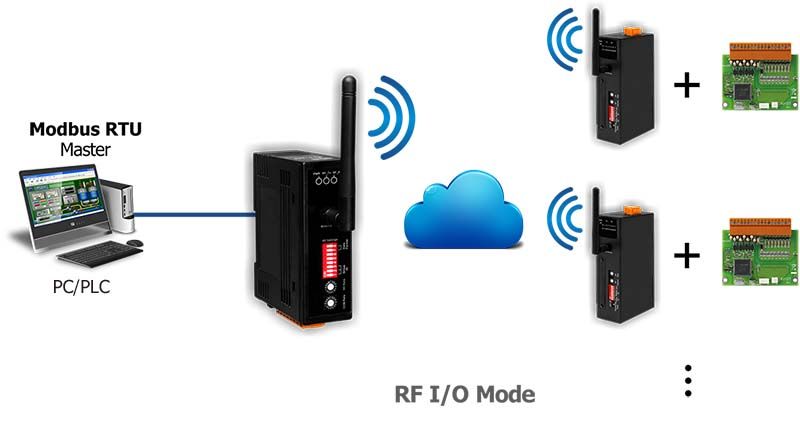

1 - 1 Transfer
-

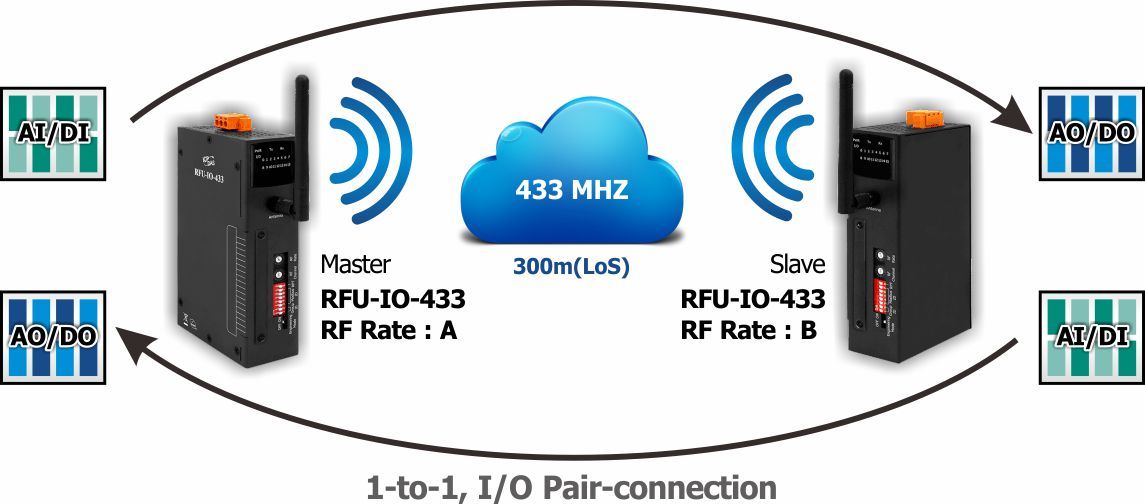

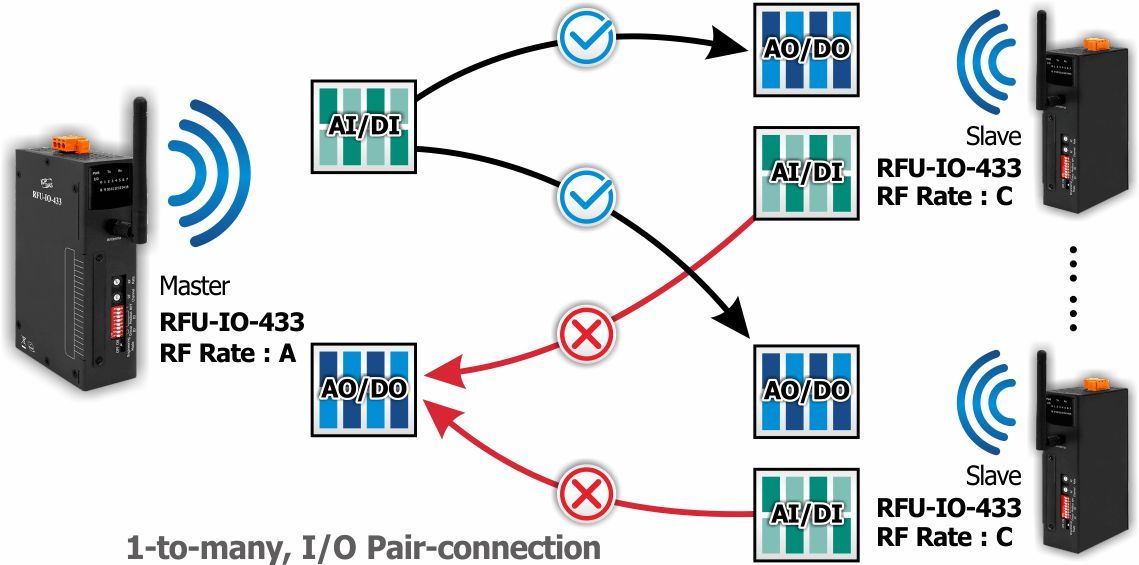

Pair-connection
-

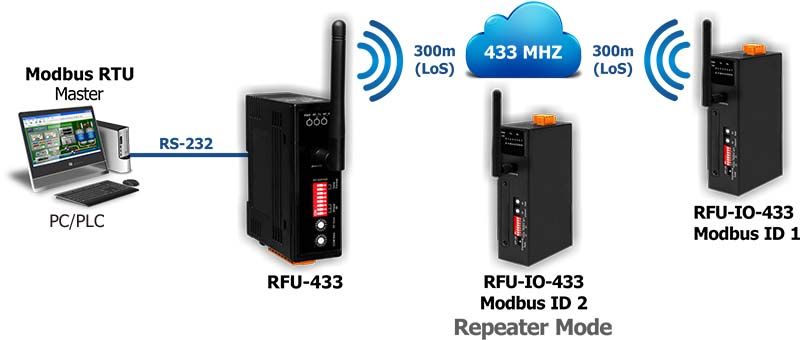

Repeater Mode
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | +/- 1 kV |
| ESD (IEC 61000-4-2) | +/- 4 kV Contact |
| Surge (IEC 61000-4-5) | +/- 1 kV |
| LED Indicators | |
|---|---|
| Status | PWR * 1, Tx * 1, Rx * 1 |
| RF | |
|---|---|
| Antenna | 0 dBi Omni directional, RP-SMA |
| Baud Rate | 650 ~ 57600 bps |
| Channels | 16 |
| Group ID | 0 ~ 3 |
| Protocol | Modbus RTU |
| Radio Frequency | 433.1 MHz ~ 434.6 MHz |
| Transmission Power | Default 10 dBm, Max 19 dBm |
| Transmission Distance (LoS) | 300 m (9600 bps, output power 10 dBm |
| Antenna | |
|---|---|
| Dimensions (mm) | φ7.8 x 108 mm |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 3 W @ 24 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 150 mm x 38 mm x 97 mm |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25℃ ~ +75℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Humidity | 10 to 90% RH (Non-condensing) |
