RDB-S09

Termination board for single isolated analog current/voltage and pulse modules

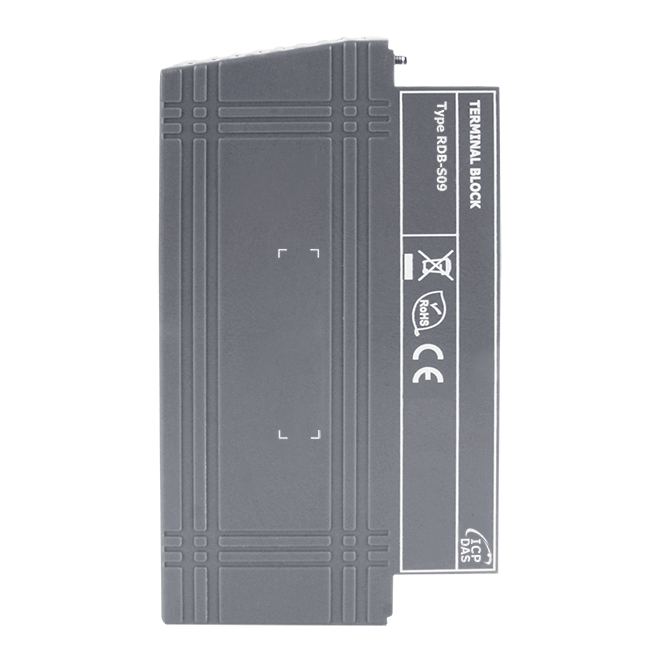

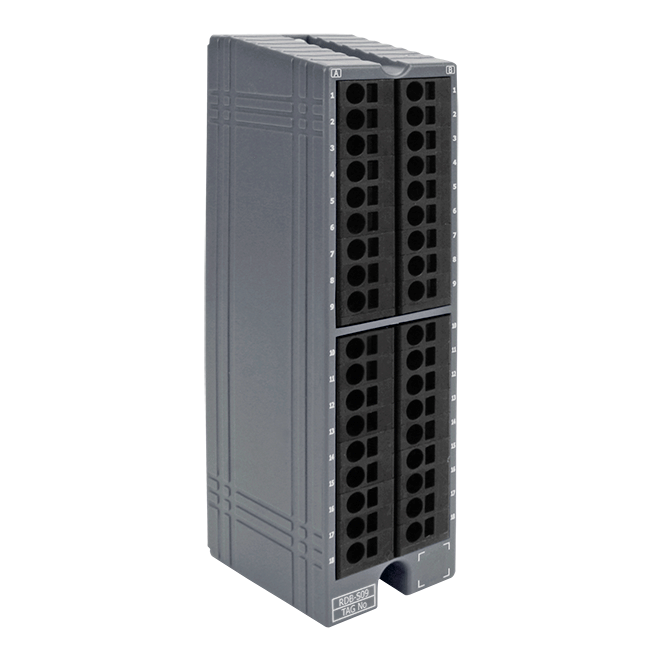

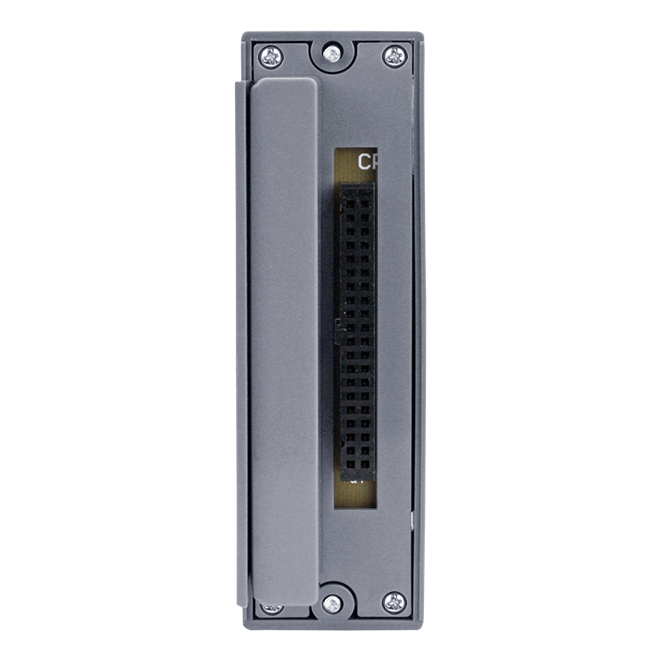

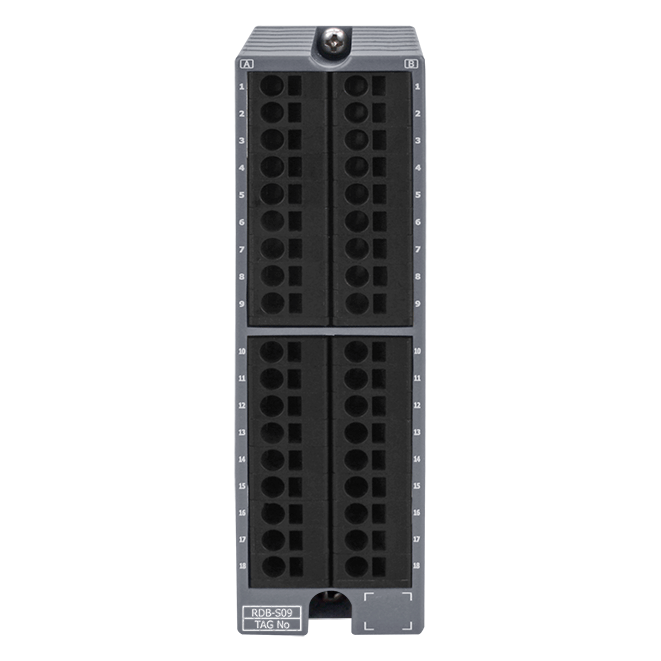

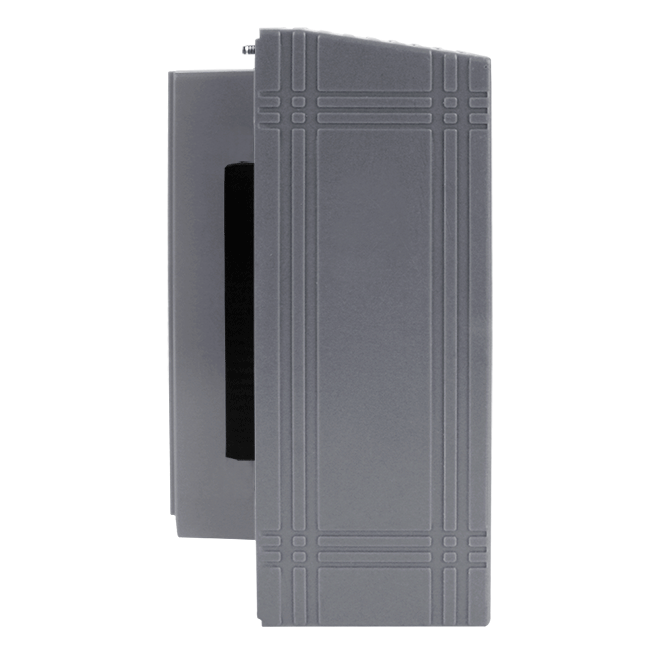

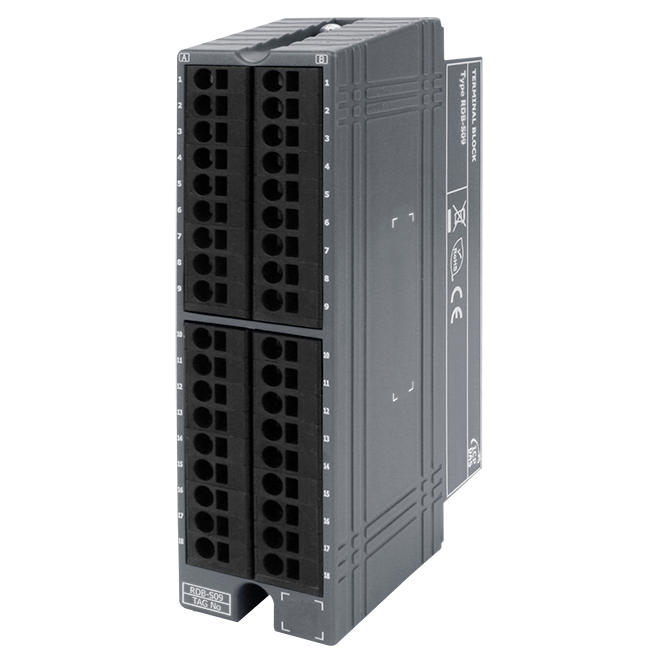

RDB-S09
RDB-S09
RDB-S09
RDB-S09
RDB-S09
RDB-S09
RDB-S09
RDB-S09
RDB-S09
RDB-S09
RDB-S09
RDB-S09

Features

  • Support spring clamp terminal
  • Termination board disconnection detection
  • Support R-9017C1H, R-9028V1, R-9028CH, R-9084
CE UKCA RoHS WEEE

Introduction

RDB-S09 is a terminal board used to single isolated analog current/voltage and pulse modules, supporting spring clamp terminal wiring, which can effectively simplify the wiring process and shorten the system installation time. It supports disconnection detection function to ensure that the alarm will be trigged in time when it disconnects from the I/O module and further improves the safety and stability of wiring signals to reduce the risk of system failure. These features are especially important for industrial environments that require high reliability and stability.

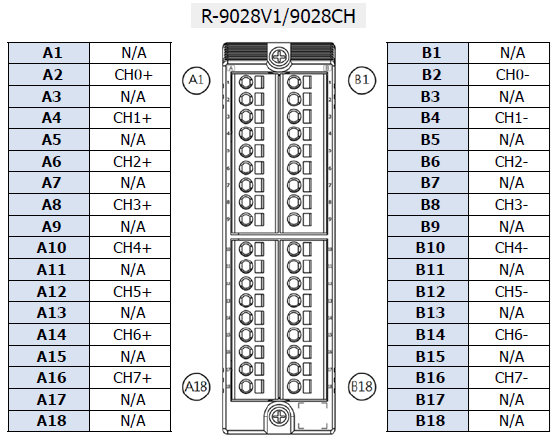

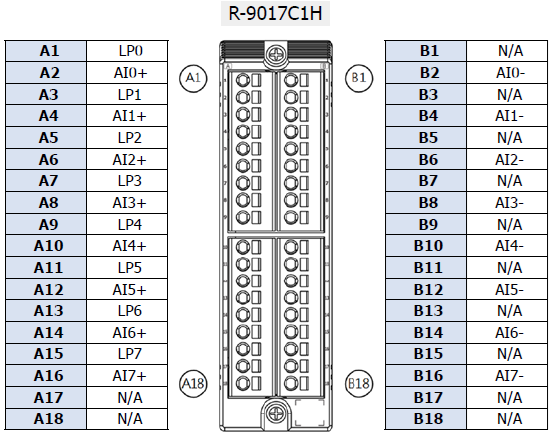

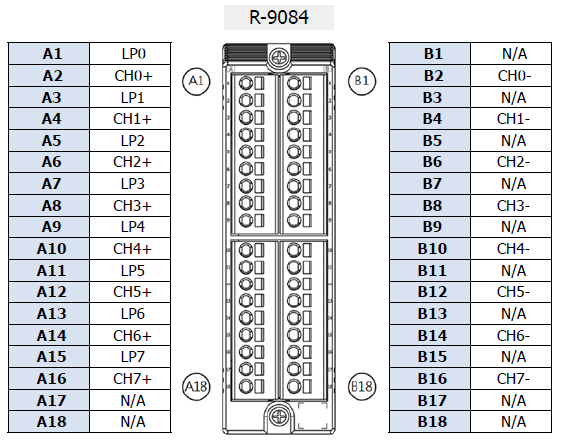

PIN Assignments

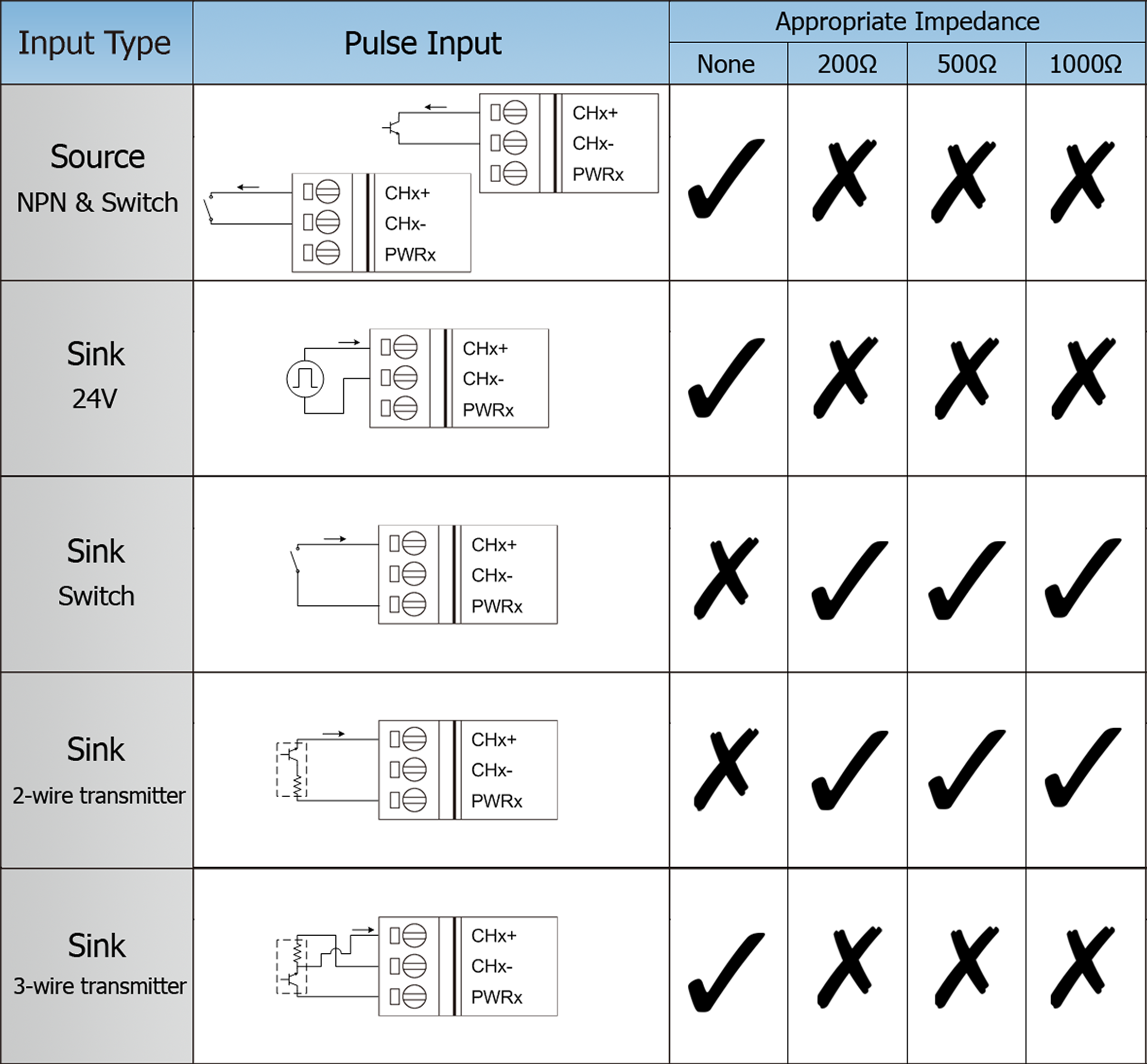

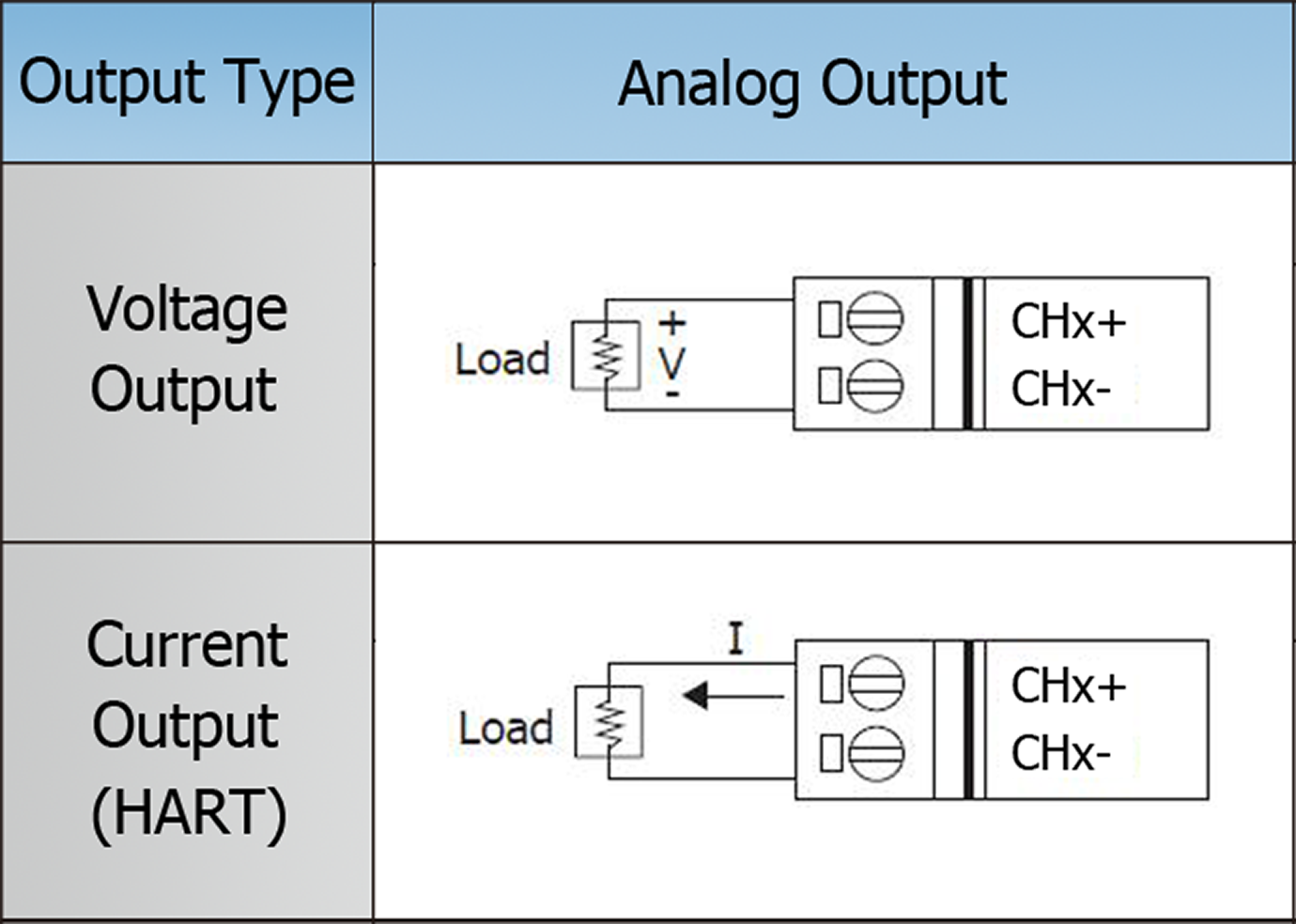

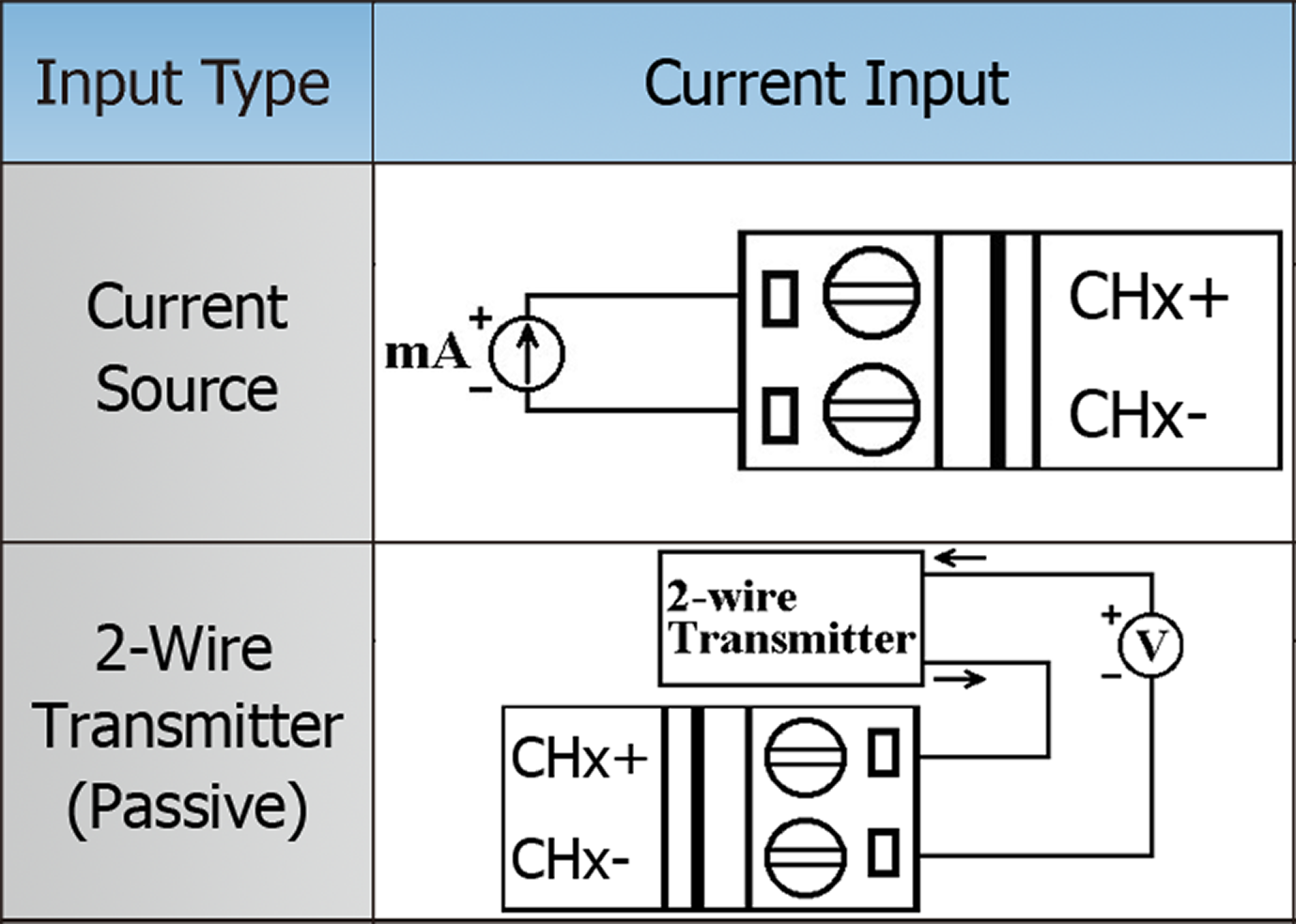

Wiring






Applications

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES RDB-S09     CR DESCRIPTIONTermination board for single isolated analog current/voltage and pulse modules (RoHS)
This combination include other products.

Similar Products

Analog Input
Channels 32
Mechanical
Dimensions (mm) 32 x 115 x 60
Environment
Operating Temperature -25 °C ~ 70 °C
Humidity 5 ~ 95% RH, Non-condensing
