RDB-S08

Termination board for single digital input module (DI)
RDB-S08
RDB-S08
RDB-S08
RDB-S08
RDB-S08
RDB-S08
RDB-S08
RDB-S08
RDB-S08
RDB-S08
RDB-S08
RDB-S08

Features

  • Support spring clamp terminal
  • Termination board disconnection detection
  • Support R-9040
CE UKCA RoHS WEEE

Introduction

RDB-S08 is a terminal board used to single digital input module (DI), supporting spring clamp terminal wiring, which can effectively simplify the wiring process and shorten the system installation time. It supports disconnection detection function to ensure that the alarm will be trigged in time when it disconnects from the I/O module and further improves the safety and stability of wiring signals to reduce the risk of system failure. These features are especially important for industrial environments that require high reliability and stability.

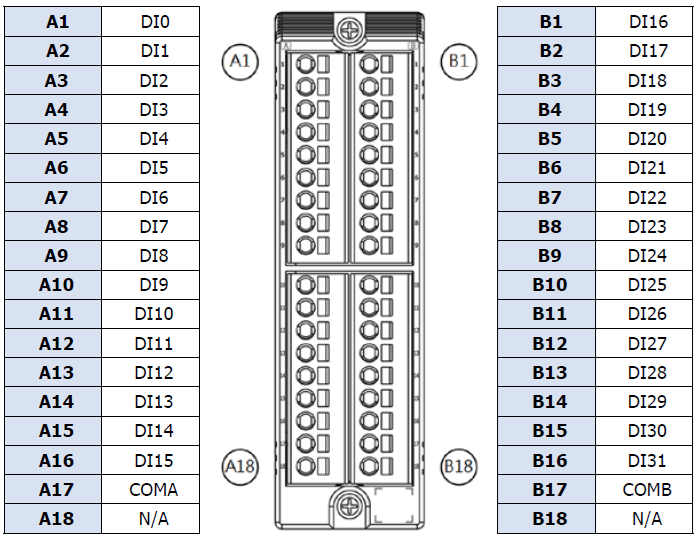

PIN Assignments

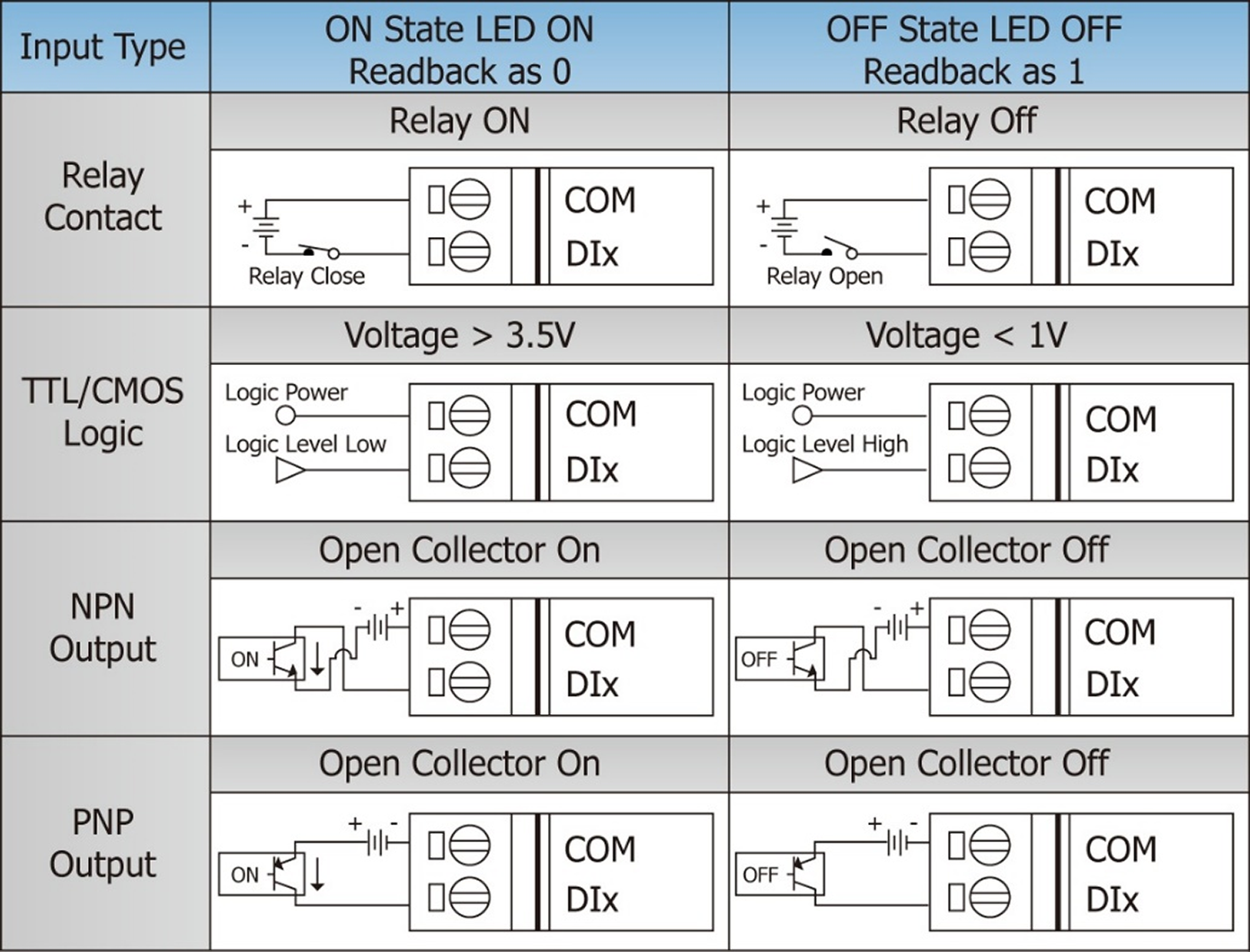

Wiring




Applications

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES RDB-S08     CR DESCRIPTIONTermination board for single digital input module (DI) (RoHS)
This combination include other products.

Similar Products

Digital Input
Channels 32
Type Wet contact (Current sinking / Sourcing)
Mechanical
Dimensions (mm) 32 x 115 x 60
Environment
Operating Temperature -25 °C ~ 70 °C
Humidity 5 ~ 95% RH, Non-condensing
