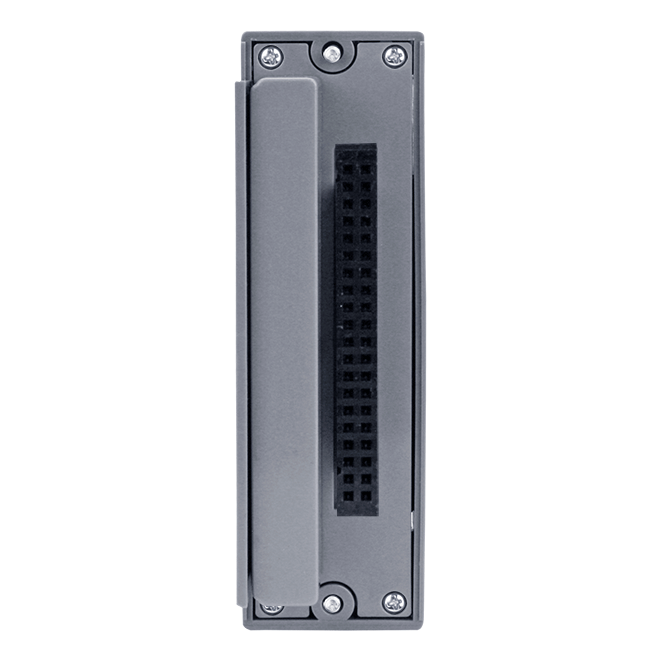

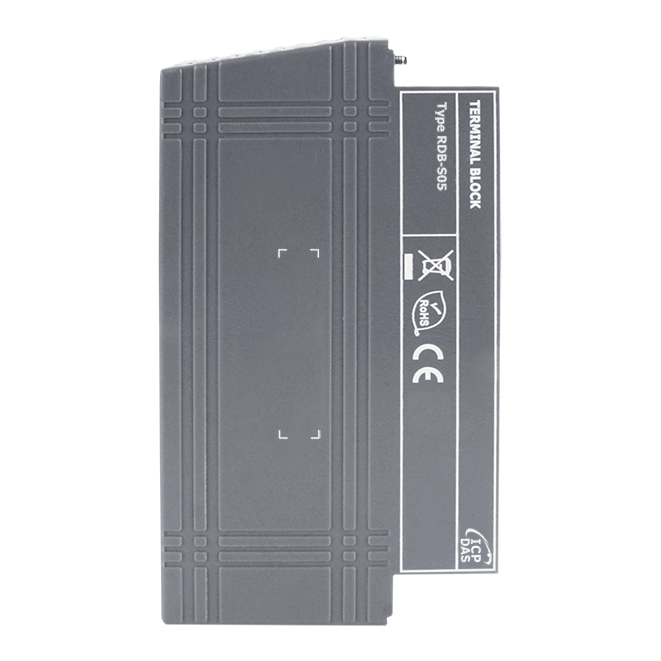

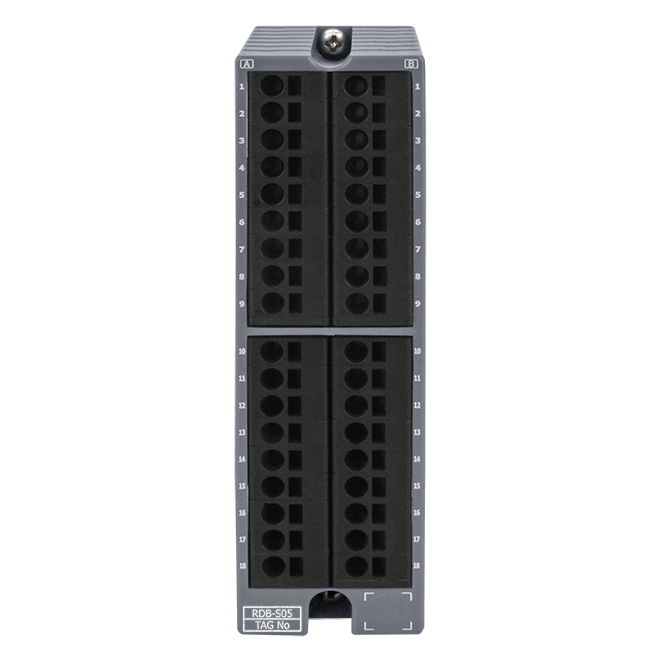

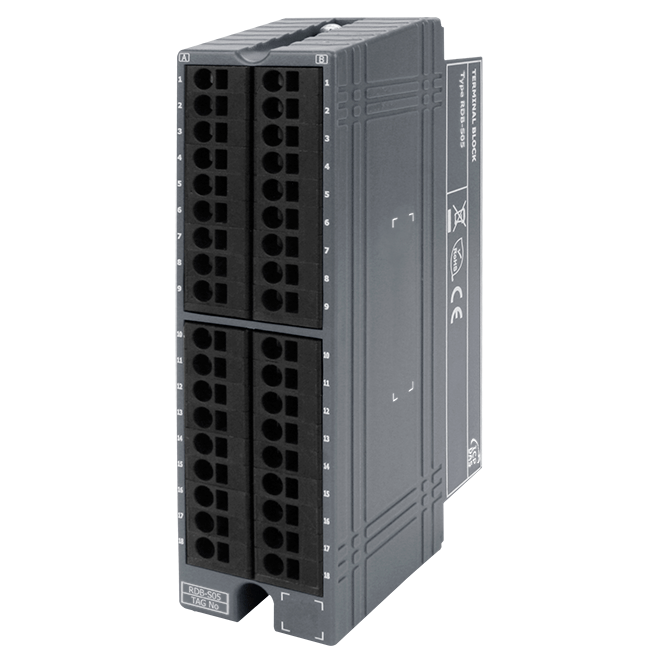

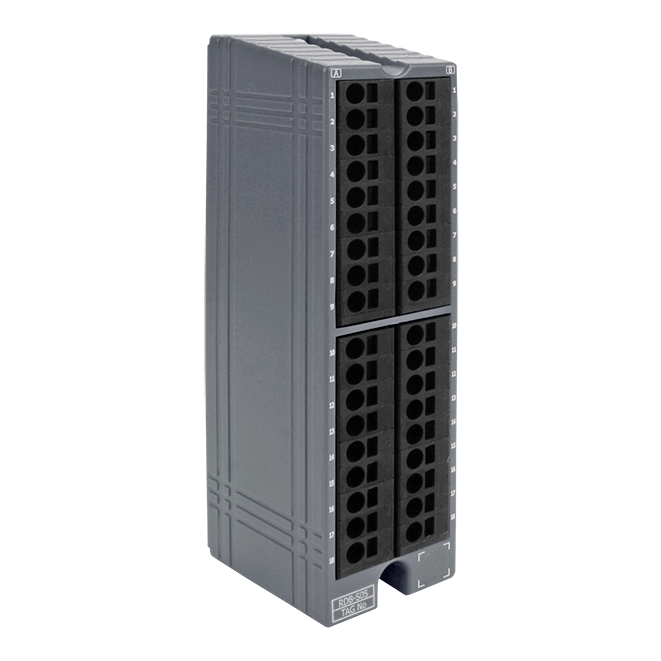

RDB-S05

Termination board for single digital output module
RDB-S05
RDB-S05
RDB-S05
RDB-S05
RDB-S05
RDB-S05
RDB-S05
RDB-S05
RDB-S05
RDB-S05
RDB-S05
RDB-S05

Features

  • Support spring clamp terminal
  • Termination board disconnection detection
  • Support R-9041
CE UKCA RoHS WEEE

Introduction

The RDB-S05 is a termination board used to single digital output module, supporting spring clamp terminal wiring, which can effectively simplify the wiring process and shorten the system installation time. It supports disconnection detection function to ensure that the alarm will be trigged in time when it disconnects from the I/O module and further improves the safety and stability of wiring signals to reduce the risk of system failure. These features are especially important for industrial environments that require high reliability and stability.

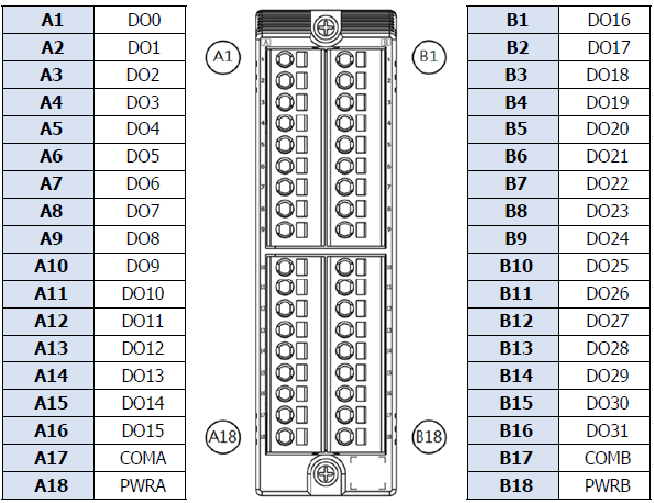

PIN Assignments

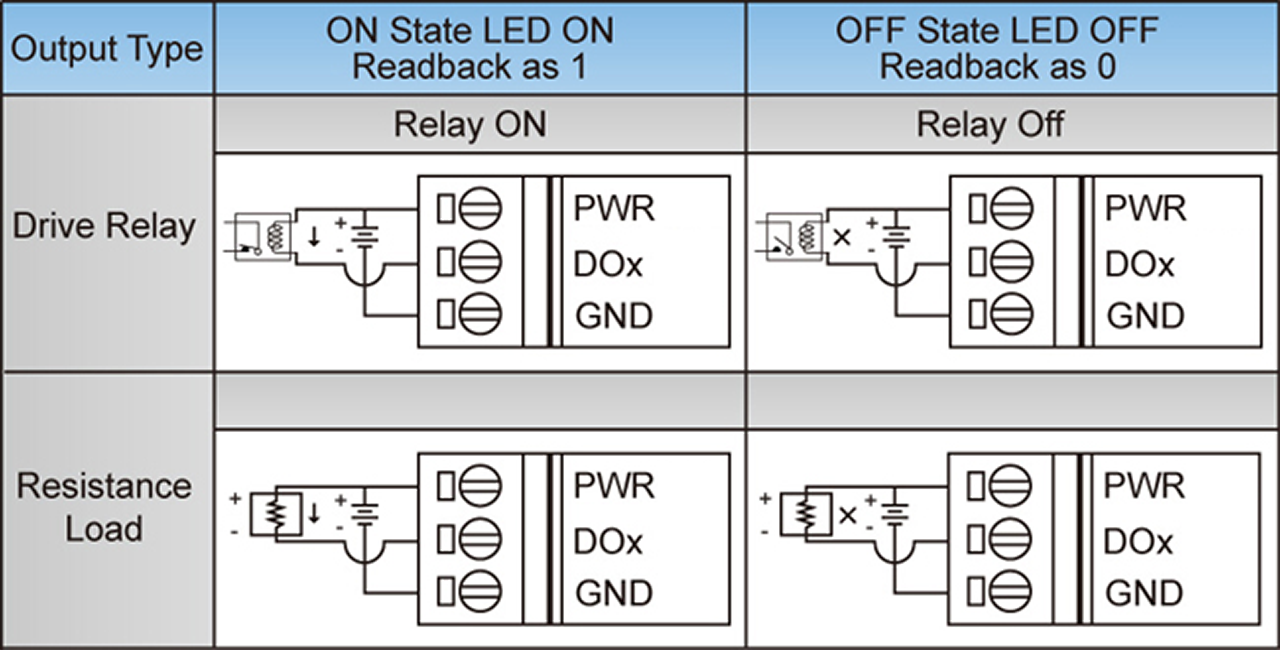

Wiring




Applications

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES RDB-S05     CR DESCRIPTIONTermination board for single digital output module (RoHS)
This combination include other products.

Similar Products

Digital Output
Channels 32
Type Current sinking, Open-collector
Mechanical
Dimensions (mm) 32 x 115 x 60
Environment
Operating Temperature -25 °C ~ 75 °C
Humidity 5 ~ 95% RH, Non-condensing
