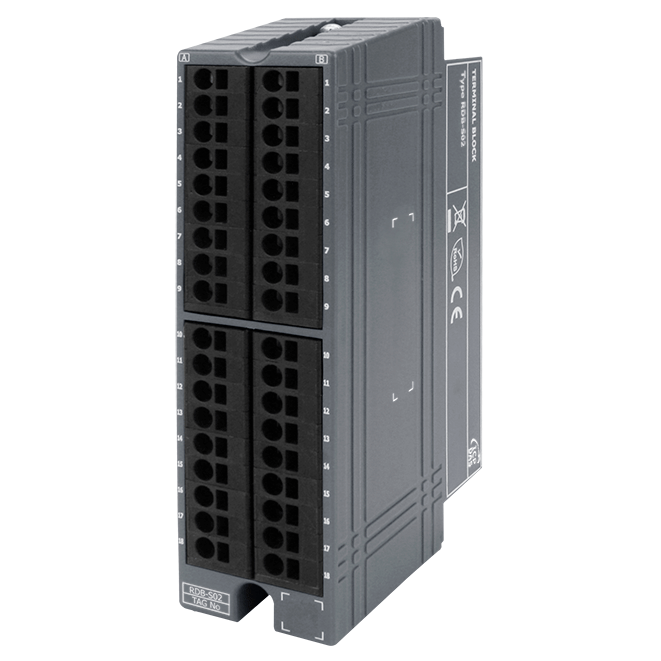

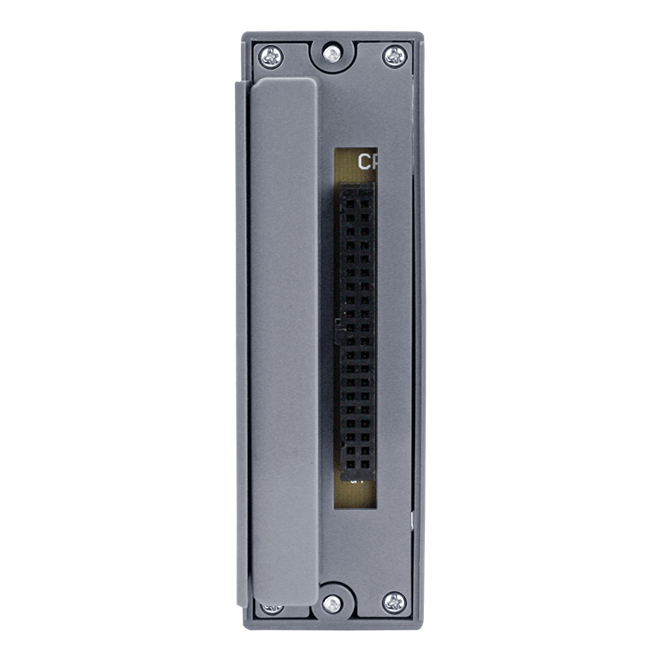

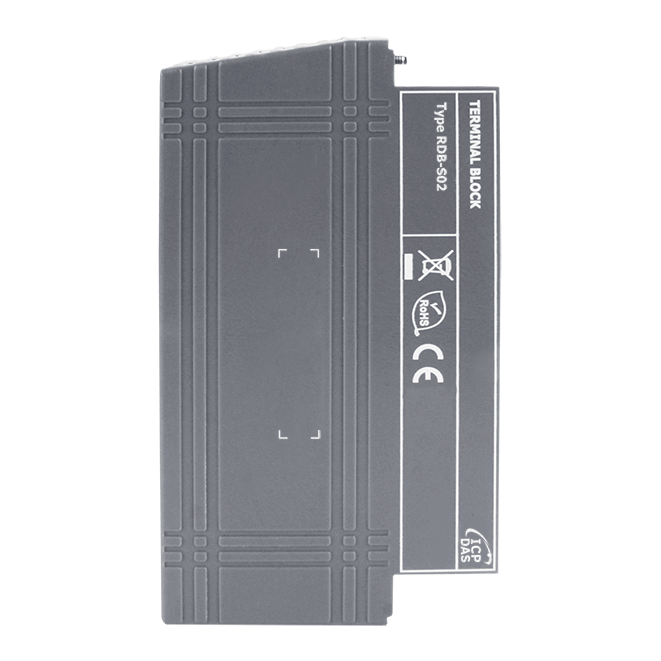

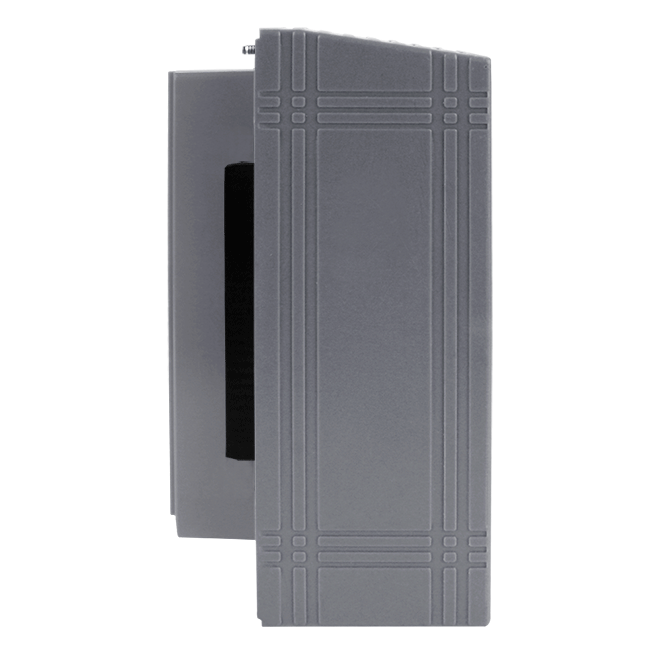

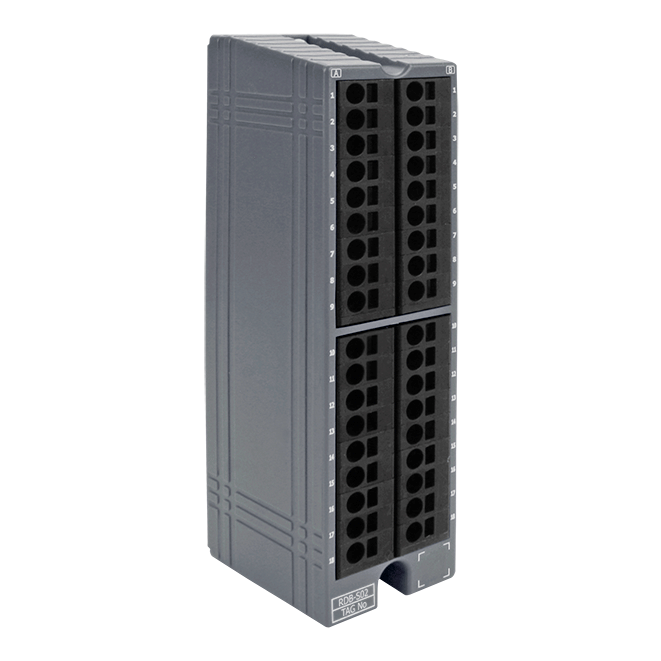

RDB-S02
Termination board for single thermocouple module (TC)
Features
- Support spring clamp terminal
- Termination board disconnection detection
- Support R-9019
Introduction
The RDB-S02 is a termination board used to single thermocouple module, supporting spring clamp terminal wiring, which can effectively simplify the wiring process and shorten the system installation time. It supports disconnection detection function to ensure that the alarm will be trigged in time when it disconnects from the I/O module and further improves the safety and stability of wiring signals to reduce the risk of system failure. These features are especially important for industrial environments that require high reliability and stability.
PIN Assignments
Wiring
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Analog Input | |
|---|---|
| Channels | 16 |
| Mechanical | |
|---|---|
| Dimensions (mm) | 32 x 115 x 60 |
| Environment | |
|---|---|
| Operating Temperature | -25 °C ~ +70 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
