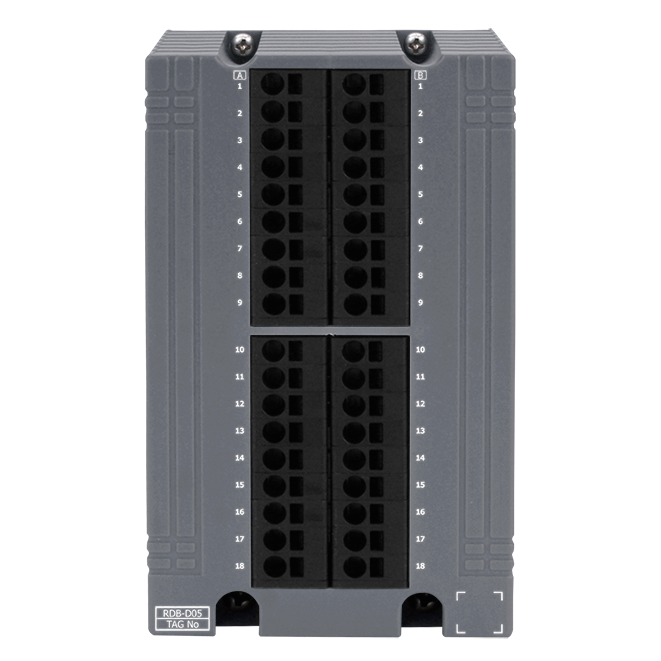

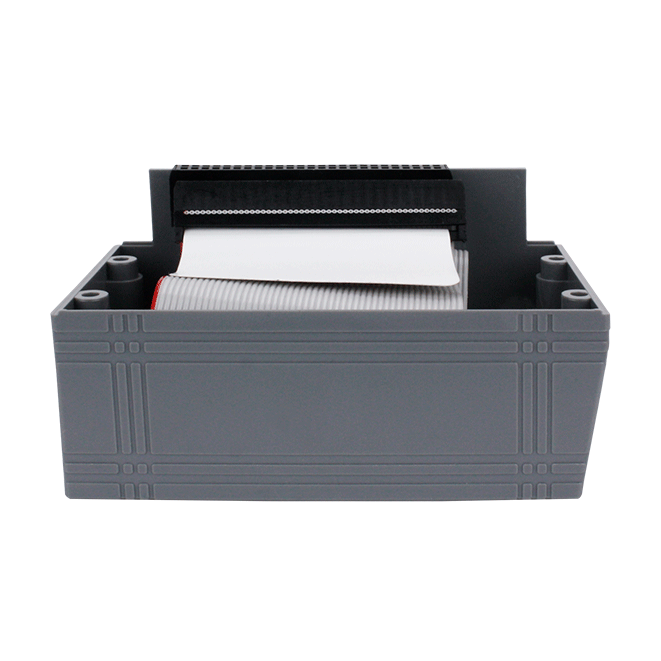

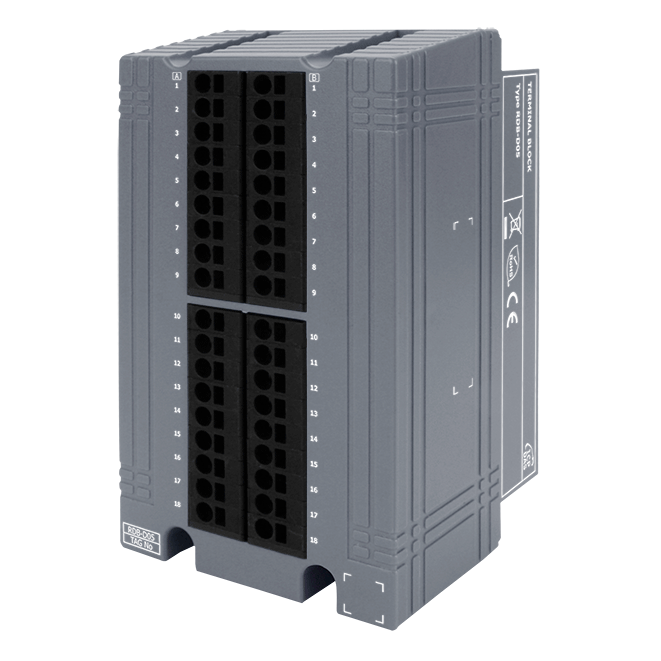

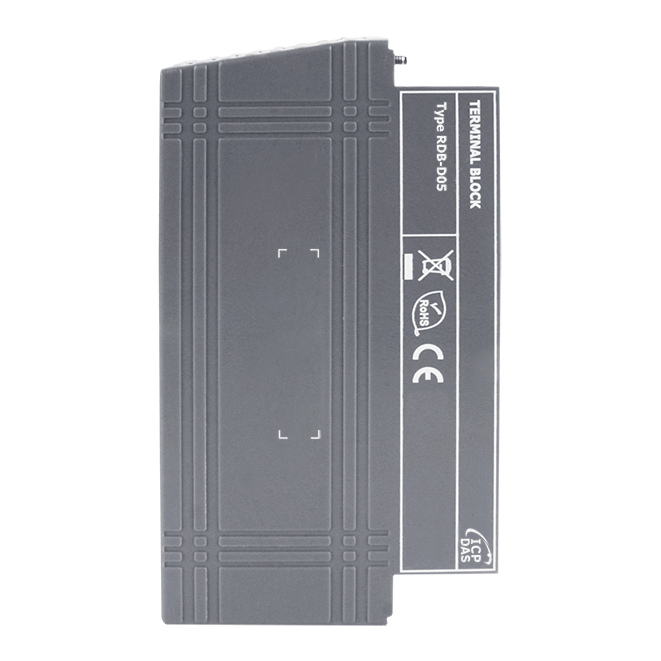

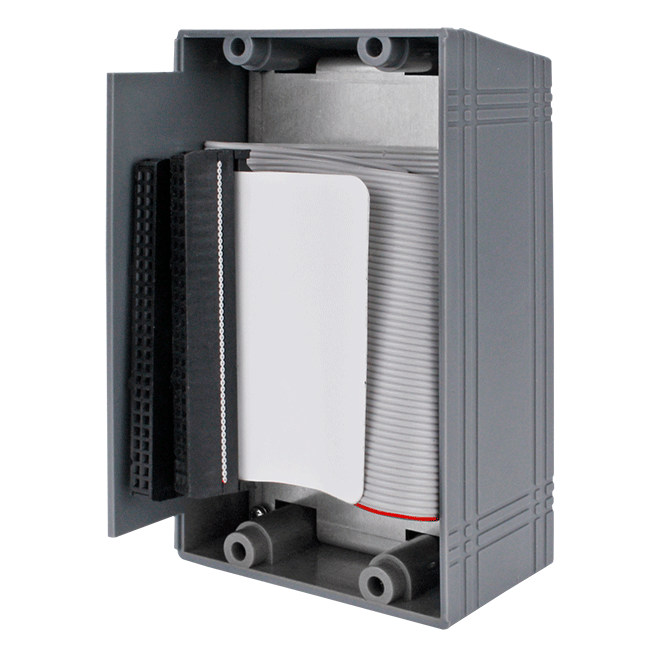

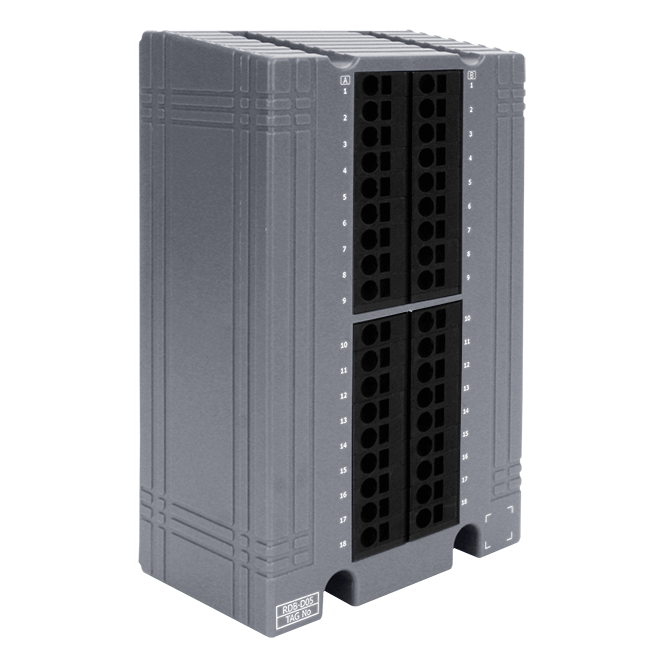

RDB-D05
Termination board for duplex digital output module (DO)
Features
- Supports spring clamp terminals
- Supports terminal board disconnection detection
- Supports R-9041
Introduction
RDB-D05 is a terminal board used to duplex digital output module (DO), supporting spring clamp terminal wiring, which can effectively simplify the wiring process and shorten the system installation time. It supports disconnection detection function to ensure that the alarm will be trigged in time when it disconnects from the I/O module and further improves the safety and stability of wiring signals to reduce the risk of system failure. These features are especially important for industrial environments that require high reliability and stability.
PIN Assignments
Wiring
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Digital Output | |
|---|---|
| Channels | 32 |
| Type | Current sinking, Open-collector |
| Mechanical | |
|---|---|
| Dimensions (mm) | 65 x 115 x 60 |
| Environment | |
|---|---|
| Operating Temperature | -25 °C ~ 70 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
