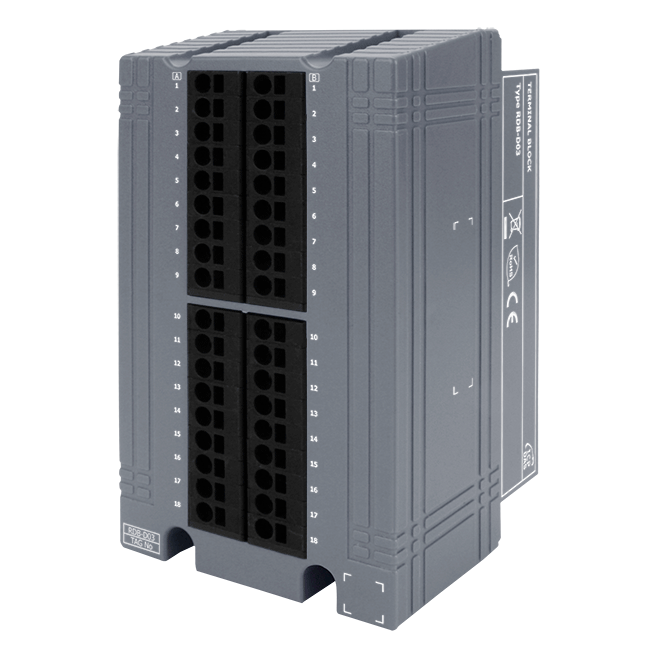

RDB-D03
Termination board for duplex RTD modules
Features
- Supports spring clamp terminals
- Supports terminal board disconnection detection
- Supports R-9015
Introduction
RDB-D03 is a terminal board used to duplex RTD module, which supports spring clamp terminal wiring to effectively simplify the wiring process and shorten the system installation time. It supports disconnection detection function to ensure that the alarm will be trigged in time when it disconnects from the I/O module and further improves the safety and stability of wiring signals to reduce the risk of system failure. These features are especially important for industrial environments that require high reliability and stability.
PIN Assignments
Wiring
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Analog Input | |
|---|---|
| Channels | 12 |
| Mechanical | |
|---|---|
| Dimensions (mm) | 65 x 115 x 60 |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ 70 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
