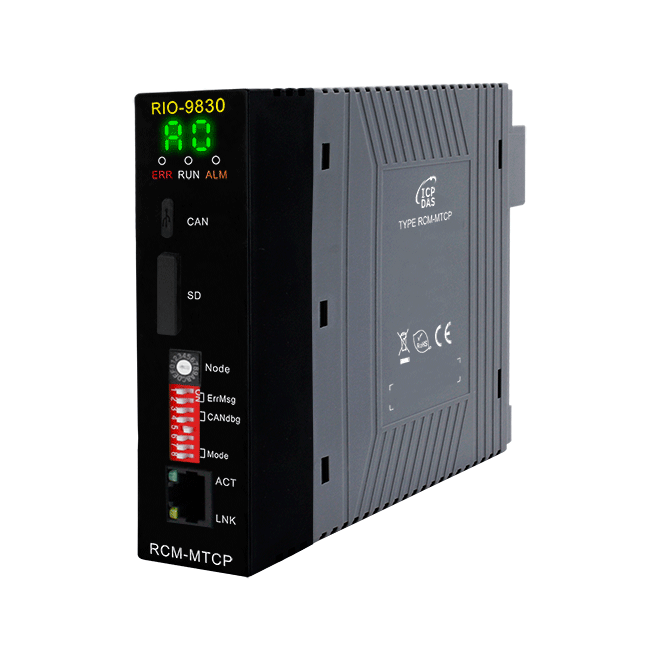

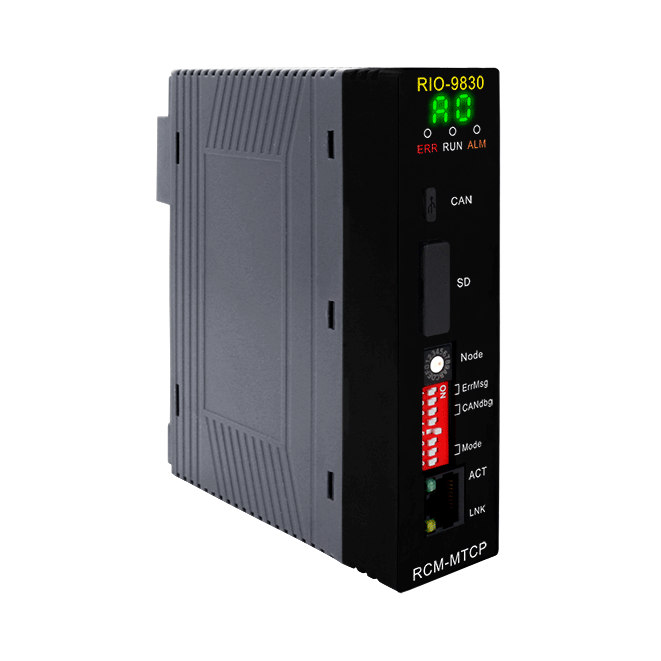

RCM-MTCP
Redundant Communication Module with Modbus/TCP server
Features
- Modbus TCP Server
- Communication redundancy
- Seven-segment display (Exception Code)
- Built-in LED status indicator
- Rotary switch for IP address configuration
- SD card included (exception logging)
Introduction
RCM-MTCP is a very critical communication module in RIO-9830 system with the following features:
- Modbus/TCP Server: Modbus/TCP client can quickly integrate and monitor all I/O information of RIO-9830.

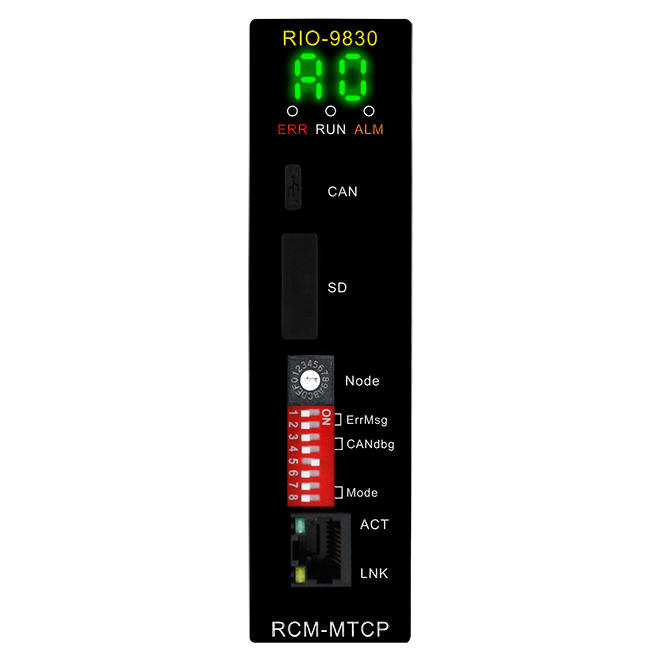

- Seven-segment Display & LEDs: Display all module operation status and network connection.
- Rotary Switch: Manually set the network IP address of RIO-9830 to simplify the network configuration process.
- SD Card：Record all module abnormal information for system troubleshooting and future analysis.
- DIP Switch: Enables the seven-segment display to show the running status of all modules, and also switches the RCM-MTCP module into firmware update mode for easy system maintenance and upgrading.
- USB Connector (CAN)：Used to communicate with the CAN bus of the backplane for debugging. Designed for engineering developers, it is convenient for troubleshooting and debugging.
The 3000 VDC isolation design provides strong interference immunity between the backplane and external signals, making it ideal for use in industrial environments. In addition, the module supports a dual design that allows the RIO-9830 to operate stably even if a single communication module fails, further enhancing system reliability.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Isolation | |
|---|---|
| Intra-module Isolation | 3000 VDC |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | Yes |
| ESD (IEC 61000-4-2) | Yes |
| LED Indicators | |
|---|---|
| Status | 1 Power, 2 Fault, 1 Link/Active/Speed |
| Ethernet | |
|---|---|
| Ports | 10/100BASE-TX (Auto negotiating, Auto MDIX) |
| Protocol | Modbus/TCP server |
| Power | |
|---|---|
| Consumption | 1.7 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 33 x 129 x 130 |
| Environment | |
|---|---|
| Operating Temperature | -25 °C ~ +70 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
