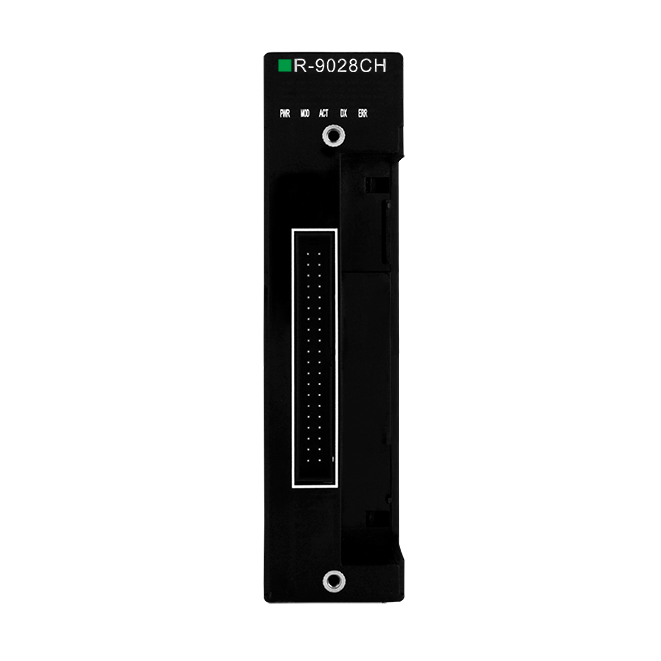

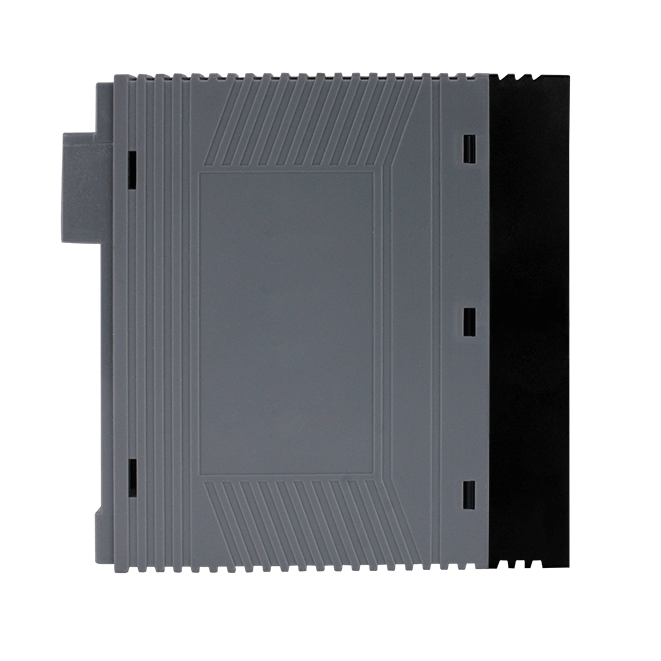

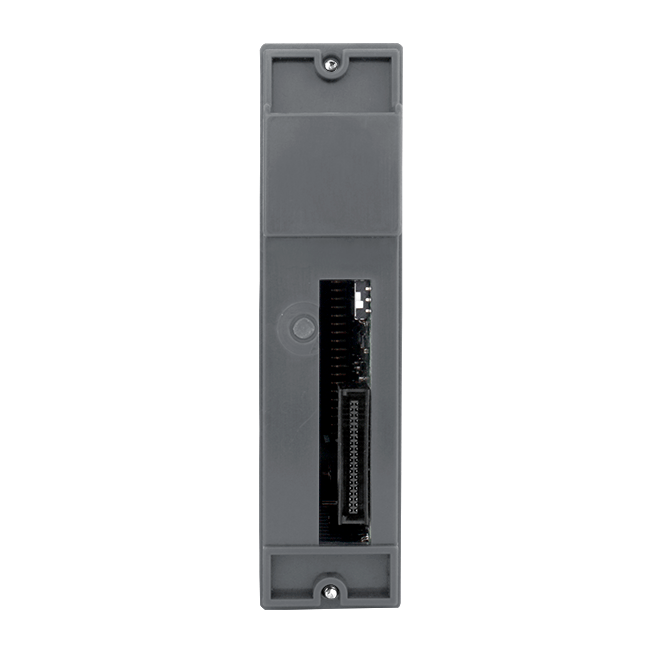

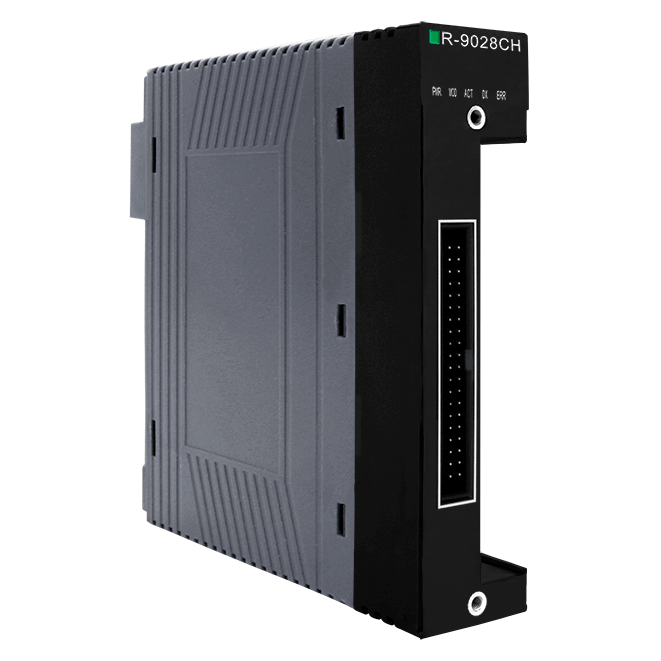

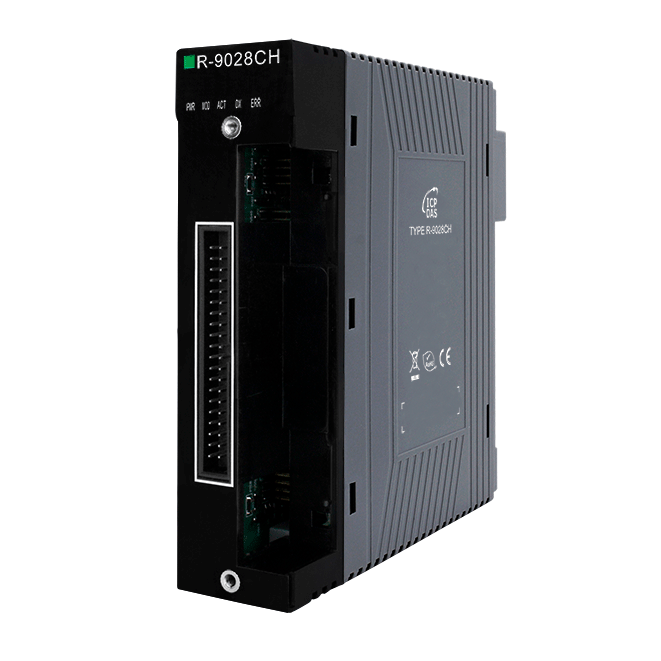

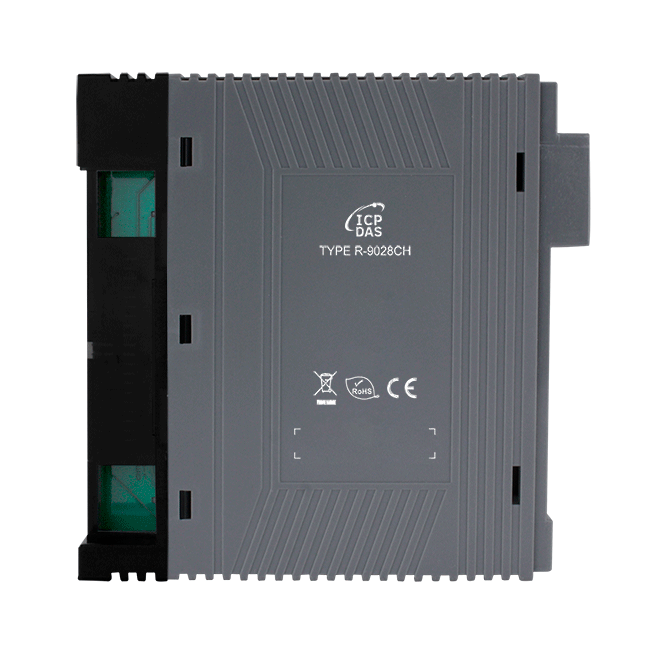

R-9028CH
8-ch isolated Current Output Redundant Module with HART Master Interface
Features
- 8 current output channels
- Power-on value & Safety value
- Built-in HART master interface
- 16 bit D/A Converter
- Channel disconnection detection
- Termination board disconnection detection
- Redundant switching time (< 1 ms)
- Supports automatic detection of output current accuracy
Introduction
The R-9028CH is a high-precision 8-channel, 16-bit channel-isolated current output module with the following features:
- Current Output Range: 4 ~20mA current output (Source Type)
- High Accuracy: Tolerance ±0.05% FSR to ensure accurate current output.
- Power-on value & Safety value: Ensures that the module outputs a predefined current during startup or abnormal conditions.
- Channel Isolation: The electrical signals between channels are completely isolated to ensure that the channels do not interfere with each other.
- Channel Disconnection Detection: Ensure the safety and stability of channel wiring.
- HART Communications: Built-in HART master communication for accessing HART device information.
- LED Indicator: Displays channel abnormal status and module operation status.
The R-9028CH module must be used with a terminal board to connect external signals and supports a terminal board disconnection detection mechanism to ensure wiring stability. It features a 3000 VDC isolation design, providing robust noise immunity between the backplane and external signals, making it highly suitable for industrial environments. Additionally, the module supports a redundancy design, allowing the system to continue stable operation even if a single I/O module fails, further enhancing system reliability.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | Yes |
| ESD (IEC 61000-4-2) | Yes |
| LED Indicators | |
|---|---|
| Status | 1 PWR, 1 MOD, 1 ACT, 1 DX, 1 ERR LED 0~7 for CH Hi/Lo Alarm LED 16~23 for CH Break Line |
| Analog Output | |
|---|---|
| Channels | 8 |
| Type | 4~20 mA (Support ±25% overrange) |
| Range | ±25% (0 ~ 24 mA) |
| Resolution | 16 bit |
| Accuracy | ±0.05% FSR |
| Zero Drift | ±1.5 ppm/℃ |
| Span Drift | ±3 ppm/℃ |
| Response Time | <200 μS |
| Open Wire Detection | Yes |
| Current Load Resistance | < 1K Ω |
| Power-on Value | Yes |
| Safe Value | Yes |
| Isolation | 3000 VDC |
| I/O Expansion | |
|---|---|
| I/O Type | RDB-S09 / RDB-D09 |
| HART | |
|---|---|
| Topology | Master, Monodrop (Point-to-Point) |
| Power | |
|---|---|
| Consumption | 5.6 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 33 x 129 x 130 |
| Environment | |
|---|---|
| Operating Temperature | -25 °C ~ +70 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
