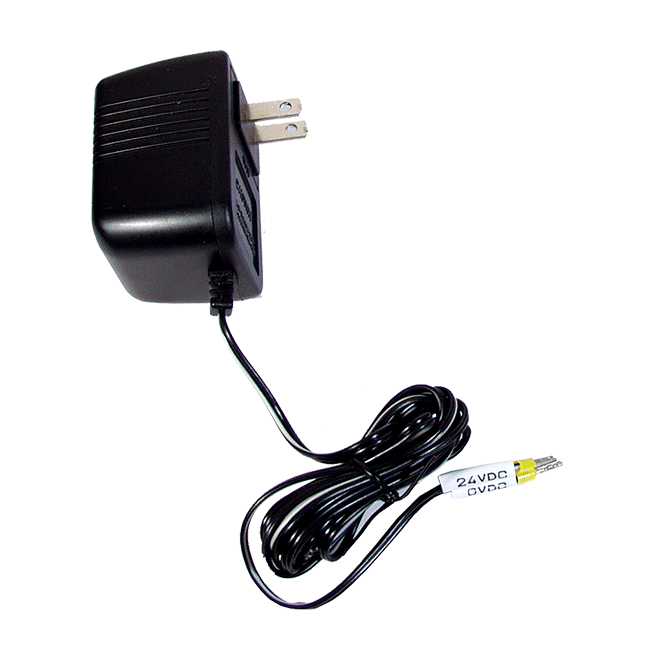

PWR-24/220F
Power Supply, 220 VAC to 24 VDC/0.1 A, 2.4 W, two pins USA plug
Features
- Cost-effective power adaptor
- Input 220 VAC 60 Hz: 30 mA
- Secondary no load:DC voltage: 29.2 V; +/- 5%
- Secondary DC voltage:Load 100 mA: 24.0 V;+/-5% (2.4 AV)
- High protection test:
PRI. TO SEC. & CORE : AC 1240/min
SEC TO CORE : AC 500 V
Introduction
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Input | |
|---|---|
| Voltage Range | 220 VAC |
| Frequency Range | 60 Hz |
| Output | |
|---|---|
| DC Voltage | no load: 29.2V ; +/- 5% load 100mA: 24.0V ;+/-5% (2.4AV) |
| Rated Power | 2.4 W |
| Rated Current | 0.1A |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | (51 * 41 * 63)mm |
| Environment | |
|---|---|
| Operating Temperature | 0 ~ 50 °C |
