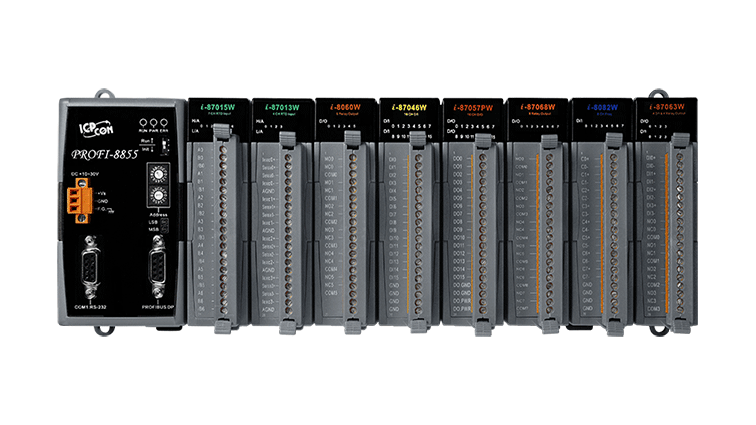

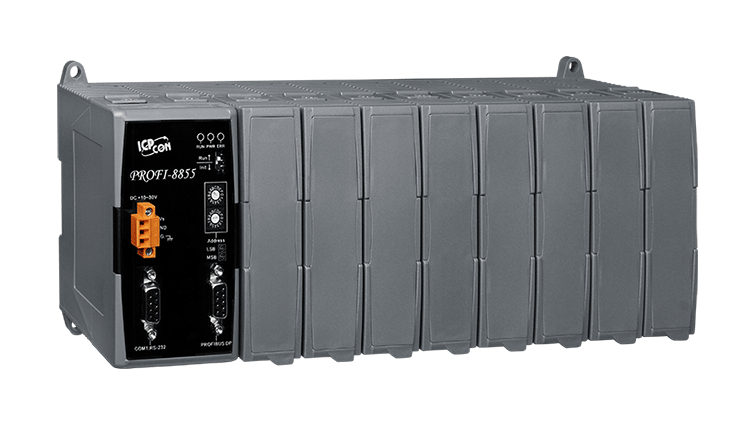

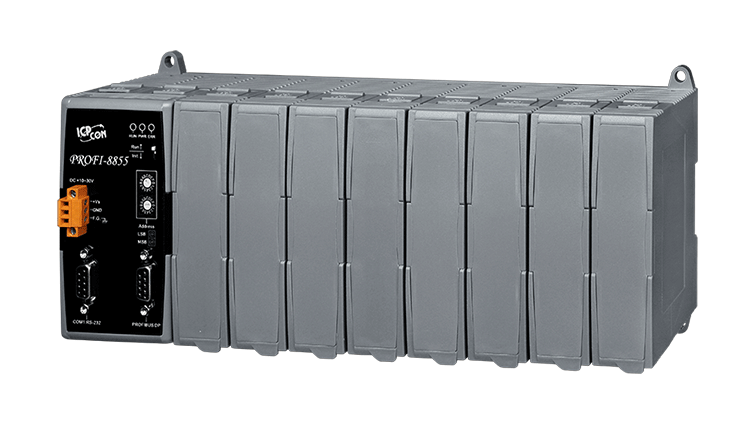

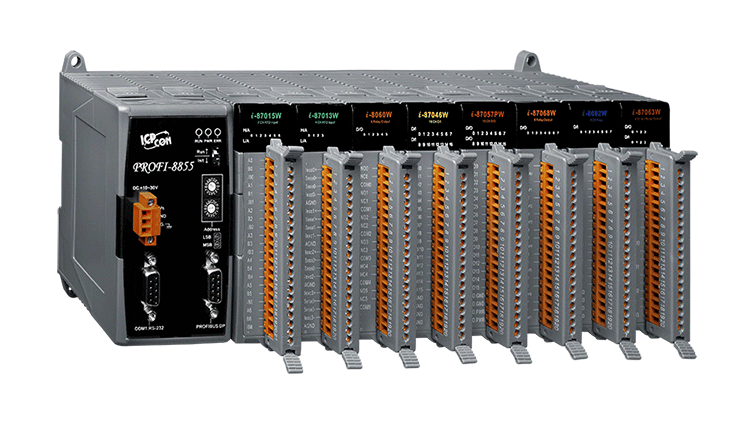

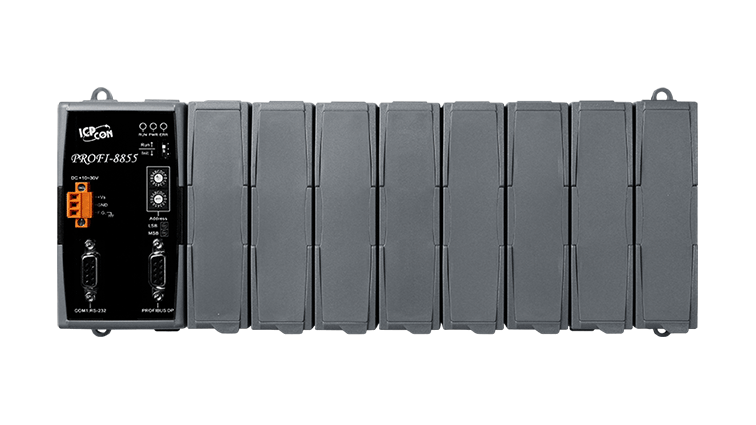

PROFI-8855-G

PROFIBUS Remote I/O Unit with 8 I/O Slots

Features

Protocol & Hierarchy : DP-V0 Slave
Transmission Rate Setting : detected automatically
Address Setting : 0~126 set by Rotary switches
I/O modules Configuration : Configured by GSD file
Supports I/O modules hot-swap : I-87K High Profile series
Network Isolation Protection : High Speed iCoupler
DC Isolation Protection : 3000VDC on PROFIBUS side
4KV ESD Protection : Contact for eash terminal

Introduction

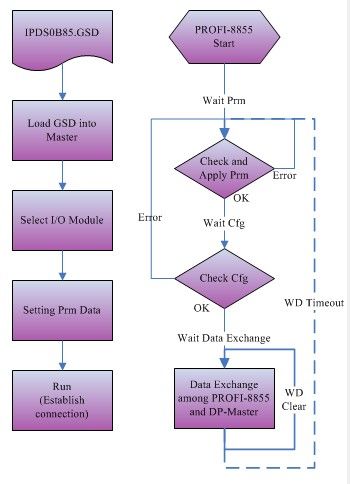

The PROFI-8855 Remote I/O Unit is specially designed for the slave device of PROFIBUS DP protocol. It supports up to 8 slots for ICPDAS I-8k High Profile series, and I-87k High Profiles series I/O modules. In addition, we also provide hot-swap function for I-87k High Profiles series I/O modules. To setup network, users can choose and configure I/O modules by using the GSD file without any other setting tools.

Applications

Industrial Automation
Factory Automation
Process Automation
Etc…

Ordering Information

Available soon

Will be phased out

Phased out

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY
PRODUCT SERIES PROFI-8855-G CR	DESCRIPTIONPROFIBUS Remote I/O Unit with 8 I/O Slots (RoHS)

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

CPU Module
CPU	80186, 80 MHz or compatible
EEPROM	2 KB
Flash	512 KB
SRAM	512 KB

LED Indicators
Status	PWR LED, RUN LED, ERR LED

I/O Expansion
Slots	8

COM Ports
Ports	RS-232 (For updating firmware)

PROFIBUS
Controller	Profichip VPC3+C
Transceiver	ADI ADM2486
Baud Rate	9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M
Isolation	3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic
Protocol	DP-V0
