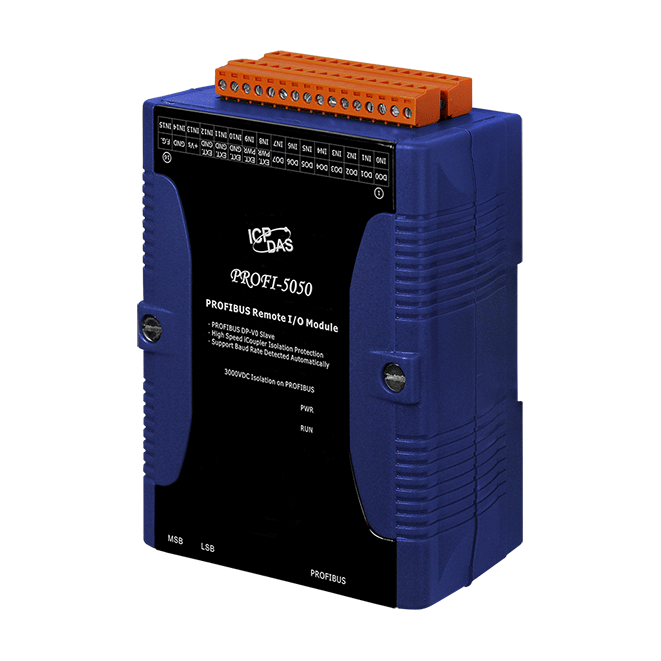

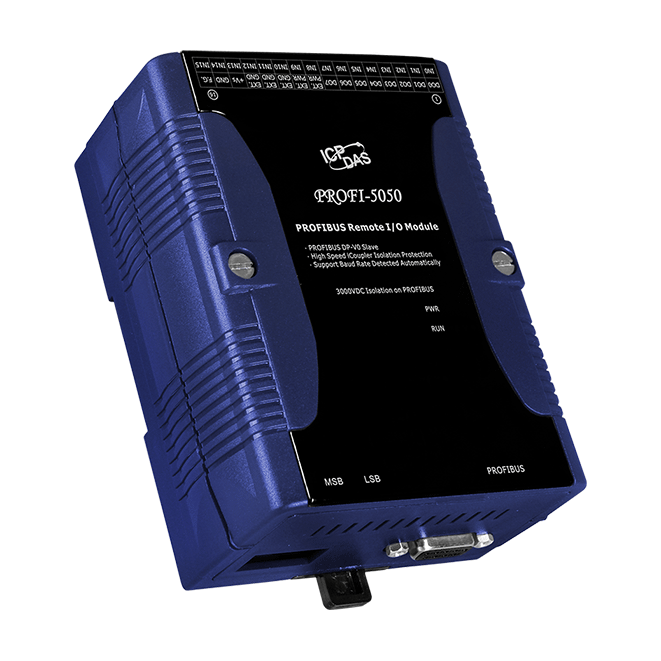

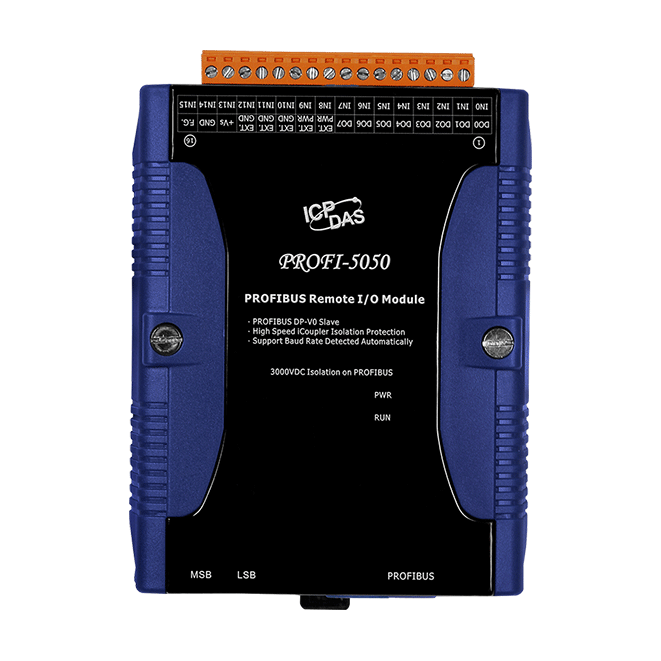

PROFI-5050

PROFIBUS Remote I/O Module (16-channel Non-Isolated Digital Input and 8-channel Non-Isolated Digital Output)
PROFI-5050
PROFI-5050
PROFI-5050
PROFI-5050
PROFI-5050
PROFI-5050
PROFI-5050
PROFI-5050
PROFI-5050
PROFI-5050
PROFI-5050
PROFI-5050

Features

  • Protocol & Hierarchy : DP-V0 Slave
  • Transmission Rate Setting : detected automatically
  • Address Setting : 0~99 set by rotary switches
  • I/O modules Configuration : Configured by GSD file
  • Network Isolation Protection : High Speed iCoupler
  • DC Isolation Protection : 3000 VDC on PROFIBUS side
  • 4KV ESD Protection : Contact for each terminal
CE FCC RoHS WEEE

Introduction

The PROFI-5050 is specially designed for the slave device of PROFIBUS DP protocol. It supports up to 16-channel non-isolated digital input and 8-channel non-isolated digital output. Users can easily to choose and configure it by using the GSD file in any PROFIBUS Configurator.

Applications

  • Industrial Automation
  • Factory Automation
  • Process Automation
  • Etc…

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES PROFI-5050     CR DESCRIPTIONPROFIBUS Remote I/O Module (16-channel Non-Isolated Digital Input and 8-channel Non-Isolated Digital Output) (RoHS)
This combination include other products.

Similar Products

LED Indicators
Status PWR LED, RUN LED
Digital Input
Channels 16 Channels (Sink or Source), Non-Isolated with common ground(or source)
Off Voltage Level: +1V Max. On Voltage Level: +4 ~ +30V
Digital Output
Channels 8 Channels (Sink), Non-Isolated with common ground
Load Voltage: +10 ~ +30V
Maximum Load Current: 30mA w/o Short-Circuit Protection
PROFIBUS
Controller Profichip VPCLS2
Transceiver ADI ADM2486
Baud Rate 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M
Isolation 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic
Protocol DP-V0
Power
Consumption 1 W
Mechanical
Dimensions (mm) 91 x 128 x 52 (W x L x H)
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75℃
Storage Temperature -30 ~ +80 ℃
Humidity 10 ~ 90% RH, Non-condensing
