PROFI-5045

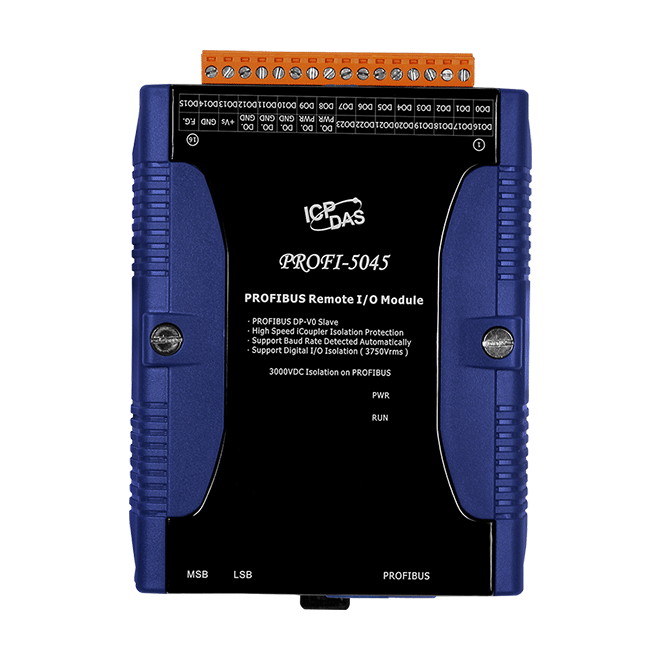

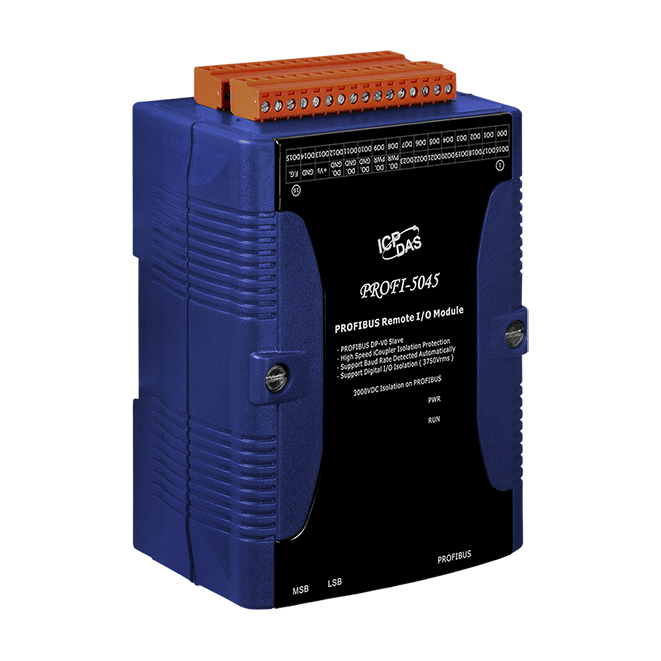

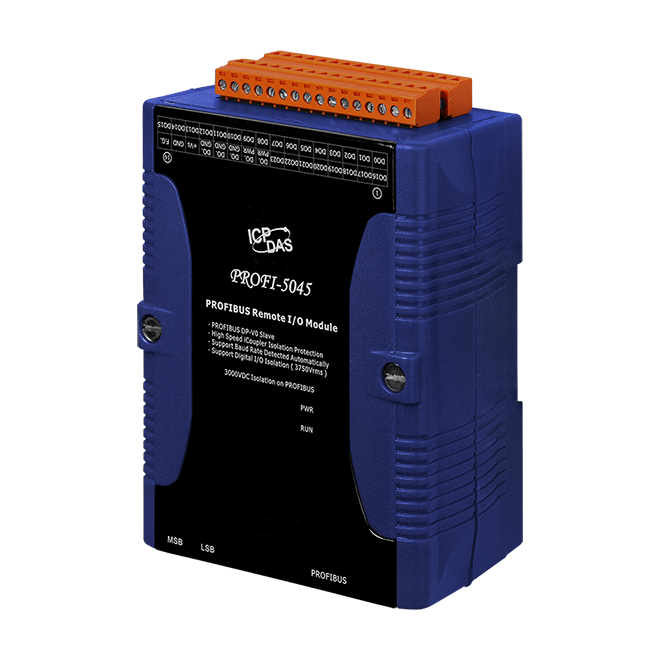

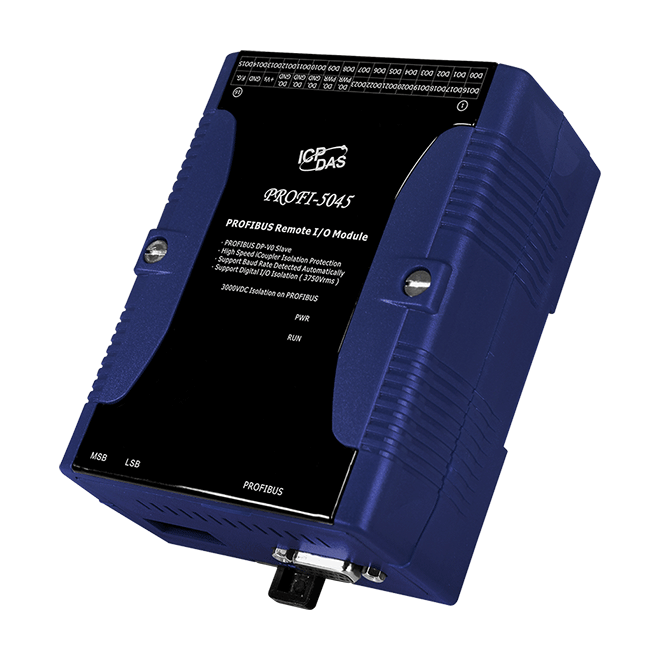

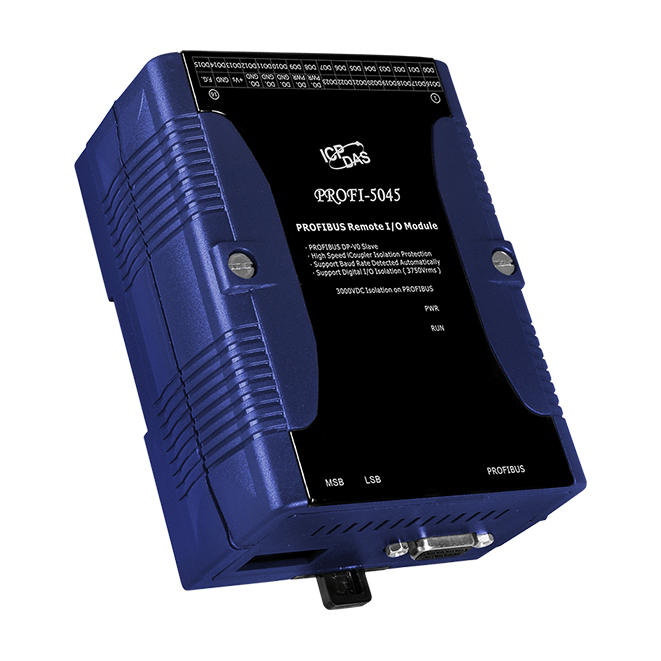

PROFIBUS Remote I/O Module (24-channel Isolated Digital Output)
PROFI-5045
PROFI-5045
PROFI-5045
PROFI-5045
PROFI-5045
PROFI-5045
PROFI-5045
PROFI-5045
PROFI-5045
PROFI-5045
PROFI-5045
PROFI-5045

Features

  • Protocol & Hierarchy : DP-V0 Slave
  • Transmission Rate Setting : detected automatically
  • Address Setting : 0~99 set by rotary switches
  • I/O modules Configuration : Configured by GSD file
  • Network Isolation Protection : High Speed iCoupler
  • DC Isolation Protection : 3000 VDC on PROFIBUS side
  • 4KV ESD Protection : Contact for each terminal
CE FCC RoHS WEEE

Introduction

The PROFI-5045 is specially designed for the slave device of PROFIBUS DP protocol. It supports up to 24-channel isolated digital output with 3750Vrms field to logic isolation. Users can easily to choose and configure it by using the GSD file in any PROFIBUS Configurator.

Applications

  • Industrial Automation
  • Factory Automation
  • Process Automation
  • Etc…

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES PROFI-5045     CR DESCRIPTIONPROFIBUS Remote I/O Module (24-channel Isolated Digital Output) (RoHS)
This combination include other products.

Similar Products

LED Indicators
Status PWR LED, RUN LED
Digital Output
Channels 24 Channels (Sink), Isolated with common ground
Load Voltage: +10 ~ +40V
Maximum Load Current: 650mA w/ Short-Circuit Protection
Isolation Voltage: 3750Vrms
PROFIBUS
Controller Profichip VPCLS2
Transceiver ADI ADM2486
Baud Rate 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M
Isolation 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic
Protocol DP-V0
Power
Consumption 1 W
Mechanical
Dimensions (mm) 91 x 128 x 52 (W x L x H)
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75℃
Storage Temperature -30 ~ +80 ℃
Humidity 10 ~ 90% RH, Non-condensing
