PROFI-5024

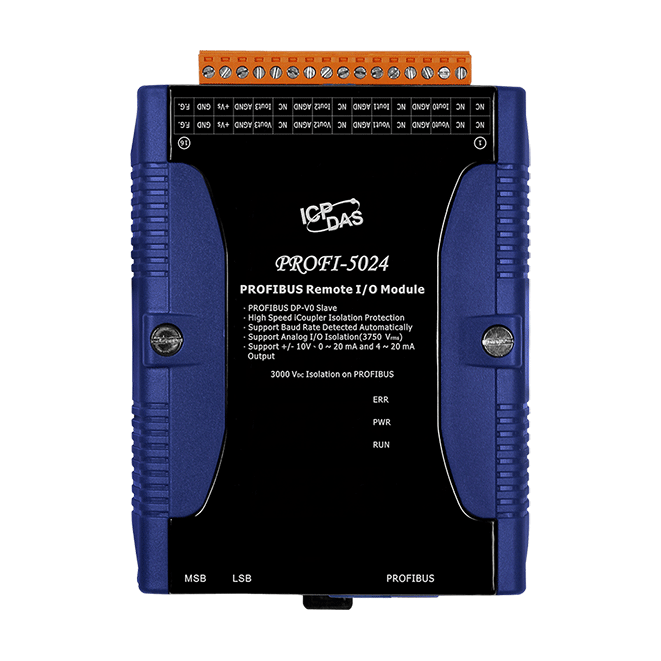

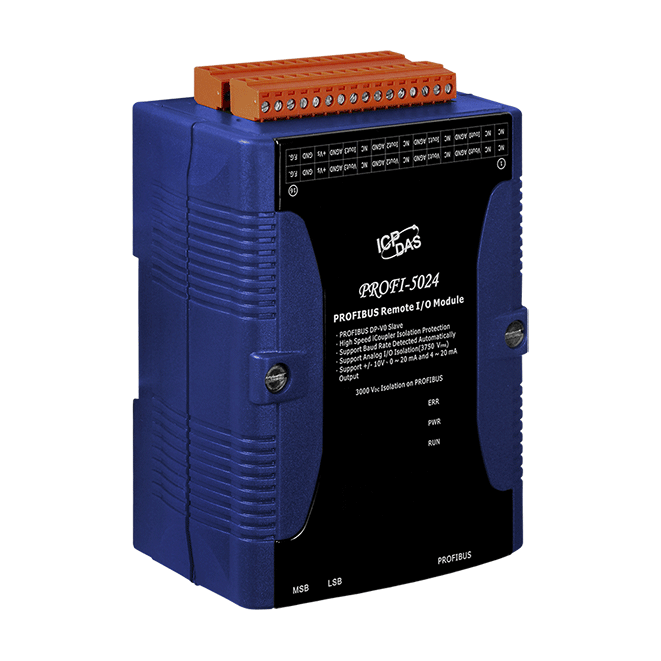

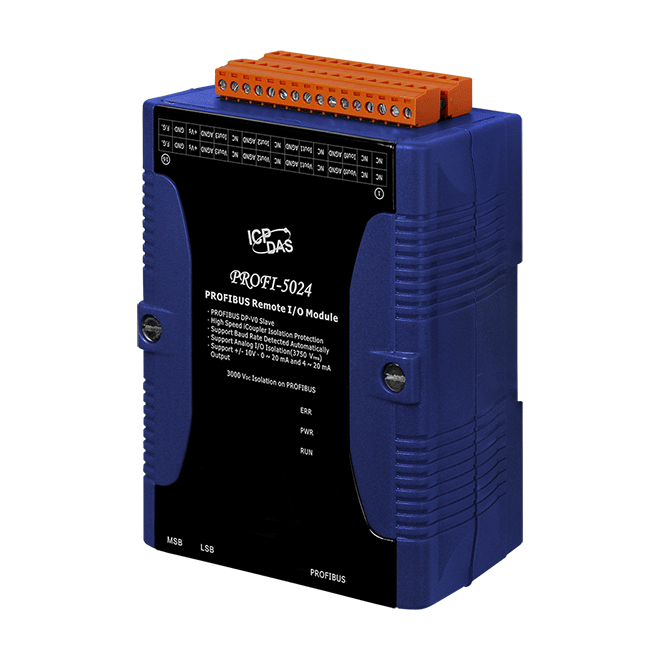

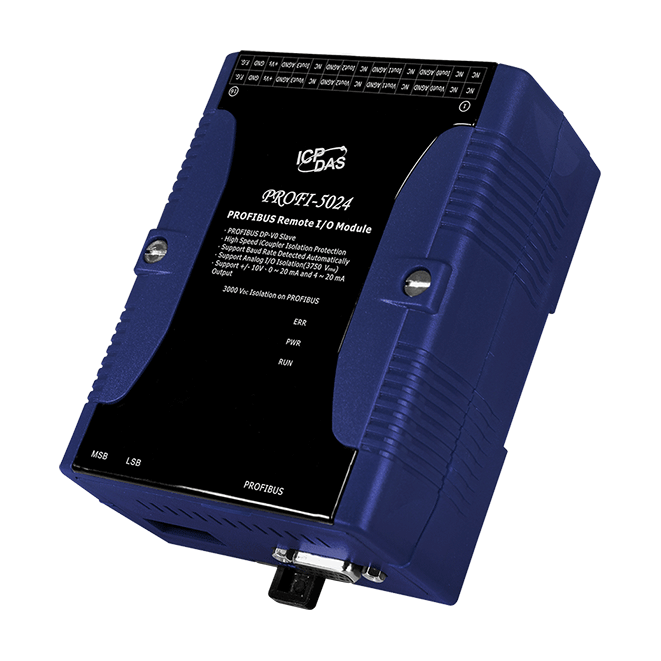

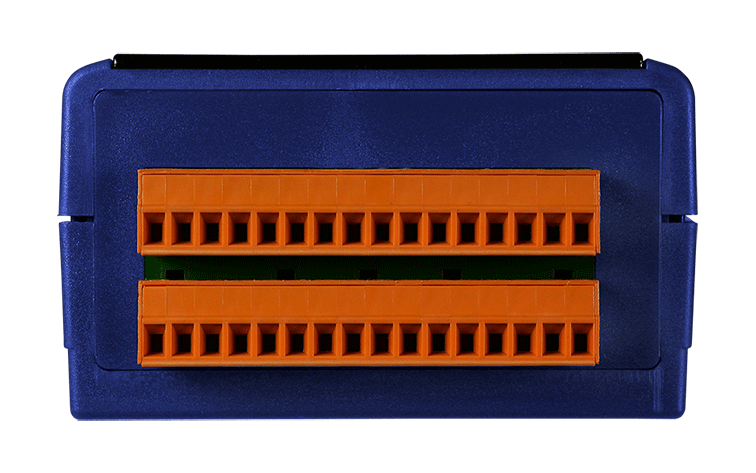

PROFIBUS Remote I/O Module (4-channel Isolated Analog Voltage & Current Output)
PROFI-5024
PROFI-5024
PROFI-5024
PROFI-5024
PROFI-5024
PROFI-5024
PROFI-5024
PROFI-5024
PROFI-5024
PROFI-5024
PROFI-5024
PROFI-5024

Features

• Protocol & Hierarchy : DP-V0 Slave
• Transmission Rate Setting : detected automatically
• Address Setting : Address 0~126 set by rotary switches or SSA Telegram
• I/O modules Configuration : Configured by GSD file
• Network Isolation Protection : High Speed iCoupler
• DC Isolation Protection : 3000 VDC on PROFIBUS side
• 4KV ESD Protection : Contact for each terminal
CE FCC RoHS WEEE

Introduction

The PROFI-5024 is specially designed for the slave device of PROFIBUS DP protocol. It supports up to 4-channel isolated analog voltage/current output with 3750Vrms field to logic isolation. Users can easily to choose and configure it by using the GSD file in any PROFIBUS Configurator.

Applications

  • Industrial Automation
  • Factory Automation
  • Process Automation
  • Etc…

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES PROFI-5024     CR DESCRIPTIONPROFIBUS Remote I/O Module (4-channel Isolated Analog Voltage & Current Output) (RoHS)
This combination include other products.

Similar Products

CPU Module
CPU 80186, 80 MHz or compatible
EEPROM 2 KB
Flash 512 KB
SRAM 512 KB
Watchdog Timer Watchdog IC
CPU built-in
LED Indicators
Status PWR LED, RUN LED, ERR LED
Analog Output
Channels 4 Channel Voltage & Current Output, Isolation Voltage:3750Vrms
Range +/- 10V, 0 ~ 20mA, 4 ~ 20mA
Accuracy +/- 0.1% of FSR for Voltage Output ; +/- 0.2% of FSR for Current Output
PROFIBUS
Controller Siemens SPC3
Transceiver ADI ADM2486
Baud Rate 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M
Isolation 3000 VDC for DC-to-DC, 3750 Vrms for bus-to-logic
Protocol DP-V0
Power
Consumption 4 W
Mechanical
Dimensions (mm) 91 x 128 x 52 (W x L x H)
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75℃
Storage Temperature -30 ~ +80 ℃
Humidity 10 ~ 90% RH, Non-condensing
