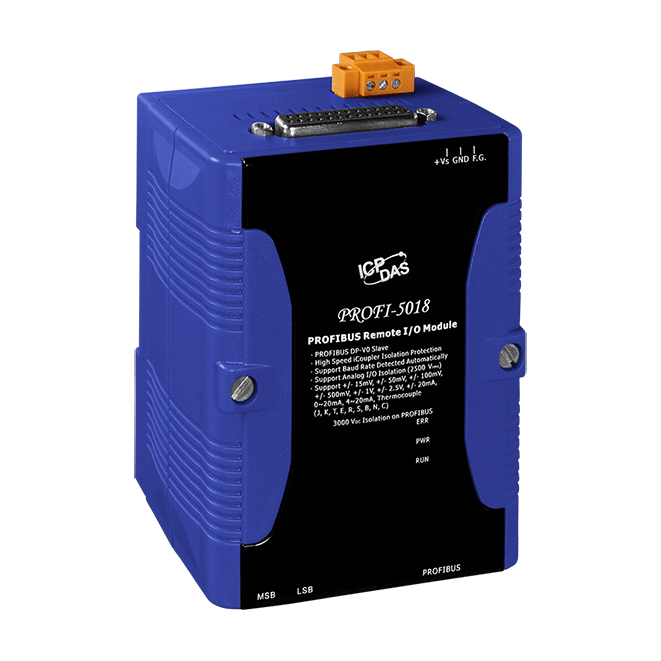

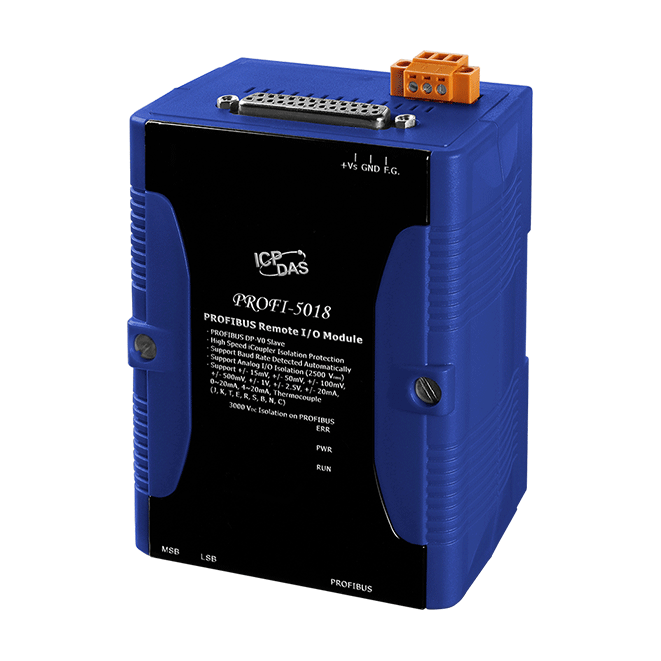

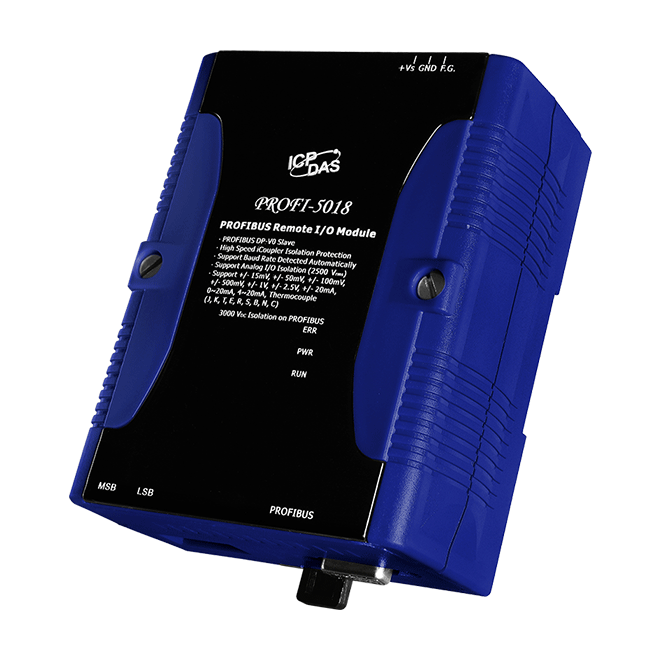

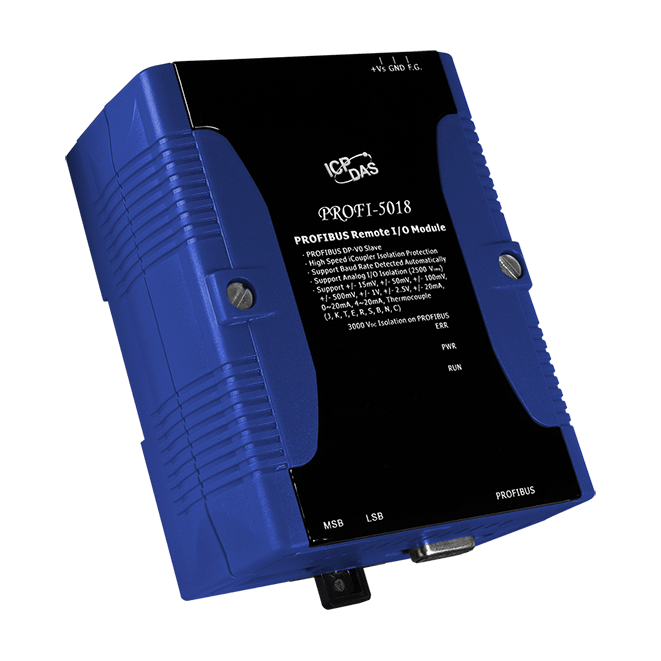

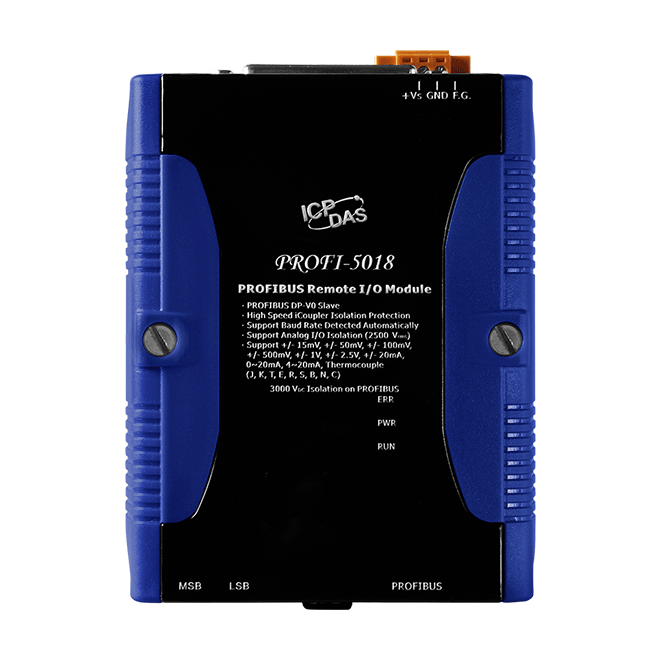

PROFI-5018/S

PROFIBUS Remote I/O Module (10-channel Thermocouple Input with High Voltage Protection)
PROFI-5018/S
PROFI-5018/S
PROFI-5018/S
PROFI-5018/S
PROFI-5018/S
PROFI-5018/S
PROFI-5018/S
PROFI-5018/S
PROFI-5018/S
PROFI-5018/S
PROFI-5018/S
PROFI-5018/S

Features

  • Protocol & Hierarchy : DP-V0 Slave
  • Transmission Rate Setting : detected automatically
  • Address Setting : Address 0~126 set by rotary switches or SSA Telegram
  • I/O modules Configuration : Configured by GSD file
  • Network Isolation Protection : High Speed iCoupler
  • 4KV ESD Protection : Contact for each terminal
CE FCC RoHS WEEE

Introduction

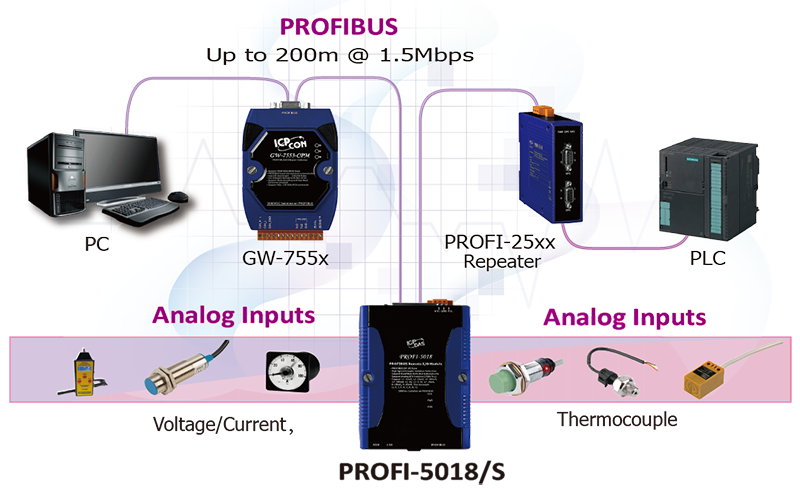

The PROFI-5018 is specially designed for the slave device of PROFIBUS DP protocol. It supports up to 10-channel Thermocouple Input Module with High Voltage Protection. Users can easily to choose and configure it by using the GSD file in any PROFIBUS Configurator.

Applications

  • Industrial Automation
  • Factory Automation
  • Process Automation
  • Etc…

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES PROFI-5018/S     CR DESCRIPTIONPROFIBUS Remote I/O Module (10-channel Thermocouple Input with High Voltage Protection) (RoHS)
Includes a DB-1820 daughter board
This combination include other products.

Similar Products

CPU Module
CPU 80186, 80 MHz or compatible
EEPROM 2 KB
Flash 512 KB
SRAM 512 KB
Watchdog Timer Watchdog IC
CPU built-in
LED Indicators
Status PWR LED, RUN LED, ERR LED
Analog Input
Channels 10 channel differential thermocouple input, Isolation Voltage:2500Vrms
Range +/-15mV, +/-50mV, +/-100mV, +/-500mV, +/-1V, +/-2.5V, +/-20mA, 0~20mA, 4~20mA
(requires optional external 125 Ohms resistor), Thermocouple Type: J, K, T, E, R, S, B, N, C
Accuracy +/- 0.1 of FSR
PROFIBUS
Controller Siemens SPC3
Transceiver DI ADM2486
Baud Rate 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M
Isolation 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic
Protocol DP-V0
Power
Consumption 3.5 W
Mechanical
Dimensions (mm) 91 x 130 x 52 (W x L x H)
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75℃
Storage Temperature -30 ~ +80 ℃
Humidity 10 ~ 90% RH, Non-condensing
Thermocouple Type Temperature Range °C
TYPE J -210 °C ~ +1200 °C
TYPE K -270 °C ~ 1372 °C
TYPE T -270 °C ~ 400 °C
TYPE E -270 °C ~ 1000 °C
TYPE R -50 °C ~ 1765 °C
TYPE S -50 °C ~ 1765 °C
TYPE B 0 °C ~ 1820 °C
TYPE N -270 °C ~ 1300 °C
TYPE C 0 °C ~ 2320 °C
