PROFI-2542

PROFIBUS to Single-mode Fiber Converter
PROFI-2542
PROFI-2542
PROFI-2542
PROFI-2542
PROFI-2542
PROFI-2542
PROFI-2542
PROFI-2542
PROFI-2542
PROFI-2542

Features

  • Support for PROFIBUS DP protocol
  • Detect transmission rate automatically(Max. 12Mbps)
  • Transparency on both side
  • Up to 32 stations per segment on PROFIBUS side
  • Fiber Wave Length: 1310 nm
  • Network Isolation Protection
  • 3000VDC isolation protection on PROFIBUS side
  • 4KV ESD Protection (contact for any terminal)
CE FCC RoHS WEEE

Introduction

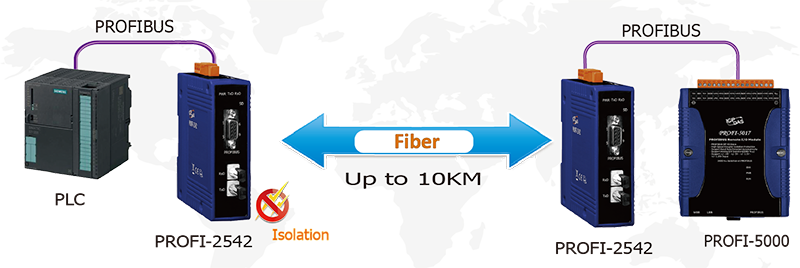

Fiber optic transmission medium is a good material to protect data transmission from EMI/RFI interference and has been used in harsh environment extensively. On the other hand, PROFIBUS is famous in industrial application. In order to solve the problem between different transmission medium, PROFI-2542-SC is specially designed for converting PROFIBUS signal to single mode fiber optic cables. The fiber length between two PROFI-2542-SCs can be up to 10km. PROFI-2542-SC is the economic solution for applications which require protecting the data transmission from electrical exposure, surges, lightning or chemical corrosion.

Applications

  • Industrial Automation
  • Factory Automation
  • Process Automation
  • Etc…

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES PROFI-2542     CR DESCRIPTIONPROFIBUS to Single-mode Fiber Converter (ST type) (RoHS)
This combination include other products.

Similar Products

LED Indicators
Status PWR LED, TxD LED, RxD LED
Fiber
Fiber Cable 9 / 125 μm recommended
Wavelength 1310 nm
PROFIBUS
Transceiver ADI ADM2486
Baud Rate 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M set by DIP switch
Isolation 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic
Power
Consumption 1 W
Mechanical
Dimensions (mm) 33.0 x 126.8 x 104.5 (W x L x H)
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75℃
Storage Temperature -30 ~ +85 ℃
Humidity 5 ~ 95% RH, Non-condensing
