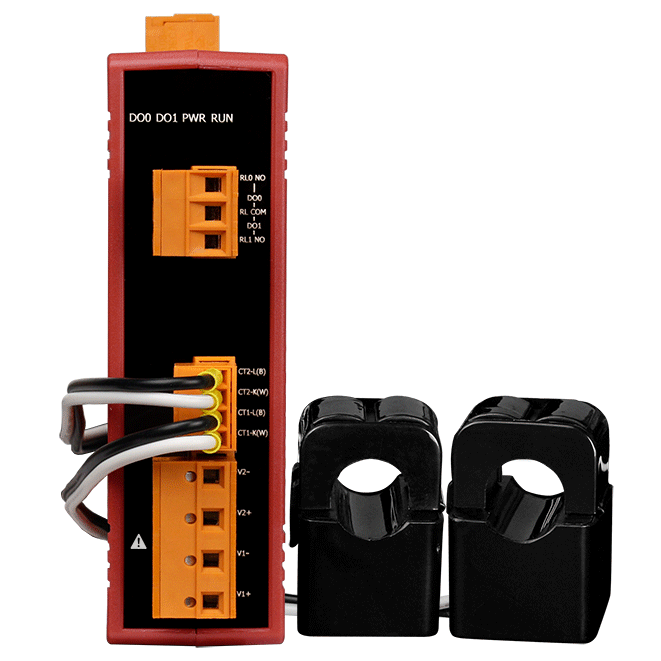

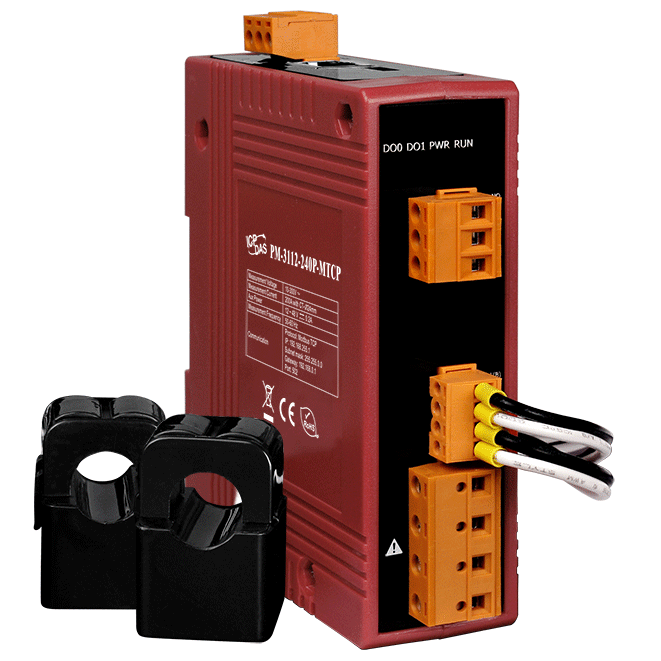

PM-3112-MTCP series

Single-phase Smart Power Meter, Modbus TCP Series

Features

• True RMS Power Measurements
• Single-phase 2 Loops Energy Analysis for 1P2W
• Two Independent Loops Reference Voltages
• Current Measurements Up to 200 A with Different CT Ratio
• Voltage Measurements Up to 300 V
• Clip-on CT for Easy Installation
• W Accuracy Better than 0.5% (PF=1)
• Supports 2 Power Relay Output (Form A)
• IEC 61010-1 and EN 61010-1

Introduction

ICP DAS brings the most powerful, cost-effective, advanced Smart Power Meters PM-3112 series that gives you access to real-time electric usage for single-phase power measurement. With its high accuracy (< 0.5%, PF=1 ), the PM-3112 series can be applied to both low voltage primary side and/or medium/high voltage secondary side and enables the users to obtain reliable and accurate energy consumption readings from the monitored equipments in real time under operation. These compact size and cost-effective power meters are equipped with revolutionary wired clip-on CT (various types, support input current up to 200 A). It operates over a wide input voltages range 10 ~ 300 VAC which allows worldwide compatibility. And with 2 channels relay outputs, it can be linked with sirens or lightings for alarm messages.

Applications

• Generator monitoring
• Switchgear distribution systems
• Energy Management

Ordering Information

Available soon

Will be phased out

Phased out

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY
PRODUCT SERIES PM-3112-100-MTCP CR	DESCRIPTIONModbus TCP, 2 loops single-phase Power Meter; includes 60A CT (Inside diameter 10 mm; wire lead 1.8 m) x 2 (RoHS)
PRODUCT SERIES PM-3112-160-MTCP CR	DESCRIPTIONModbus TCP, 2 loops single-phase Power Meter; includes 100A CT (Inside diameter 16 mm; wire lead 1.8 m) x 2 (RoHS)
PRODUCT SERIES PM-3112-240-MTCP CR	DESCRIPTIONModbus TCP, 2 loops single-phase Power Meter; includes 200A CT (Inside diameter 24 mm; wire lead 1.8 m) x 2 (RoHS)
PRODUCT SERIES PM-3112-240P-MTCP CR	DESCRIPTIONModbus TCP, 2 loops single-phase Power Meter; includes 200A CT (Inside diameter 24 mm; wire lead 4 m) x 2 (RoHS)

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

AC Power Measurement
Wiring	1P2W-1CT
Loops	1-phase: 2
Input Voltage	10 ~ 300 V
Input Current	PM-3112-100-MTCP: CTØ10 mm (0.05 A ~ 60 A) PM-3112-160-MTCP: CTØ16 mm (0.1 A ~ 100 A) PM-3112-240-MTCP: CTØ24 mm (0.15 A ~ 200 A) PM-3112-240P-MTCP: CTØ24 mm (0.15 A ~ 200 A)
Input Frequency	50/60 Hz
W Accuracy	Better than 0.5% (PF=1)
Power Parameter Measurement	True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency
Data Update Rate	1 Second

Relay Output
Channels	2
Type	Power Relay
Contact Rating	Form A: 5 A @ 250 VAC 5 A @ 30 VDC

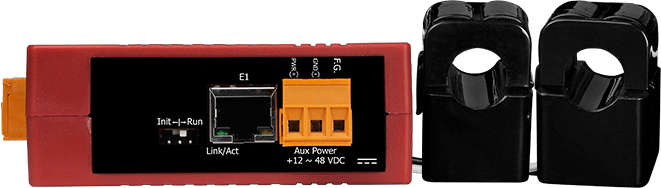

Ethernet
Ports	1x RJ45, 10/100 Base-TX
Protocol	Modbus TCP

Power
Input Range	+12 ~ 48 VDC
Consumption	2W

Mechanical
Casing	Plastic
Dimensions (mm)	33 x 127 x 100 (W x L x H)
Installation	DIN-Rail Mounting

Environment
Operating Temperature	-20 ~ +70 °C
Storage Temperature	-25 ~ +80 °C
Humidity	10 ~ 90% RH, Non-condensing
