PISO-P32S32WU

Universal PCI, 32-ch Optical Isolated DI and 32-ch Open Collector Isolated (Sink, NPN) DO Board

Features

Universal PCI (3.3 V/5 V) Interface
Supports Card ID (SMD Switch)
3750 Vrms Photo-isolation Protection
Input Range up to 30 VDC
32 Optically-isolated Digital Input Channels
32 Optically-isolated Digital Output Channels (Sink, NPN)
- 100 mA (24 Channels) Low Driving
- 500 mA (8 Channels) High Driving

Introduction

PISO-P32S32WU has 32 channels of Isolated DI and 32 channels of Isolated open-collector output board (8-channel for 500 mA and 24-channel for 100 mA current sinking output, NPN), arranged into four isolated banks. Each input channel use a photo-coupler to isolate the card and computer from external signal. Each DO offers a NPN transistor and integral suppression diode for inductive load. PISO-P32S32WU requires external power to drive the D/I and D/O ports and supports Card ID (jumper) features for multi-board identification and supports both 5 V and 3.3 V PCI slot.

This interface board is easily installed in any PC. The board interface to field logic signals, eliminating ground-loop problems and isolating the host computer from damaging voltages. PISO-P32S32WU has one 37-pin D-Sub connector and one 40-pin male header. The 40-pin to DB-37 flat cable is used to fix with the case. The user can connect the digital signal through the second D-Sub connector. Each D-Sub connector contains 16 input channels and 16 output channels.

The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

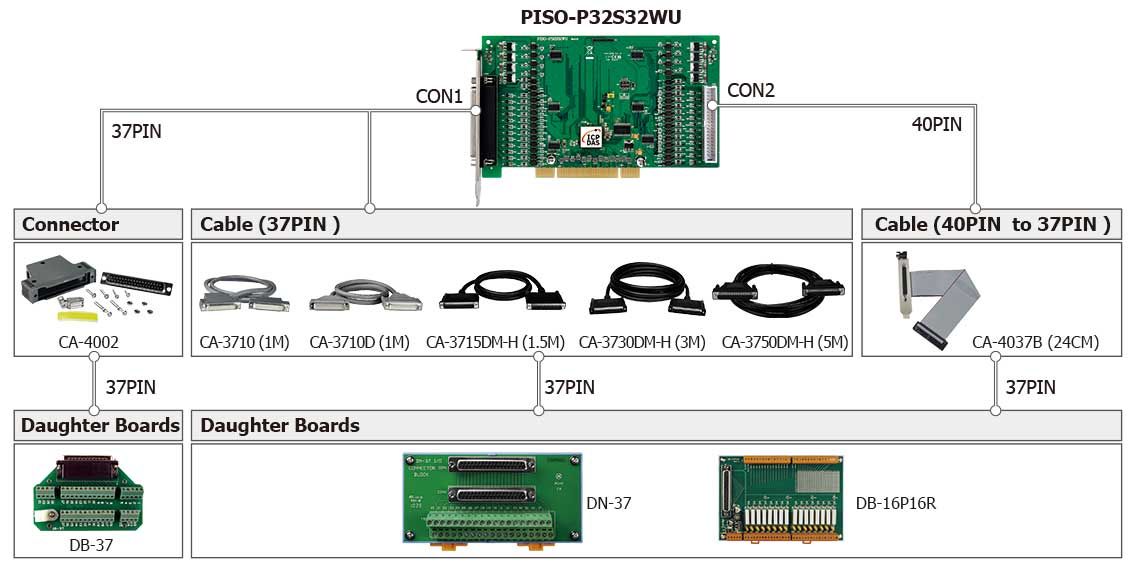

Accessories

Applications

Factory automation
Product test
Laboratory automation

Ordering Information

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY
PRODUCT SERIES PISO-P32S32WU CR	DESCRIPTIONUniversal PCI, 32-ch Optical Isolated DI and 32-ch Open Collector Isolated (Sink, NPN) DO Board (RoHS) Includes one CA-4037B cable and two CA-4002 D-Sub connectors

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

Hardware
Card ID	Yes (4-bit) for version 1.5 or above
Connector	Female DB37 x 1 40-pin box header x 1

Digital Input
Channels	32
Type	Wet Contact Photocoupler
Sink/Source (NPN/PNP)	Sink/Source
ON Voltage Level	9 ~ 24 V
OFF Voltage Level	0 ~ 1 V
Response Speed	4 kHz (Typical)
Trigger Mode	Static Update
Isolation	3750 Vrms (Using external power)

Digital Output
Channels	32
Type	Open Collector
Sink/Source (NPN/PNP)	Sink (NPN)
Operation Mode	Static Update
Load Current	500 mA for one high driving channel @ 100% duty 500 mA for all high driving channels @ 100% duty (The GND pins all must be connected with GND of External Power) 100 mA for one low driving channel @ 100% duty 100 mA for all low driving channels @ 100% duty (The GND pins all must be connected with GND of External Power)
Response Speed	4 kHz (Typical)
Isolation	3750 Vrms (Using external power)
