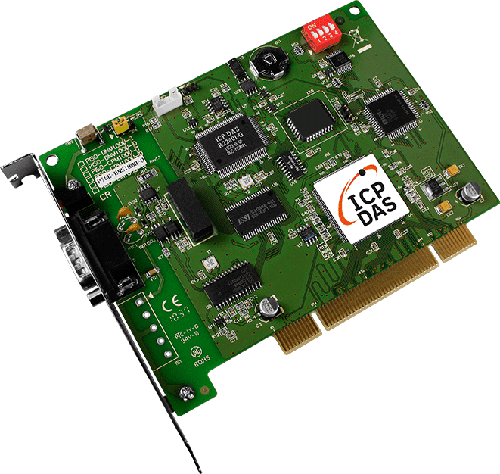

PISO-DNS100U-D

Phased out

EOL Notification

1 Port Intelligent DeviceNet Multi-Slave Univer PCI Board

Features

• DeviceNet Version : DeviceNet Specification Volume I & II, Release 2.0
• Number of Slave Nodes : 10(Max) nodes inside the board
• Porgrammable baud rate : 125K, 250K, 500K
• Support programmable MAC ID.
• Support Message Groups : Group 2 only Server
• UCMM : Not Support
• I/O Operating Modes : Poll, Bit-Strobe, Change of State/ Cyclic
• No. of Fragment I/O : up to 512 bytes of input & 512 bytes output data

Introduction

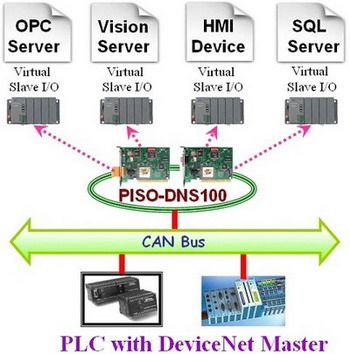

The PISO-DNS100 has completed DeviceNet slave function according to DeviceNet Group 2 only server. With the built-in x86 CPU, this card can be applied in high transmission applications. The amazing function is that 10 slave nodes are implemented inside the PISO-DNS100. It supports up to 512 bytes of input & 512 bytes output data. DeviceNet Baud rate of 125-500 kbits/s & MACID can be set via utility setting. The PCI card also has an optically isolated DeviceNet interface.

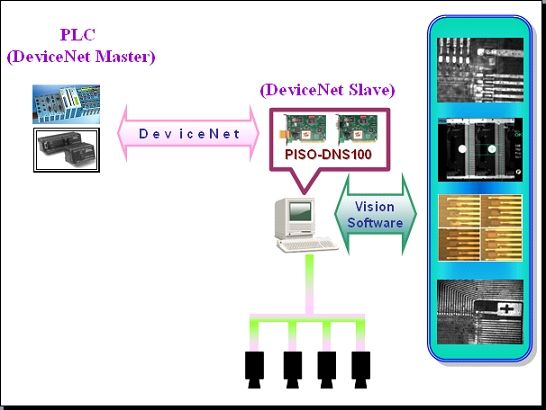

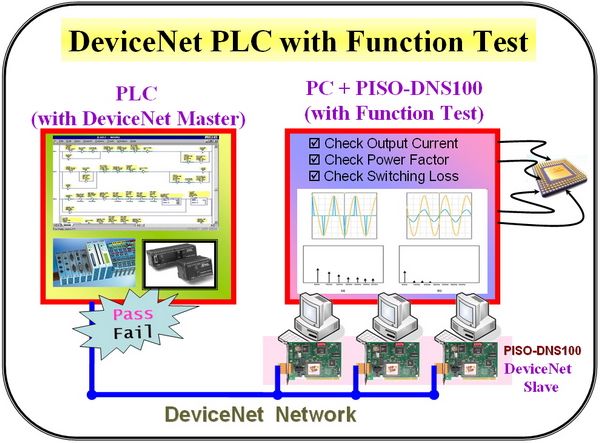

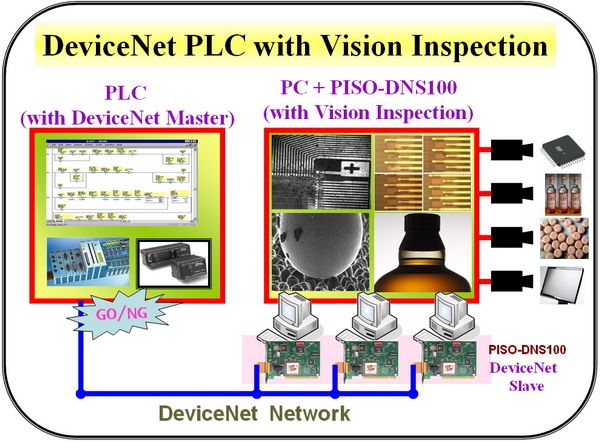

Applications

• Industrial Machinery
• Building Automation
• Medical
• Maritime
• Restaurant Appliances
• Laboratory Equipment & Research

Ordering Information

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY
PRODUCT SERIES PISO-DNS100U-D CR	DESCRIPTION1 Port Intelligent DeviceNet Multi-Slave Universal PCI Board (9-pin D-sub Connector) (RoHS)

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

Software
Driver	Windows XP/7/8/10 (32-bit/64-bit OS)
SDK	VB 6.0, VC++ 6.0, BCB 6.0

LED Indicators
Status	Status LED, ERR LED

PC Bus
Type	Universal PCI supports both 5 V and 3.3 V PCI bus
Board No.	By DIP switch

DeviceNet
Controller	NXP SJA1000T with 16 MHz clock Microprocessor inside with 80186 80MHz
Ports	1
Baud Rate	125 k, 250 k, 500 k
Isolation	3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor	Jumper for 120 Ω terminal resistor
Protocol	DeviceNet Volumn I ver2.0, Volumn II ver2.0
CAN Specification	ISO-11898-2, CAN 2.0A
