PISO-CM200U-D

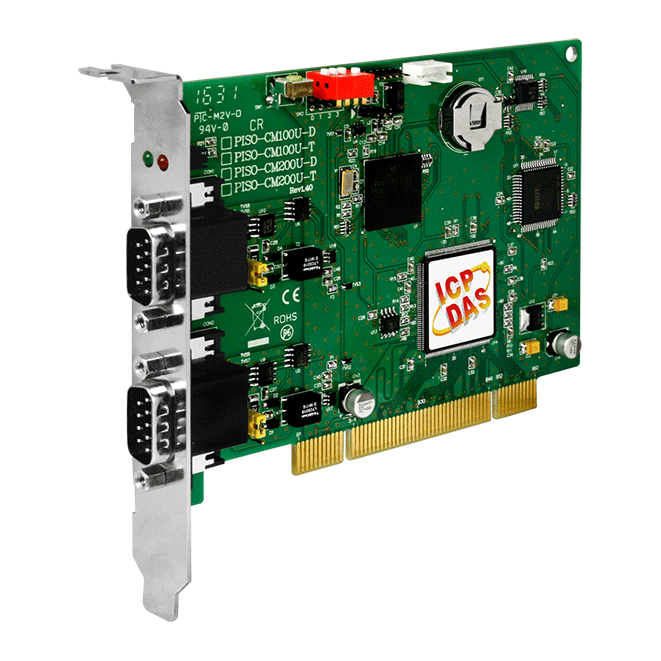

2-port CAN Programmable Universal PCI Card (9-pin D-Sub Connector)
PISO-CM200U-D
PISO-CM200U-D
PISO-CM200U-D
PISO-CM200U-D

Features

  • Embedded 32-bit microprocessor
  • NXP 82C250 CAN transceiver
  • Bosch C_CAN controller
  • Supports both CAN 2.0A and CAN 2.0B specifications
  • Storage Timestamp with a precision of at least ±1 ms
  • Board number selectable via DIP switch
  • Dual port RAM communication mechanism
  • Embedded RTC (real time clock)
  • Transmission/reception buffer for up to 256 CAN messages
  • Allows a maximum of 5 sets of cyclic transmission messages
  • Cyclic transmission message precision: ±1ms
  • Easy to update firmware
CE UKCA FCC RoHS WEEE

Introduction

A Controller Area Network (CAN) is a serial communication system based on the CAN protocol that enables efficient distributed real-time control combined with a very high level of security. The CAN protocol is especially suited for structuring "intelligent" device networks, as well as for building automatic control environments that contain sensors and actuators within a system or sub-system. In a CAN network, there is no addressing of subscribers or stations in the conventional sense, but instead prioritized messages are transmitted.

The PISO-CM200U is a very powerful and economic solution for an active CAN board, containing two CAN channels that cover a wide range of CAN applications. The 32-bit on-board microcontroller allows the filtering, pre-processing, and storage of CAN messages (with a timestamp), as well as real-time transmission of CAN messages, among many other features.

An added benefit is that custom CAN Bus applications can be developed using the PISO-CM200U library. When the PISO-CM200U is active, data exchange between the custom application and the CAN Bus firmware is performed via the memory mapping method on the PISO-CM200U.

Applications

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES PISO-CM200U-D     CR DESCRIPTION2-port Programmable CAN Universal PCI Card with 9-Pin D-sub Connector (RoHS)
This combination include other products.

Similar Products

Software
Driver Windows XP/7/8.1/10 (32-bit/64-bit) OS
SDK C#.Net, VB.Net, VC++.Net
LED Indicators
Status 1 x CAN status
1 x Operating mode
PC Bus
Type Universal PCI, 5 V, 33 MHz, 32-bit, plug and play
Board No. Configurable via DIP switch
CAN
Controller Bosch C_CAN
Ports 2
Baud Rate 10 k ~ 1 M bps
Isolation 3000 VDC for DC-to-DC, 3000 Vrms for photo-couple
Terminal Resistor Jumper for 120 Ω terminal resistor
Power
Consumption 800 mA @ 5 V
Mechanical
Dimensions (mm) 150 x 22 x 121 (W x L x H)
Environment
Operating Temperature 0 ~ +60 °C
Storage Temperature -20 ~ +70 °C
Humidity 5 ~ 85% RH, Non-condensing

Hardware Architecture


Software Architecture
