PISO-CAN800U-D
8-Port Card Universal PCI Card
Features
- Eight CAN bus communication ports
- Compatible with CAN specification 2.0 parts A and B
- On-board optical isolation protection
- Programmable transfer rate up to 1 Mbps
- 2500 Vrms photo couple isolation on the CAN bus
- Jumper select 120Ω terminal resistor for each port
- Direct memory mapping to the CAN controllers
- 33MHz 32bit 5V PCI bus (V2.1) plug and play

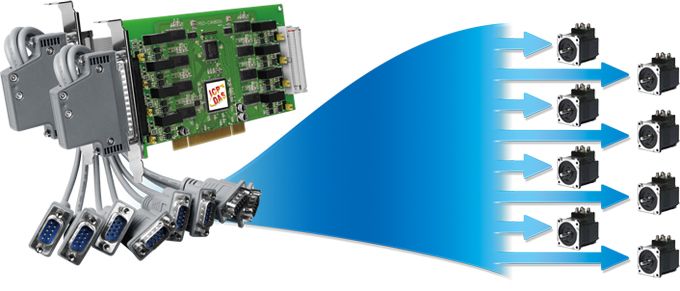

Introduction
The CAN (Controller Area Network) is a serial communication protocol, and efficiently supports distributed real-time control with a very high level of security. It is an especially suit for networking "intelligent" devices as well as sensors and actuators within a system or sub-system. In CAN networks, there is no addressing of subscribers or stations in the conventional sense, but instead prioritized messages are transmitted. As standalone CAN controller, PISO-CAN800U-D can represent an economic solution of an active CAN board. It has eight independent CAN bus communication ports and has the ability to cover a wide range of CAN applications. Besides, PISO-CAN800U-D uses the new CAN controller Phillips SJA1000T and transceiver TJA1042, which provide bus arbitration, error detection with auto correction and re-transmission function. It can be installed in a 5V PCI slot and supported truly “Plug & play”.
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
Similar Products
| Software | |
|---|---|
| Driver | Windows XP/7/8/10 (32-bit/64-bit OS), Linux 2.6.x ~ 5.4.0, LabView, InduSoft |
| SDK | VB 6.0, VC++ 6.0, BCB 6.0, Delphi 4.0, C#.Net, VB.Net |
| PC Bus | |
|---|---|
| Type | Universal PCI, 3.3 V and 5 V, 33 MHz, 32-bit, plug and play |
| CAN | |
|---|---|
| Controller | NXP SJA1000T with 16 MHz clock |
| Ports | 8 |
| Baud Rate | 10 k ~ 1 M bps |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Jumper for 120 Ω terminal resistor |
| Power | |
|---|---|
| Consumption | 800 mA @ 5 V |
| Mechanical | |
|---|---|
| Dimensions (mm) | 193 x 93 x 22 (W x L x D) |
| Environment | |
|---|---|
| Operating Temperature | 0 ~ +60 °C |
| Storage Temperature | -20 ~ +70 °C |
| Humidity | 5 ~ 85% RH, Non-condensing |
- Can be a CAN system monitor tool with CAN cards
- It is a good tool to test CAN system
- Send/Receive/Record CAN messages
- Provide cyclic transmission function
- Record the CAN messages with filtered ID and time stamp
- Support: 2000/XP/7
Hardware Architecture
Software Architecture
Performance Test
Platform:CPU：Intel(R) Core(TM) i3 CPU 550 @ 3.20GHz
RAM：1.8GB
| Baud rate (bps) | 1-CAN Port | 2-CAN Port | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2.0A, 8 bytes data | 2.0B, 8 bytes data | 2.0A, 8 bytes data | 2.0B, 8 bytes data | |||||||||
| TX (FPS) | RX (FPS) | TX/RX (Times/Sec) | TX (FPS) | RX (FPS) | TX/RX (Times/Sec) | TX (FPS) | RX (FPS) | TX/RX (Times/Sec) | TX (FPS) | RX (FPS) | TX/RX (Times/Sec) | |
| 10K | 88 | 88 | 43 | 73 | 73 | 37 | 44 | 88 | 43 | 37 | 73 | 37 |
| 20K | 176 | 176 | 87 | 146 | 146 | 75 | 88 | 176 | 87 | 73 | 146 | 75 |
| 50K | 440 | 441 | 218 | 365 | 367 | 188 | 218 | 441 | 213 | 181 | 367 | 184 |
| 125K | 1088 | 1104 | 537 | 899 | 917 | 461 | 523 | 1104 | 509 | 436 | 917 | 432 |
| 250K | 2100 | 2208 | 1025 | 1745 | 1834 | 882 | 984 | 2208 | 935 | 832 | 1834 | 804 |
| 500K | 3975 | 4414 | 1856 | 3305 | 3668 | 1612 | 1739 | 4414 | 1769 | 1528 | 3667 | 1492 |
| 800K | 5930 | 7008 | 2787 | 4950 | 5830 | 2355 | 2501 | 6701 | 2609 | 2096 | 5825 | 2226 |
| 1M | 7129 | 8722 | 3216 | 5926 | 7257 | 2820 | 2879 | 8716 | 3023 | 2506 | 7259 | 2650 |
| Baud rate (bps) | 4-CAN Port | 8-CAN Port | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2.0A, 8 bytes data | 2.0B, 8 bytes data | 2.0A, 8 bytes data | 2.0B, 8 bytes data | |||||||||
| TX (FPS) | RX (FPS) | TX/RX (Times/Sec) | TX (FPS) | RX (FPS) | TX/RX (Times/Sec) | TX (FPS) | RX (FPS) | TX/RX (Times/Sec) | TX (FPS) | RX (FPS) | TX/RX (Times/Sec) | |
| 10K | 22 | 88 | 22 | 18 | 73 | 19 | 11 | 88 | 11 | 9 | 73 | 9 |
| 20K | 44 | 176 | 44 | 36 | 146 | 38 | 22 | 176 | 22 | 18 | 146 | 19 |
| 50K | 109 | 441 | 108 | 91 | 366 | 93 | 54 | 441 | 54 | 45 | 367 | 46 |
| 125K | 265 | 1103 | 257 | 221 | 916 | 222 | 132 | 1103 | 129 | 110 | 916 | 111 |
| 250K | 505 | 2205 | 492 | 424 | 1832 | 424 | 254 | 2205 | 243 | 221 | 1832 | 208 |
| 500K | 903 | 4409 | 917 | 782 | 3664 | 783 | 447 | 4408 | 435 | 385 | 3662 | 383 |
| 800K | 1365 | 7010 | 1317 | 1161 | 5546 | 1150 | 639 | 4905 | 637 | 553 | 3903 | 569 |
| 1M | 1598 | 8691 | 1541 | 1385 | 6901 | 1359 | 757 | 4903 | 795 | 658 | 3905 | 673 |
