PFN-2024

PROFINET I/O Module (4-channel Isolated Analog Output Module)

Features

Protocol: PROFINET IO Device
PROFINET Conformance Class B and RT Class 1
Cyclic Time: 1ms (min)
Generic GSDML File Provided (Version 2.25)
16-bits resolution DAC
Output Range: 0~20mA, 4~20mA, 0~10V, +/-10V, 0~5V, +/-5V
4 kV Contact ESD protection for any terminal

Introduction

The PFN-2024 is specially designed for PROFINET IO device. It has 4-channel isolated analog output with voltage and current output types. It provides ±4kV ESD protection contacting for all terminals. You can access and configure it by using the GSDML file in any PROFINET Engineering tool.

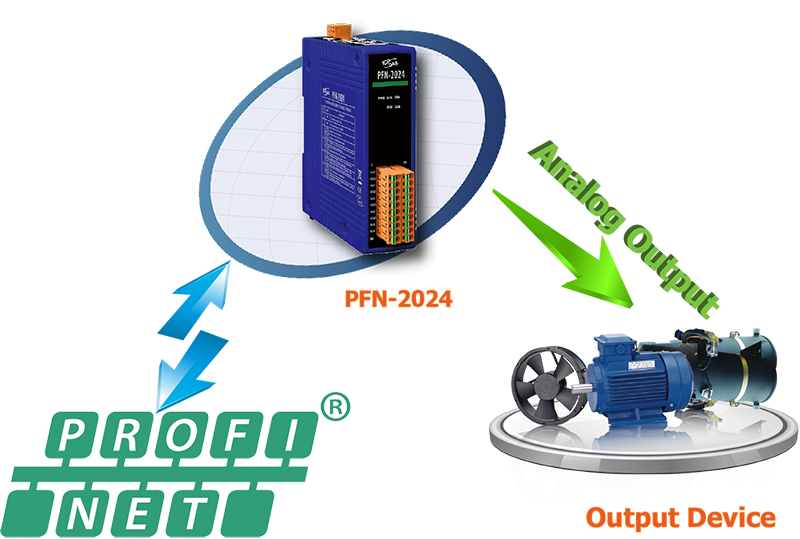

Applications

Industrial Automation
Factory Automation
Process Automation
Etc…

Ordering Information

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY
PRODUCT SERIES PFN-2024 CR	DESCRIPTIONPROFINET I/O Module (4-channel Isolated Analog Output Module) (RoHS)

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

CPU Module
CPU	32-bit CPU Core
EEPROM	8 KB
Flash	4 MB
SRAM	32 MB
Watchdog Timer	CPU built-in

LED Indicators
Status	PWR LED, S1A LED, S1B LED, S2A LED, S2B LED

Analog Output
Channels	4
Range	0~20mA, 4~20mA (current sourcing) 0~10V, +/-10V, 0~5V, +/-5V
Resolution	16 bit
Accuracy	+/- 0.1% of FSR
Isolation	1500 VDC

Ethernet
Services	ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging

PROFINET
Conformance Classes	Class B
Services	RTC, RTA, CL-RPC, DCP, LLDP, I&M
Cycle Time	1 ms (min)
Protocol	PROFINET IO Device

Power
Consumption	7 W

Mechanical
Dimensions (mm)	33 x 107 x 126 (W x L x H)
Installation	DIN-Rail

Environment
Operating Temperature	-25 ~ +75 ℃
Storage Temperature	-30 ~ +80 ℃
Humidity	10 ~ 90% RH, Non-condensing

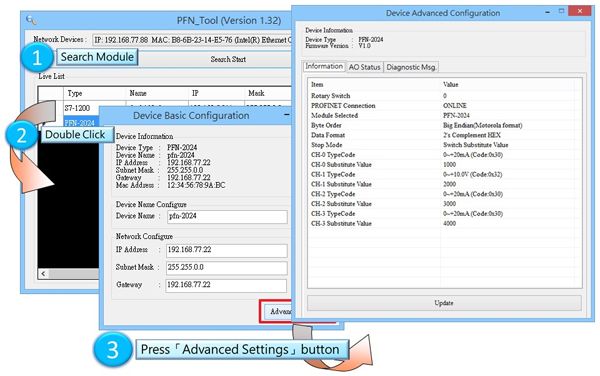

ICP DAS provides the PFN_Tool configuration utility to configure devices.

Provide device search function
Show firmware version
Support network parameters configuration
Show module parameters of the PFN-2024
Provide Analog Output test function
