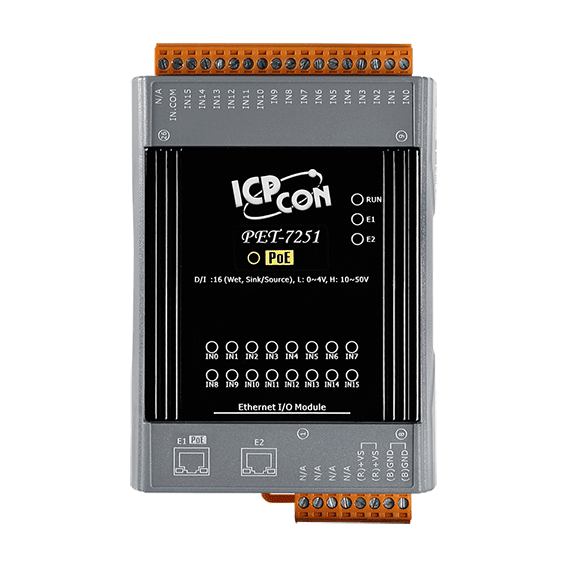

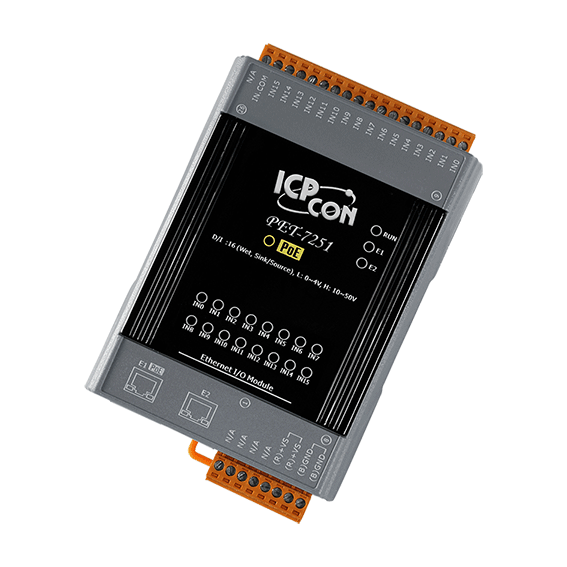

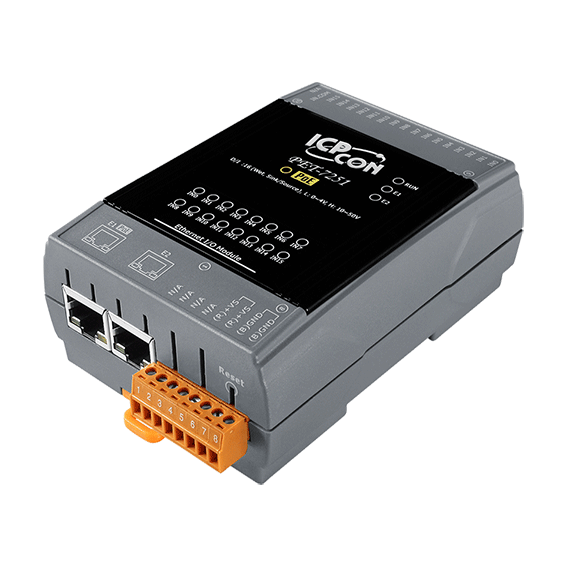

PET-7251
Introduction
The PET-7251 provides 16 wet contact digital input channels. Each input channel can be used as a 32-bit counter. It features optical isolation for 3750 Vrms of transient overvoltage protection but doesn’t provide channel-to-channel isolation. It can safely be used in applications where hazardous voltages are present.
Applications
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.
Ordering Information
PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
---|---|---|---|
This combination include other products.
Similar Products
Software | |
---|---|
Built-in Web Server | Yes |
CPU Module | |
---|---|
Watchdog Timer | Module, Communication (Programmable) |
Isolation | |
---|---|
2-way Isolation | I/O: 2500 VDC |
EMS Protection | |
---|---|
EFT (IEC 61000-4-4) | ±4 kV for Power Line |
ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
LED Indicators | |
---|---|
Status | Run, Ethernet, I/O, PoE |
Digital Input/Counter | |
---|---|
Channels | 16 |
Type | Wet Contact |
Sink/Source (NPN/PNP) | Sink/Source |
ON Voltage Level | +10 to +50 VDC |
OFF Voltage Level | +4 VDC (max.) |
Max. Counts | 4,294,967,295 (32-bit) |
Frequency | 100 Hz |
Min. Pulse Width | 5 ms |
Input Impedance | 10 kΩ |
Overvoltage Protection | +70 VDC |
Ethernet | |
---|---|
Ports | 2 x RJ-45, 10/100 Base-TX, Swtich Ports |
PoE | Yes |
LAN bypass | Yes |
Access Control | ID, Password and IP Filter |
Protocol | Modbus TCP, Modbus UDP |
Power | |
---|---|
Reverse Polarity Protection | Yes |
Consumption | 3.1 W (max.) |
Powered from PoE | IEEE 802.3af, Class1 |
Powered from Terminal Block | +12 to +48 VDC |
Mechanical | |
---|---|
Dimensions (mm) | 76 x 120 x 38 (W x L x H) |
Installation | DIN-Rail mounting |
Environment | |
---|---|
Operating Temperature | -25 ~ +75 °C |
Storage Temperature | -30 ~ +80 °C |
Humidity | 10 to 90% RH, Non-condensing |
