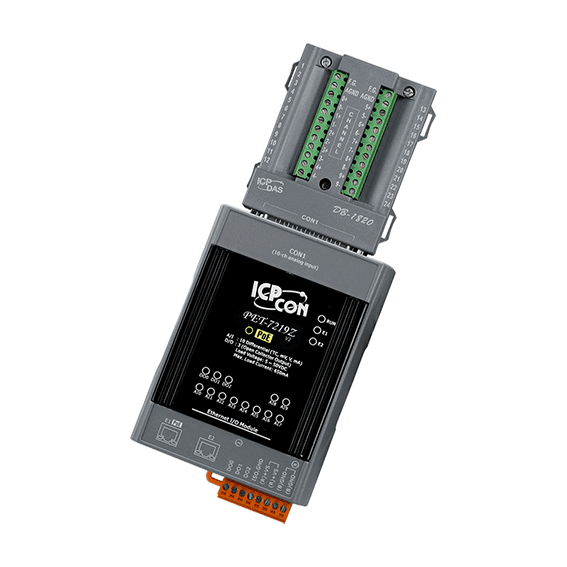

PET-7219Z/S
PoE I/O Module with 2-port Ethernet Switch, Universal 10-ch AI, 3-ch DO
Features
- Built-in Web Server
- Web HMI
- Support for both Modbus TCP and Modbus UDP Protocols
- Communication Security
- Dual Watchdog
- I/O Pair Connection
- Built-in I/O
- Thermocouple/Voltage/Current Input: 10 Channels
- DO: 6 Channels
Introduction
The PET-7219Z series modules are designed for high-precision thermocouple measurement. Each input channel provides automatic cold-junction compensation to ensure consistent and stable temperature readings in the field.The modules include open thermocouple detection as well as EMS (EFT/ESD/Surge) protection. In addition to supporting multiple thermocouple input types, every input channel can also be individually configured for current or voltage input, delivering optimal flexibility for a wide range of application requirements. This series also offers digital output channels, each equipped with short-circuit and overload protection.
Applications
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
|---|---|
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
|---|---|
| 2-way Isolation | I/O: 2500 VDC |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
|---|---|
| Status | Run, Ethernet, I/O, PoE |
| Analog Input | |
|---|---|
| Channels | 10 (Differential) |
| Type | Thermocouple Voltage Current |
| Stable and Consistent Temperature Output | Yes |
| Range | Thermocouple (J, K, T, E, R, S, B, N, C, L, M, and LDIN43710) ±15 mV, ±50 mV, ±100 mV, ±150 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA (Jumper Selectable) |
| Resolution | 16-bit |
| Accuracy | ±0.1% of FSR or better |
| Sampling Rate | 10 Hz (total channels) |
| Input Impedance | >300 kΩ |
| Overvoltage Protection | 240 Vrms |
| Individual Channel Configuration | Yes |
| Open Wire Detection | Yes |
| Isolation | ±400 VDC, Virtual Channel to Channel Isolation |
| Digital Output | |
|---|---|
| Channels | 3 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +5 ~ +50 VDC |
| Load Current | 700 mA/channel |
| Overvoltage Protection | +60 VDC |
| Overload Protection | 1.4 A |
| Short-circuit Protection | Yes |
| Power on Value | Programmable |
| Safe Value | Programmable |
| Ethernet | |
|---|---|
| Ports | 2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| PoE | Yes |
| LAN bypass | Yes |
| Access Control | ID, Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Consumption | 3.6 W (max.) |
| Powered from PoE | IEEE 802.3af, Class1 |
| Powered from Terminal Block | +12 ~ +48 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 76 x 120 x 42 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
