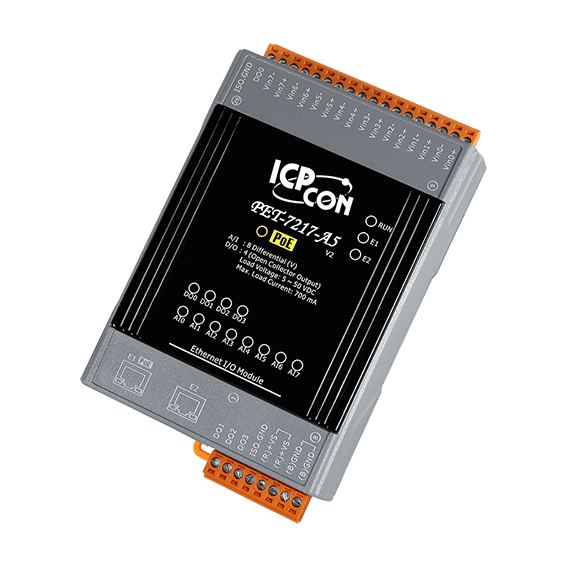

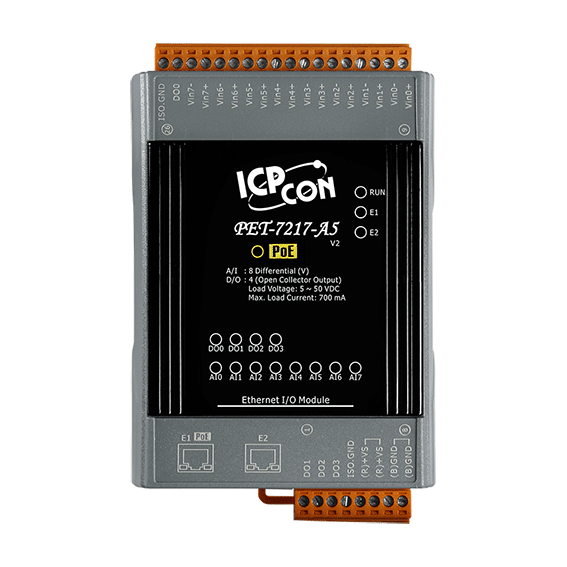

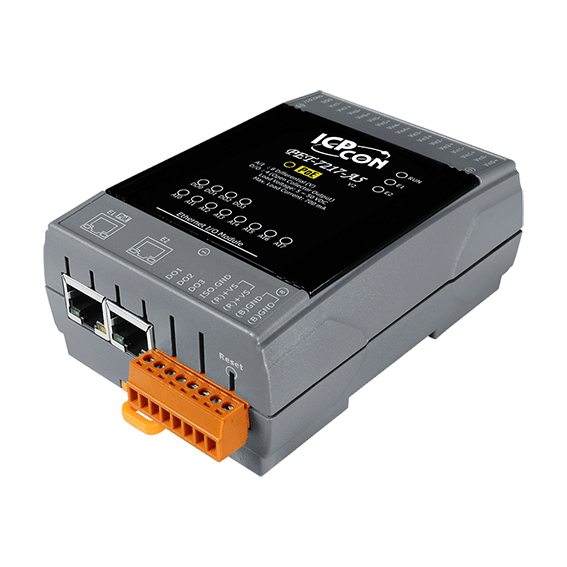

PET-7217-A5
PoE I/O Module with 2-port Ethernet Switch, 8-ch AI, 4-ch DO
Features
- Built-in Web Server
- Web HMI
- Support for both Modbus TCP and Modbus UDP Protocols
- Communication Security
- 2-port Ethernet Switch (LAN bypass) for Daisy-chain Topology
- Dual Watchdog
- I/O Pair Connection
- Built-in I/O
- AI: 8 Channels High Voltage Input
- DO: 4 Channels
Introduction
The PET-7217-A5 features 4 digital output channels and 8 differential high-voltage input channels. Each input channel supports two selectable voltage ranges (±50 V / ±150 V) and can be configured independently, providing maximum flexibility for a wide range of applications.
With full networking capabilities and an intuitive web-based user interface, the PET-7217-A5 allows easy configuration and remote monitoring. Supporting Modbus TCP/UDP protocols, these modules integrate seamlessly with HMI, SCADA, PLCs, and other industrial automation systems.
With full networking capabilities and an intuitive web-based user interface, the PET-7217-A5 allows easy configuration and remote monitoring. Supporting Modbus TCP/UDP protocols, these modules integrate seamlessly with HMI, SCADA, PLCs, and other industrial automation systems.
Applications
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
|---|---|
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
|---|---|
| 2-way Isolation | I/O: 2500 VDC |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±2 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
|---|---|
| Status | Run, Ethernet, I/O, PoE |
| Analog Input | |
|---|---|
| Channels | 8 (Differential) |
| Type | Voltage |
| Range | ±50 V, ±150 V |
| Resolution | 16-bit |
| Accuracy | Normal Mode: ±0.1% Fast Mode: ±0.5% or better |
| Sampling Rate | Normal Mode: 10 Hz (total channels) Fast Mode: 50 Hz (total channels) |
| Input Impedance | Voltage: 290 kΩ |
| Common Voltage Protection | ±200 VDC |
| Overvoltage Protection | ±200 VDC |
| Individual Channel Configuration | Yes |
| Isolation | ±400 VDC, Virtual Channel to Channel Isolation |
| Digital Output | |
|---|---|
| Channels | 4 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +5 ~ +50 VDC |
| Load Current | 700 mA/channel |
| Overvoltage Protection | +60 VDC |
| Overload Protection | 1.4 A |
| Short-circuit Protection | Yes |
| Power on Value | Programmable |
| Safe Value | Programmable |
| Ethernet | |
|---|---|
| Ports | 2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| PoE | Yes |
| LAN bypass | Yes |
| Access Control | ID, Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Consumption | 4.4 W (max.) |
| Powered from PoE | IEEE 802.3af, Class1 |
| Powered from Terminal Block | +12 ~ +48 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 76 x 120 x 42 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
