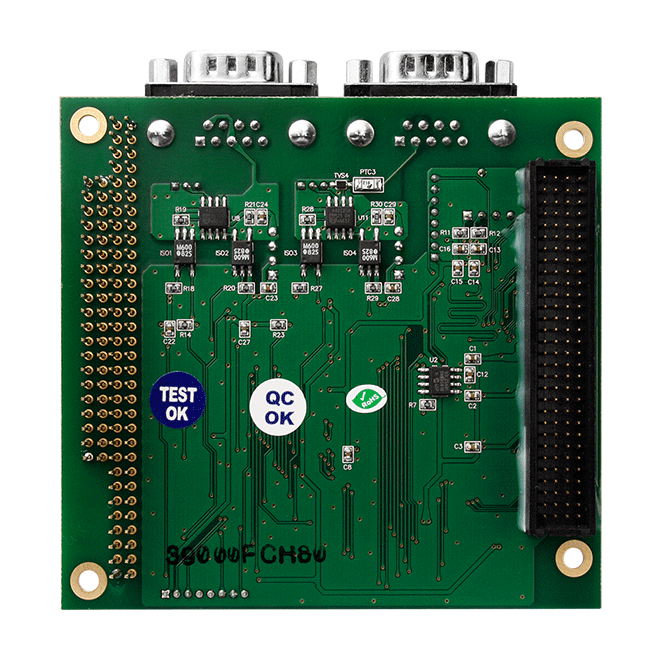

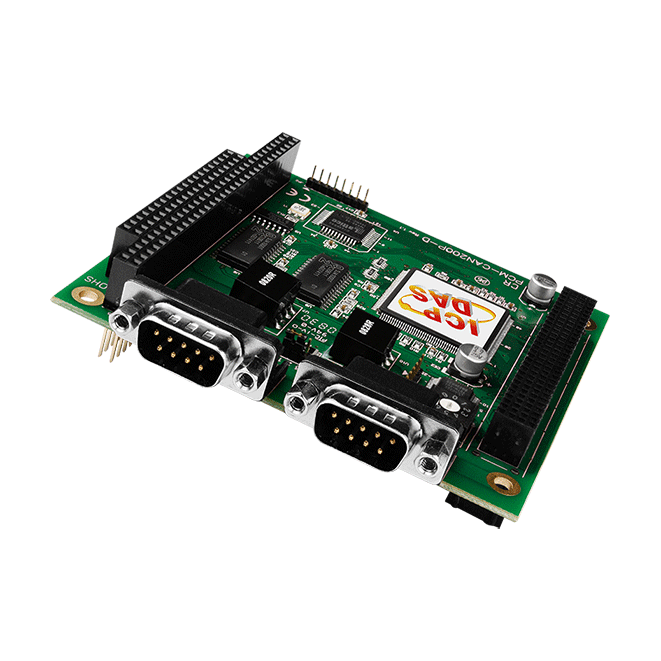

PCM-CAN200P-D

2-port CAN PC-104+ Module
PCM-CAN200P-D
PCM-CAN200P-D
PCM-CAN200P-D
PCM-CAN200P-D
PCM-CAN200P-D
PCM-CAN200P-D
PCM-CAN200P-D
PCM-CAN200P-D

Features

  • PC104+ compliant
  • 9-pin D-sub connector
  • Compatible with CAN 2.0 parts A and B
  • Fully compatible with ISO 11898-2 standard
  • Support CAN bard from 10K to 1M bps
  • 2500 Vrms photo couple isolation on the CAN bus
  • Built-in jumper to select 120 ohm terminal resister
  • 1KV galvanic isolation
  • 2 independent CAN channels
  • Direct memory mapping to the CAN controller
UKCA RoHS WEEE

Introduction

PCM-CAN200P-D can represent a CAN solution on a high quality PC104+ hardware in industrial environment compliant with CAN 2.0A and CAN 2.0B specification. It has 2 independent CAN bus communication ports with 9-pin D-sub connector, and has the ability to cover a wide range of CAN applications.

Besides, PCM-CAN200P-D uses the CAN controller Phillips SJA1000T and transceiver 82C250/251, which provide bus arbitration, error detection with auto correction and re-transmission function. It can be installed in a 5V PCI slot and supported truly “Plug & play”

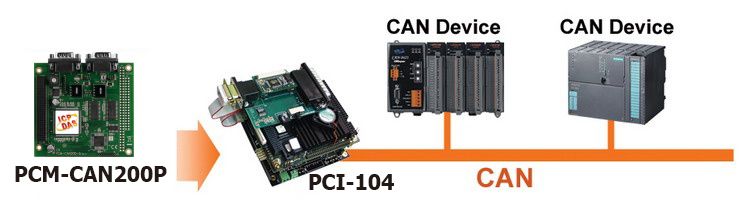

Applications


  • CAN bus communication application
  • DeviceNet, CANopen, CAN J1939, SDS(System Wide Network) protocol application
  • Control System
  • Building Automation
  • Factory Automation
  • Distributed data acquisition

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES PCM-CAN200P-D     CR DESCRIPTION2-Port Isolated Protection CAN Communication PC-104+ Module with 9-pin D-sub connector (RoHS)
This combination include other products.

Similar Products

Software
Driver Windows XP/7/8/10 (32-bit/64-bit OS), Linux 2.6.x ~ 5.4.0, LabView, DASYLab, InduSoft
SDK VB 6.0, VC++ 6.0, BCB 6.0, Delphi 4.0
PC Bus
Type PC-104+
CAN
Controller NXP SJA1000T with 16 MHz clock
Ports 2
Baud Rate 10 k ~ 1 M bps
Isolation 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor Jumper for 120 Ω terminal resistor
Power
Consumption 250 mA @ 5 V
Mechanical
Dimensions (mm) 91 x 22 x 96 (W x L x H)
Environment
Operating Temperature 0 ~ +60 °C
Storage Temperature -20 ~ +70 °C
Humidity 5 ~ 85% RH, Non-condensing
  • Can be a CAN system monitor tool with CAN cards
  • It is a good tool to test CAN system
  • Send/Receive/Record CAN messages.
  • Provide cyclic transmission function
  • Record the CAN messages with filtered ID and time stamp

Hardware Architecture


Software Architecture


Performance Test

Test development:
OS:Windows XP SP 3
CPU:Intel Core 2 Duo 2.00 GHz
RAM:512 MB
Baud Rate(bps) CAN 2.0 A CAN 2.0 B
Frame per sec. Frame per sec.
1000 k 7493 6387
800 k 6185 5249
500 k 4088 3463
250 k 2134 1808
125 k 1096 924
50 k 438 370
20 k 175 148
10 k 88 74

Note:The test result is the average value of receiving 100000 CAN messages.
