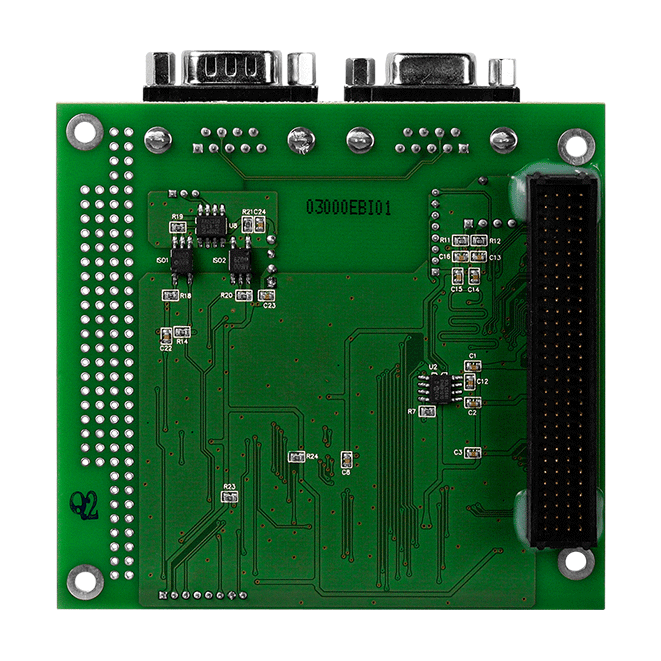

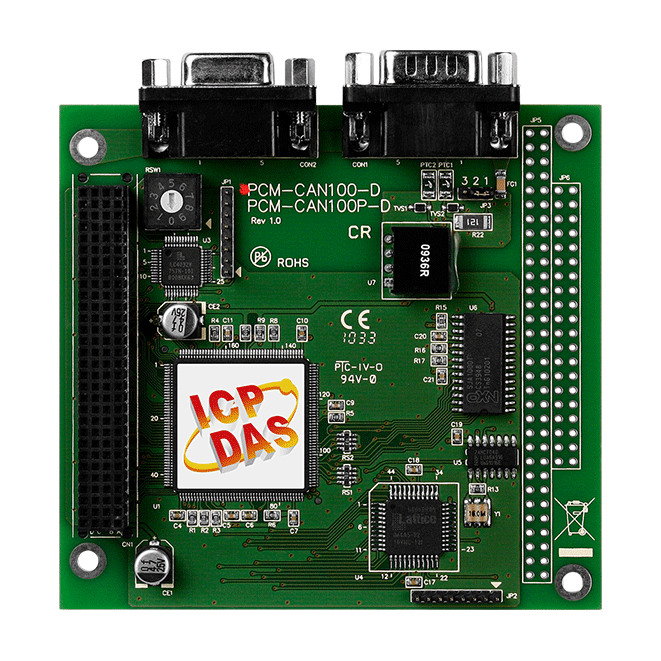

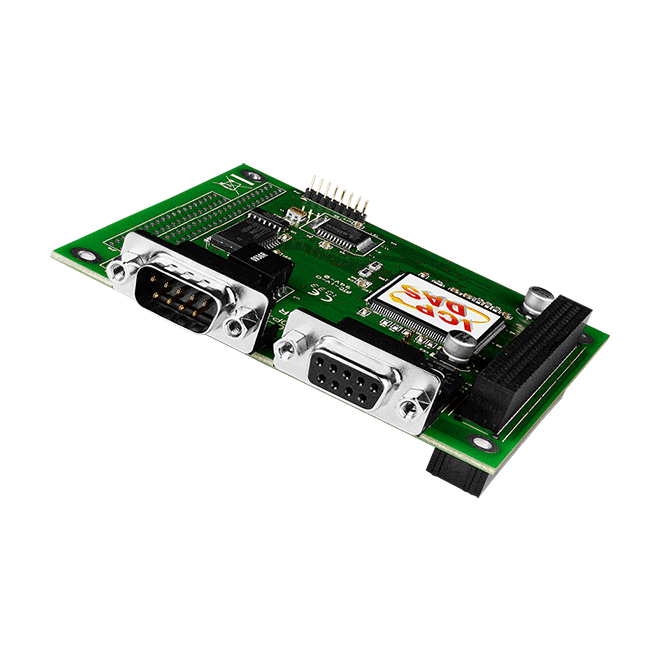

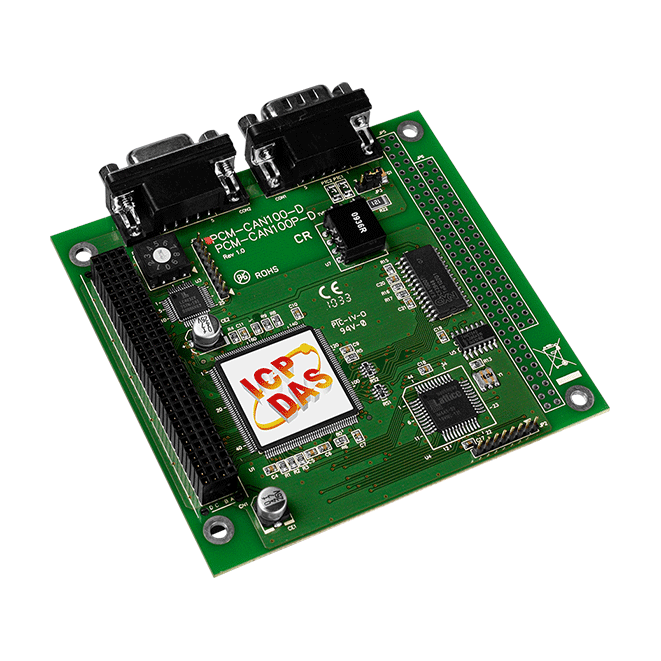

1-port CAN PCI-104 Module
Features
- PCI-104 compliant
- 9-pin D-sub connector
- Compatible with CAN 2.0 parts A and B
- Fully compatible with ISO 11898-2 standard
- Support CAN bard from 10K to 1M bps
- 2500 Vrms photo couple isolation on the CAN bus
- Built-in jumper to select 120 ohm terminal resister
- 1KV galvanic isolation
- 1 CAN channel
- Direct memory mapping to the CAN controller
Introduction
PCM-CAN100-D can represent a CAN solution on a high quality PCI-104 hardware in industrial environment compliant with CAN 2.0A and CAN 2.0B specification. It has 2 independent CAN bus communication ports with 9-pin D-sub connector, and has the ability to cover a wide range of CAN applications.
Besides, PCM-CAN100-D uses the CAN controller Phillips SJA1000T and transceiver 82C250/251, which provide bus arbitration, error detection with auto correction and re-transmission function. It can be installed in a 5V PCI slot and supported truly “Plug & play”
Applications
- CAN bus communication application
- DeviceNet, CANopen, CAN J1939, SDS(System Wide Network) protocol application
- Control System
- Building Automation
- Factory Automation
- Distributed data acquisition
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.

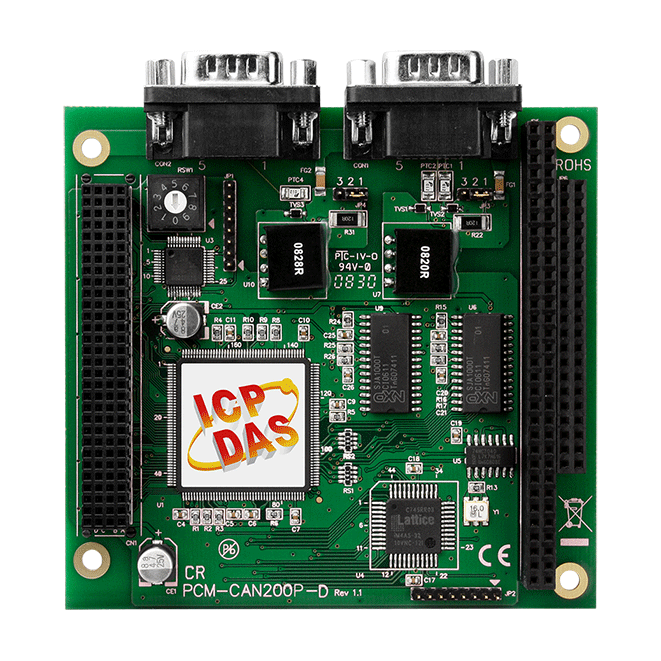

Similar Products
| Software | |
|---|---|
| Driver | Windows XP/7/8/10 (32-bit/64-bit OS), Linux 2.6.x ~ 5.4.0, LabView, DASYLab, InduSoft |
| SDK | VB 6.0, VC++ 6.0, BCB 6.0, Delphi 4.0 |
| PC Bus | |
|---|---|
| Type | PCI-104 |
| CAN | |
|---|---|
| Controller | NXP SJA1000T with 16 MHz clock |
| Ports | 1 |
| Baud Rate | 10 k ~ 1 M bps |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Jumper for 120 Ω terminal resistor |
| Power | |
|---|---|
| Consumption | 250 mA @ 5 V |
| Mechanical | |
|---|---|
| Dimensions (mm) | 91 x 22 x 96 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | 0 ~ +60 °C |
| Storage Temperature | -20 ~ +70 °C |
| Humidity | 5 ~ 85% RH, Non-condensing |
- Can be a CAN system monitor tool with CAN cards
- It is a good tool to test CAN system
- Send/Receive/Record CAN messages.
- Provide cyclic transmission function
- Record the CAN messages with filtered ID and time stamp
Hardware Architecture
Software Architecture
Performance Test
Test development：OS：Windows XP SP 3
CPU：Intel Core 2 Duo 2.00 GHz
RAM：512 MB
| Baud Rate(bps) | CAN 2.0 A | CAN 2.0 B |
|---|---|---|
| Frame per sec. | Frame per sec. | |
| 1000 k | 7493 | 6387 |
| 800 k | 6185 | 5249 |
| 500 k | 4088 | 3463 |
| 250 k | 2134 | 1808 |
| 125 k | 1096 | 924 |
| 50 k | 438 | 370 |
| 20 k | 175 | 148 |
| 10 k | 88 | 74 |
Note：The test result is the average value of receiving 100000 CAN messages.
