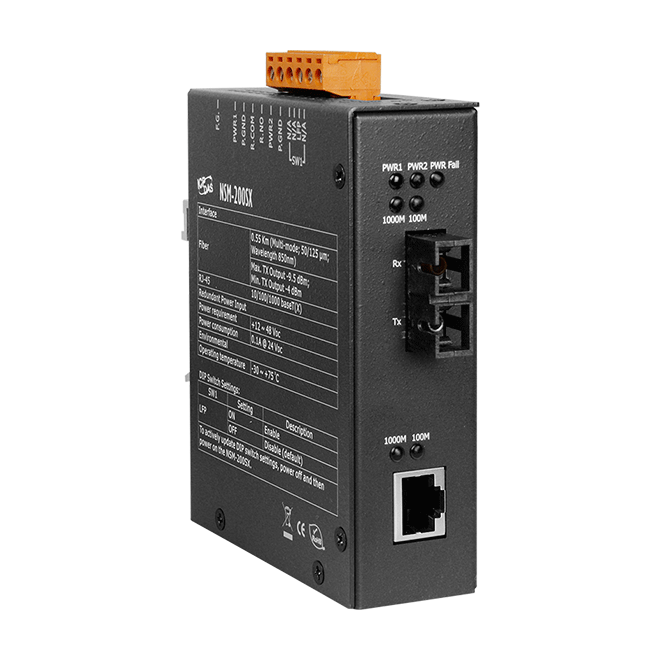

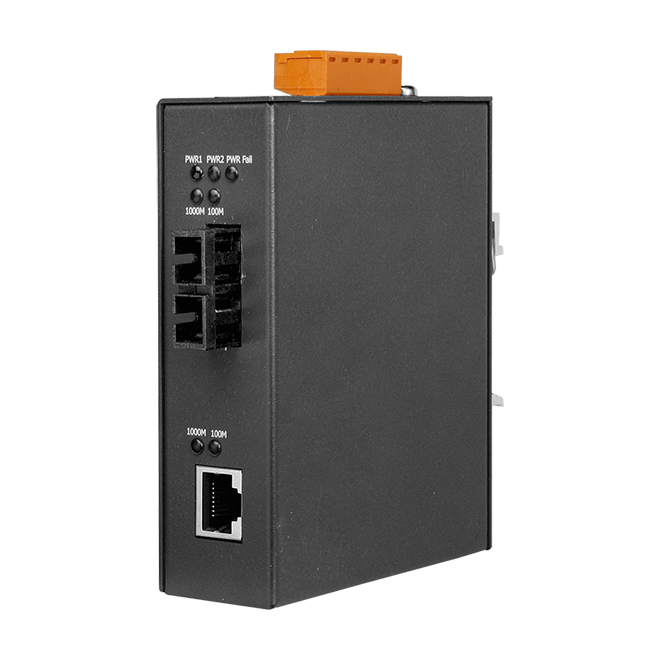

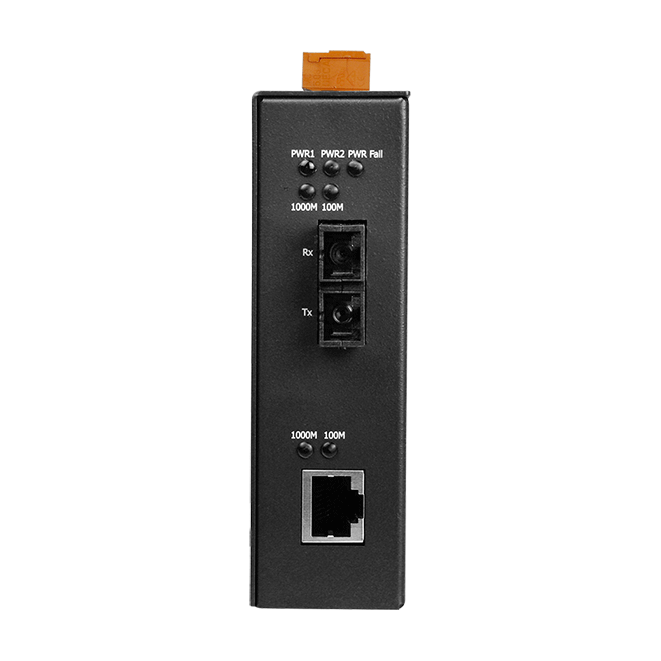

NSM-200SX
1000Base-T to 1000Base-SX Fiber Media Converter (Multi mode 850nm, SC connector)
Features
• Provides 1 x 1000 Mbps fiber port with SC type connector for 1000 Base-SX device
• Supports wide operating temperatures from -30 °C ~ +75 °C
• Transparent to jumbo packets up to 10 KB
• Provides Link Fault Pass-through (LFP)
• Supports redundant +12 VDC ~ +48 VDC power input
• Supports wide operating temperatures from -30 °C ~ +75 °C
• Transparent to jumbo packets up to 10 KB
• Provides Link Fault Pass-through (LFP)
• Supports redundant +12 VDC ~ +48 VDC power input
Introduction
ICP DAS's line of feature rich 10/100/1000 Fiber Media Converters transparently connects copper to multimode or single mode fiber. Our 10/100/1000 Ethernet to Fiber Converters provide an economical path to extend the distance of an existing network, the line of non-fiber based equipment, or the distance between two devices. Gigabit Media Converters are also available with support for LFP (Link Fault Pass-through) feature.
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| LED Indicators | |
|---|---|
| Status | PWR1, PWR2, P-Fail, Link/Act, 100M, 1000M |
| Ethernet | |
|---|---|
| Ports | 1 x RJ-45, 10/100/1000Base-T(X) |
| Standards | IEEE 802.3 for 10Base-T; IEEE 802.3u for 100Base-TX; IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow Control Energy Efficient Ethernet (EEE) as per 802.3az; this provides power savings during idle network activity |
| Processing Type | Store & forward |
| Frame Buffer Memory | 512 Kbit |
| Jumbo Frames | 16K |
| DIP Switch | 1 x LFP Enable |
| Fiber | |
|---|---|
| Ports | 1 x 1000Base-FX, SC connector |
| Mode | Multi-Mode |
| Fiber Cable | 50/125 μm |
| Distance | 0.55 km |
| Wavelength | 850 nm |
| TX Output | -9.5 dBm Min. -4 dBm Max. |
| RX Sensitivity | -17 dBm |
| RX Overload | -3 dBm |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +12 VDC ~ +48 VDC Redundant dual Input(Non-isolated) |
| Redundant Power Inputs | Yes |
| Consumption | 0.1 A @ 24 VDC |
| Alarm Output | Yes,Relay 1 A @ 30 VDC |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | DIN-rail mounting: 33 x 120 x 109 (W x L x H) Wall mounting: 33 x 159 x 103 (W x L x H) |

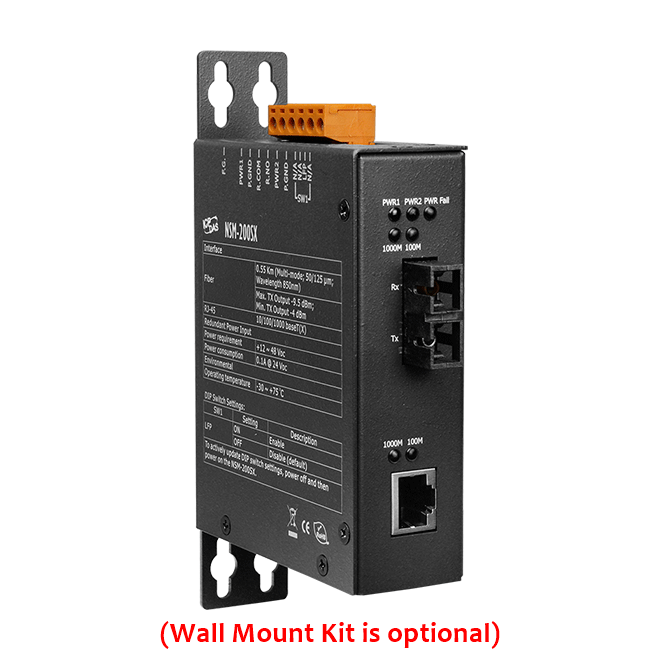

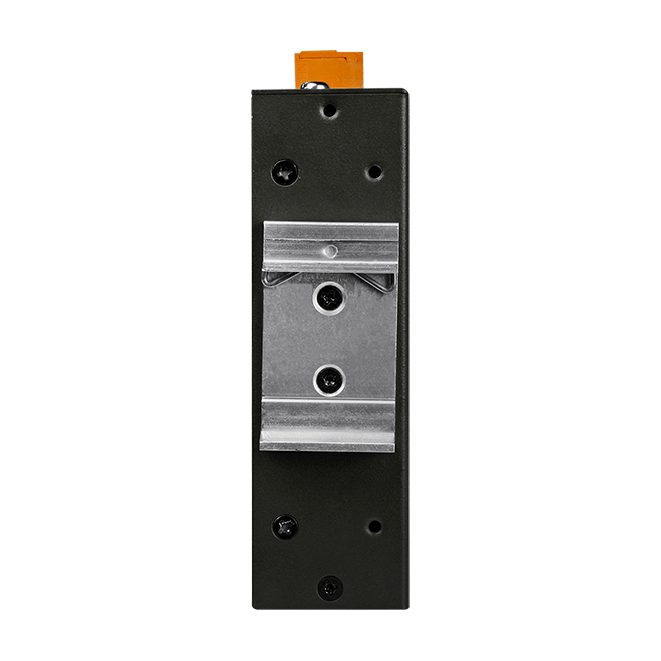

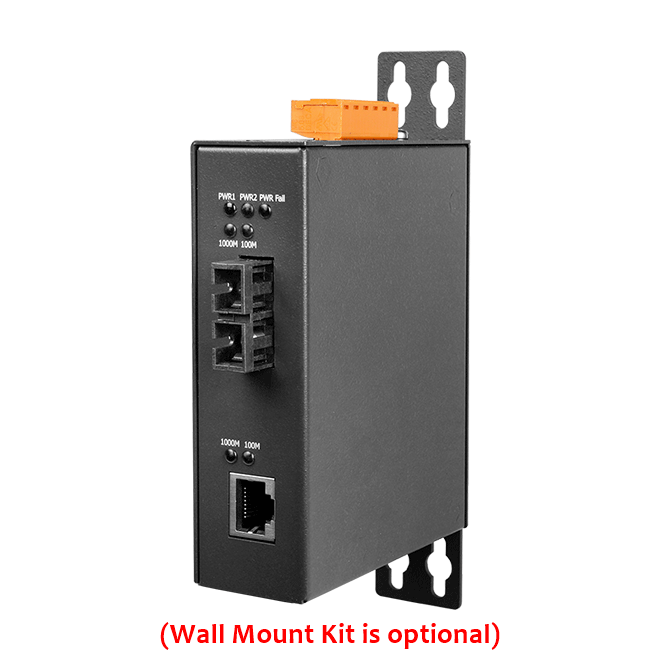

| Installation | DIN-rail mounting or wall mounting (optional) |
| Environment | |
|---|---|
| Operating Temperature | -30 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
