MDC-700 series
Modbus data concentrator with Ethernet, RS-232 and RS-485 interfaces
Features
- Supports Modbus master/slave on the serial port and Modbus TCP slave on the Ethernet interface
- Supports up to 8 simultaneous Modbus TCP connections at one time
- Data pool for up to 9600 registers
- Modbus polling commands for up to 250 definitions
- Easy configuration with a simple CSV file for quick start-up
- HTML5 Web-based user interface
Introduction
MDC-700 provides Ethernet, RS-232 and RS-485 communication interfaces to integrate RS-232/RS-485 Modbus Slave devices into Ethernet. Through the user-defined command table, the MDC-700 will read the data of the devices connected to each COM port sequentially and merge them into a continuous address format, which is convenient for the host computer to read all the data at once.
Key Features
- Great Data Capability
- Supports up to 250 Modbus/RTU definitions (commands)
- Handles up to 9600 data points for each of of AI, AO, DI, DO types
- Efficient Communication Design
- Combines data from multiple sources into a continuous address for efficient bulk reading/writing by the host
- Each COM port communication is performed in parallel to speed up the COM port communication
- Write commands (e.g., write holding registers, write Coils) are queued with first priority to ensure fast data updates.
-
Flexible Host Connectivity
- Connects with up to 8 Modbus/TCP host controllers simultaneously
- Each COM port can have different communication parameters (eg. baudrate, data format, timeout, etc.)
- Each COM port can be used as a Modbus RTU master or slave.
- Simplifies system architecture and reduces Ethernet traffic for improved performance
- Seamless Legacy Device Upgrade
- Easily upgrades Modbus RTU devices to Ethernet-based systems
-
Ideal for SCADA applications, enabling fast deployment of centralized data monitoring solutions
-
Easy Configuration and Maintenance
- Configuration via a CSV file
- Clear structure supports efficient batch command setup
- Web-based interface for quick and easy configuration import/export and system startup
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Display | |
|---|---|
| Type | 5 x Digit 7 Segment LED Display |
| LED Indicators | |
|---|---|
| Status | 1 x System, to display heart beat |
| Ethernet | |
|---|---|
| Ports | x1, 10/100 Base-TX |
| Protocol | Modbus/TCP Slave |
| COM Ports | |
|---|---|

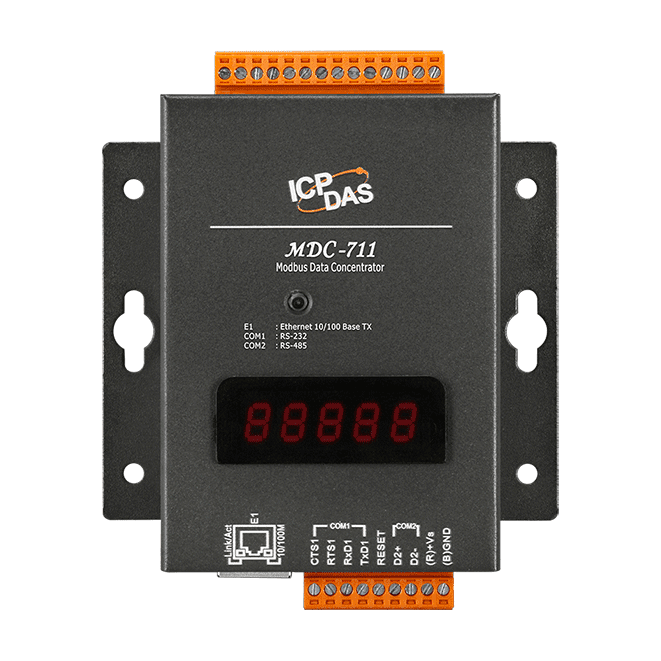

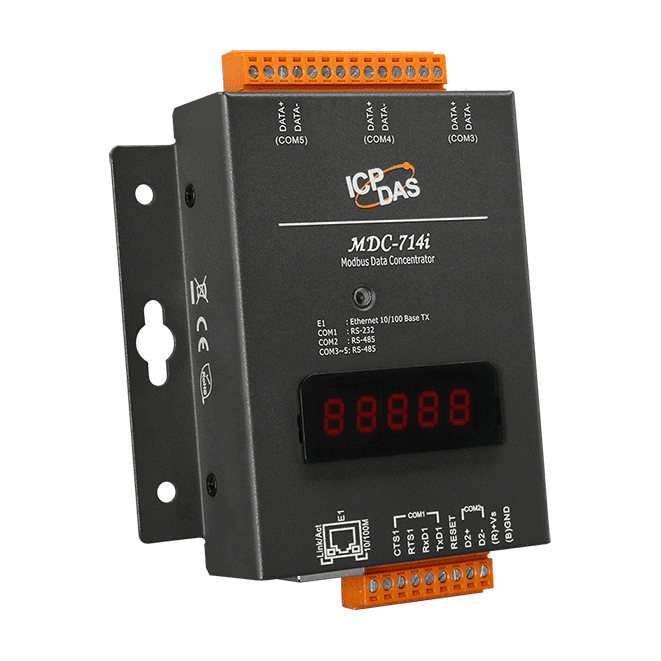

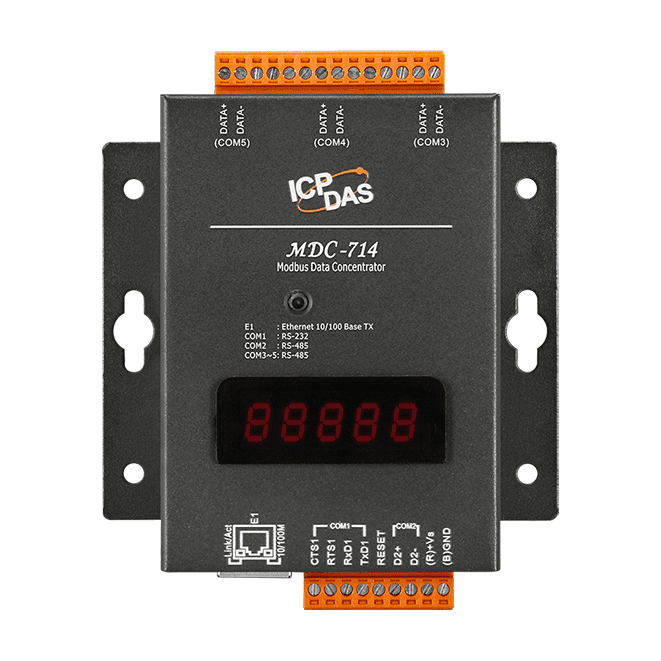

| Ports | MDC-711: 1 x 5-wire RS-232, 1 x 2-wire RS-485 MDC-714: 1 x 5-wire RS-232, 4 x 2-wire RS-485 MDC-714i: 1 x 5-wire RS-232, 1 x 2-wire RS-485, 3 x 2-wire RS-485 (2500 VDC Signal Isolation) MDC-741: 4 x 5-wire RS-232, 1 x 2-wire RS-485 MDC-771: 1 x 5-wire RS-232, 6 x 3-wire RS-232, 1 x 2-wire RS-485 |
| Baud Rate | 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Data Format | N81, E81, O81 |
| Protocol | Modbus RTU Master/Modbus RTU Slave |
| Polling Definition | 250 definitions for all RS-232/485 ports |
| Shared Memory | 9600 registers for each of AI, AO, DI and DO data |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC (non-regulated) |
| Consumption | 2.5 W |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | 102 mm x 125 mm x 28 mm (W x H x D) |
| Installation | Wall Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
