M-7053D-G

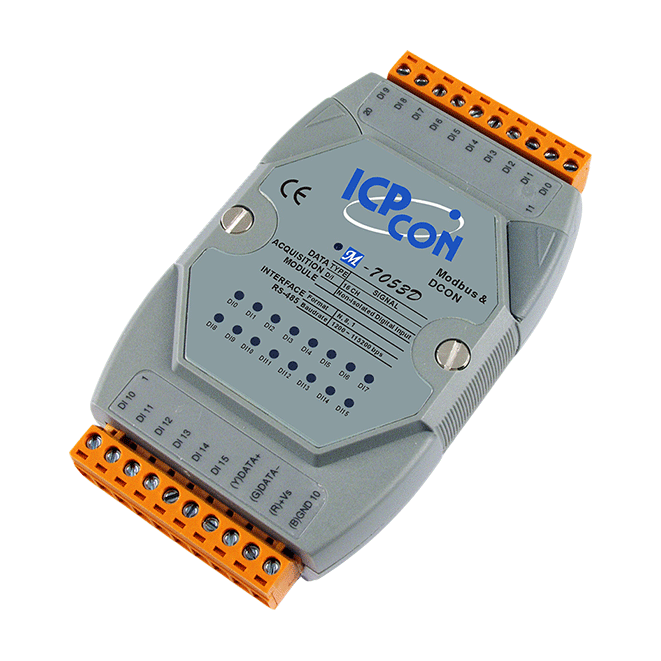

16-ch Non-isolated (Dry) DI Module with LED Display

Features

16 Source-type Digital Inputs
Long Effective Distance
All Channels Can be Used as 16-bit Counters
Built-in Dual Watchdog

Introduction

The M-7053/M-7053D features a long effective distance measurement for dry contact digital input of up to 500 meters. The module supports source-type input. All 16 channels are also able to be used as 16-bit counters, each of which is non-isolated. The M-7053D has 16 LED indicators for channel status monitoring. The M-7053(D) supports Modbus RTU and DCON protocols, which can be configured via software, and all hardware specifications are the same as the I-7053(D)_FG.

Applications

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Ordering Information

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY
PRODUCT SERIES M-7053D-G CR	DESCRIPTION16-ch Non-isolated (Dry) DI Module with LED Display, using DCON and Modbus Protocols (Gray Cover) (RoHS)

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

CPU Module
Watchdog Timer	Module, Communication (Programmable)

Display
Type	I/O LED Indicator

LED Indicators
Status	1 x Power and Communication 16 x Digital Input

Digital Input/Counter
Channels	16
Type	Dry Contact
Sink/Source (NPN/PNP)	Source
ON Voltage Level	Open
OFF Voltage Level	Close to GND
Max. Counts	65535 (16-bit)
Frequency	100 Hz
Min. Pulse Width	5 ms
Effective Distance	500 m Max.

COM Ports
Ports	1 x RS-485
Baud Rate	1200 ~ 115200 bps
Data Format	(N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1)
Protocol	Modbus RTU, DCON

Power
Reverse Polarity Protection	Yes
Input Range	+10 ~ +30 VDC
Consumption	0.9 W

Mechanical
Dimensions (mm)	72 x 123 x 35 (W x L x H)
Installation	DIN-Rail Mounting

Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-40 ~ +85 °C
Humidity	10 ~ 95% RH, Non-condensing
