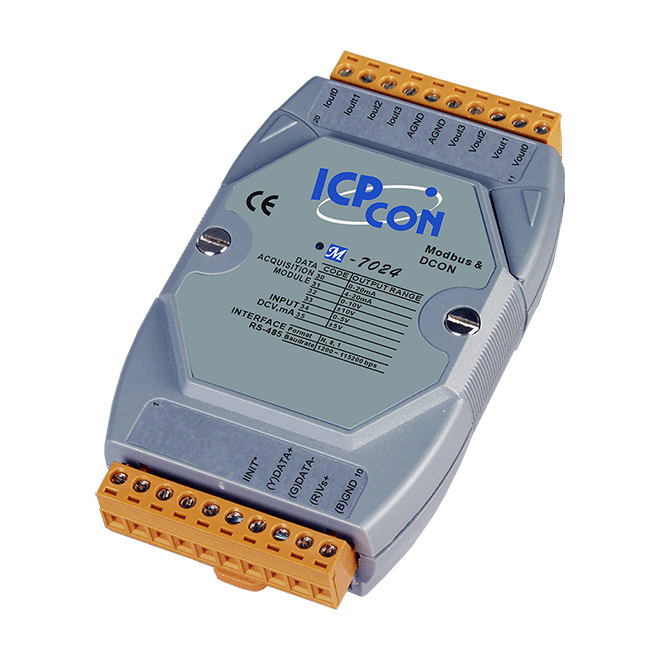

M-7024-G
Introduction
The M-7024 is a 14-bit, 4-channel analog output module that provides current and voltage outputs. The module features 3000 VDC intra-module isolation. The M-7024 supports Modbus RTU and DCON protocols, which can be configured via software. There are also options for configuring power-on and safe values. All hardware specifications are the same as the I-7024.
Applications
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Ordering Information
PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
---|---|---|---|
This combination include other products.
Similar Products
CPU Module | |
---|---|
Watchdog Timer | Module, Communication (Programmable) |
Isolation | |
---|---|
Intra-module Isolation | 3000 VDC |
EMS Protection | |
---|---|
ESD (IEC 61000-4-2) | ±2 kV Contact for Each Terminal |
LED Indicators | |
---|---|
Status | 1 x Power and Communication |
Analog Output | |
---|---|
Channels | 4 |
Type | Voltage Current |
Range | Voltage: 0 ~ 5 V, ±5 V, 0 ~ 10 V, ±10 V Current: 0 ~ 20 mA, 4 ~ 20 mA |
Resolution | 14-bit |
Accuracy | ±0.1% of FSR |
DA Output Response Time | 10 ms |
Power-on Value | Programmable |
Safe Value | Programmable |
COM Ports | |
---|---|
Ports | 1 x RS-485 |
Baud Rate | 1200 ~ 115200 bps |
Data Format | (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1) |
Protocol | Modbus RTU, DCON |
Power | |
---|---|
Reverse Polarity Protection | Yes |
Input Range | +10 ~ +30 VDC |
Consumption | 2.4 W |
Mechanical | |
---|---|
Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
Installation | DIN-Rail Mounting |
Environment | |
---|---|
Operating Temperature | -25 ~ +75 °C |
Storage Temperature | -40 ~ +85 °C |
Humidity | 10 ~ 95% RH, Non-condensing |
