M-7019Z-G/S

10-ch Universal AI Module
M-7019Z-G/S
M-7019Z-G/S
M-7019Z-G/S
M-7019Z-G/S

Features

  • 10 Analog Inputs
  • Provides Stable and Consistent Temperature Output
  • Jumper Selectable Voltage or Current Input
  • High Over-voltage Input Protection
  • High Common Voltage Protection
  • Individual Channel Configuration
  • Open Thermocouple Detection
  • Built-in Dual Watchdog
CE UKCA FCC RoHS WEEE

Introduction

The M-7019Z is a 10-channel universal analog input module with an RS-485 interface that is specially designed for extremely accurate thermocouple measurement and features automatic cold-junction compensation for each channel to ensure temperature output consistency and stable temperature output in the field. The innovative design of the enhanced model ensures that thermocouple measurement is more accurate than with the earlier design.

Besides the thermocouple inputs, The M-7019Z also supports voltage and current inputs. The voltage input range can be from ±15 mV to ±10 V, and the current input range can be either 4 ~ 20 mA, 0 ~ 20 mA, or ± 20 mA. Up to 10 analog inputs of different types can be connected to a single module.The module also provides up to 240 Vrms overvoltage protection and features per-channel open wire detection for the thermocouple and +4 ~ +20 mA input types.



Applications


• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES M-7019Z-G/S     CR DESCRIPTION10-ch Universal AI Module using DCON and Modbus Protocols (Gray Cover) (RoHS)

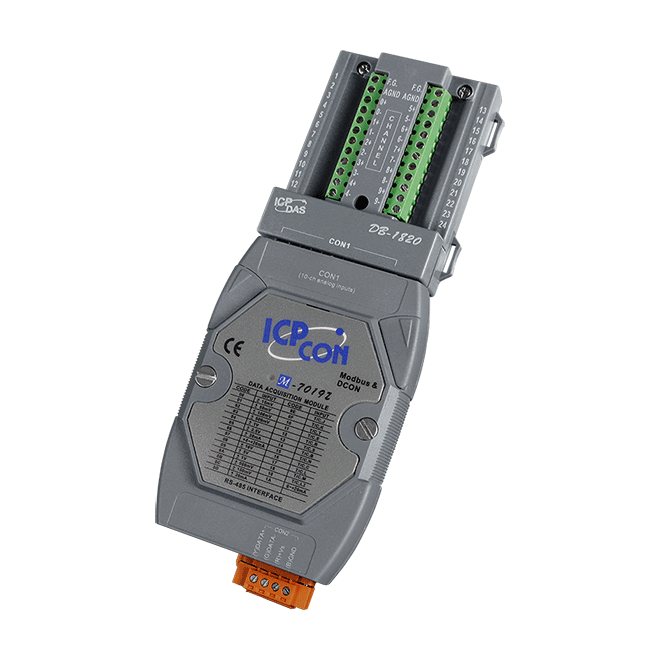

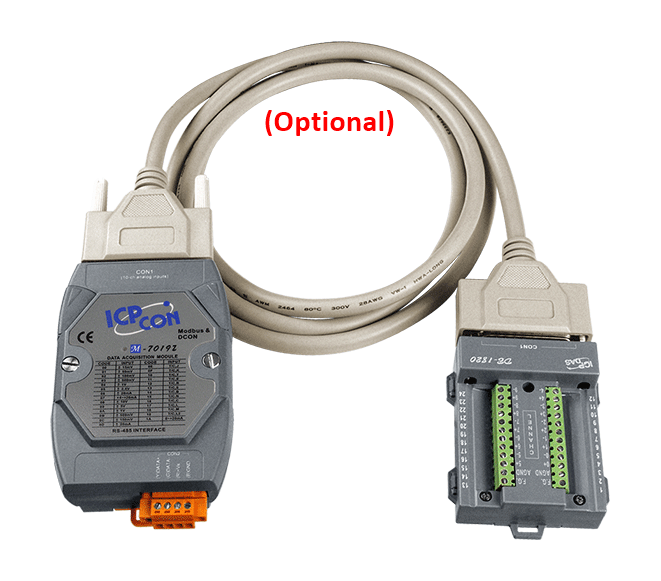

Includes DB-1820 Daughter Board and Plastic DIN Rail (4PAPP-006-G)
This combination include other products.

Similar Products

CPU Module
Watchdog Timer Module, Communication (Programmable)
Isolation
Intra-module Isolation 3000 VDC
EMS Protection
EFT (IEC 61000-4-4) ±4 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
LED Indicators
Status 1 x Power and Communication
Analog Input
Channels 10 Differential
Type Voltage
Current
Thermocouple
Sensor Type Thermocouple: J, K, T, E, R, S, B, N, C, L, M, LDIN43710
Stable and Consisten Temperature Output Yes
Range Voltage: ±15 mV, ±50 mV, ±100 mV, ±150 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V
Current: ±20 mA, 0 ~ +20 mA, +4 ~ +20 mA (Jumper selectable)
Resolution 16-bit
Accuracy ±0.1% of FSR
Sampling Rate 10 Hz (Total)
Input Impedance Voltage: 2 MΩ
Current: 125 Ω
Thermocouple: > 400 kΩ
Common Voltage Protection ±200 VDC
Overvoltage Protection 240 Vrms
Individual Channel Configuration Yes
Open Wire Detection For Thermocouple (Software Selectable) and 4 ~ 20 mA
COM Ports
Ports 1 x RS-485
Baud Rate 1200 ~ 115200 bps
Data Format (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1)
Protocol Modbus RTU, DCON
Power
Reverse Polarity Protection Yes
Input Range +10 ~ +30 VDC
Consumption 1.8 W Max.
Mechanical
Dimensions (mm) M-7019Z: 73 x 116 x 34 (W x L x H)
DB-1820: 65 x 78 x 22 (W x L x D)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 90% RH, Non-condensing
