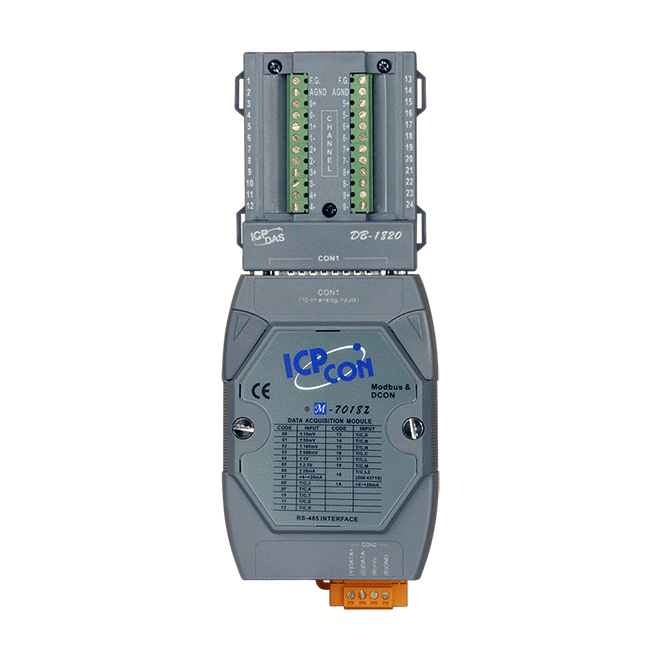

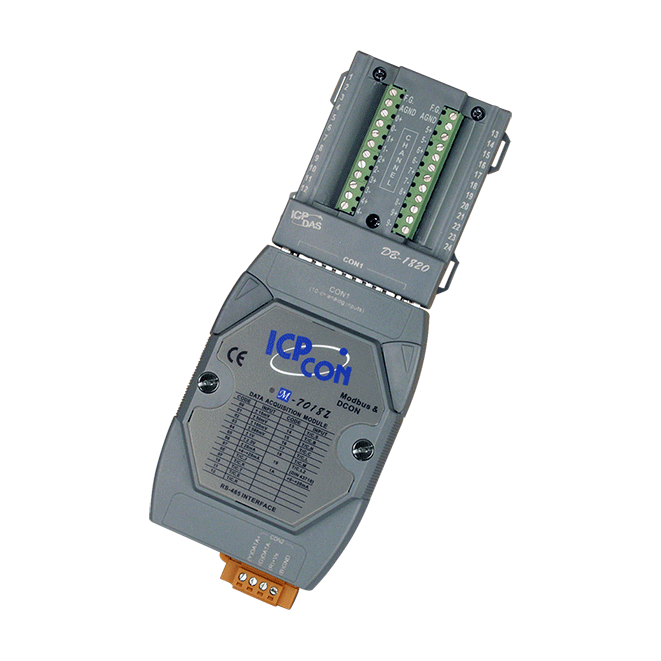

M-7018Z-G/S
10-ch Thermocouple Input Module
Features
- 10 Analog Inputs
- Provides Stable and Consistent Temperature Output
- Current, Voltage, and Thermocouple Inputs
- High Over-voltage Input Protection
- High Common Voltage Protection
- Individual Channel Configuration
- Open Thermocouple Detection
- Built-in Dual Watchdog
Introduction
The M-7018Z is a 10-channel universal analog input module with an RS-485 interface that is specially designed for extremely accurate thermocouple measurement and features automatic cold-junction compensation for each channel to ensure temperature output consistency and stable temperature output in the field. The innovative design of the enhanced model ensures that thermocouple measurement is more accurate than with the earlier design.
Besides the thermocouple inputs, The M-7018Z also supports voltage and current input. The voltage input range can be from ±15 mV to ±2.5 V. Up to 10 different types of Analog Input can be connected to a single module. The module also provides up to 240 Vrms overvoltage protection and features per-channel open wire detection for thermocouple and +4 ~ +20 mA input types. The M-7018Z supports Modbus RTU and DCON protocols, which can be configured via software, and all hardware specifications are the same as the I-7018Z.
Besides the thermocouple inputs, The M-7018Z also supports voltage and current input. The voltage input range can be from ±15 mV to ±2.5 V. Up to 10 different types of Analog Input can be connected to a single module. The module also provides up to 240 Vrms overvoltage protection and features per-channel open wire detection for thermocouple and +4 ~ +20 mA input types. The M-7018Z supports Modbus RTU and DCON protocols, which can be configured via software, and all hardware specifications are the same as the I-7018Z.
 |
 |
Applications
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| CPU Module | |
|---|---|
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
|---|---|
| Intra-module Isolation | 3000 VDC |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal |
| Surge (IEC 61000-4-5) | ±0.5 kV for Power Line |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication |
| Analog Input | |
|---|---|
| Channels | 10 Differential |
| Type | Voltage Current Thermocouple |
| Sensor Type | Thermocouple: J, K, T, E, R, S, B, N, C, L, M, LDIN43710 |
| Stable and Consistent Temperature Output | Yes |
| Range | Voltage: ±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V Current: ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA (requires an optional external 125 Ω resistor) |
| Resolution | 16-bit |
| Accuracy | ±0.1% of FSR |
| Sampling Rate | 10 Hz (Total) |
| Input Impedance | > 400 kΩ |
| Common Voltage Protection | ±200 VDC |
| Overvoltage Protection | 240 Vrms |
| Individual Channel Configuration | Yes |
| Open Wire Detection | For Thermocouple (Software Selectable, *Note1) and 4 ~ 20 mA |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1) |
| Protocol | Modbus RTU, DCON |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | 1.0 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | M-7018Z: 73 x 116 x 35 (W x L x H) DB-1820: 65 x 78 x 22 (W x L x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Specification Memo
Note1: Firmware version B4.4 or later.
