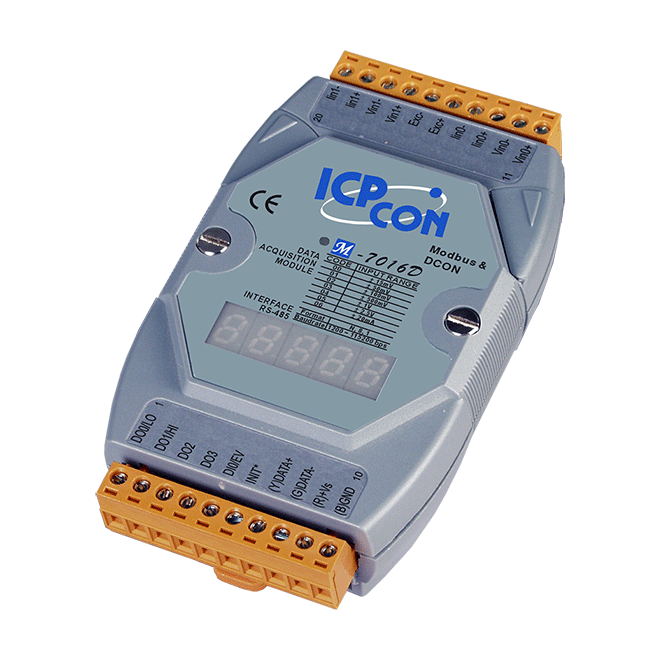

In the industrial environment, there are numerous examples where force needs to be converted into measurable electrical output. In most cases, a strain gauge or a load cell can be used. But the question is, how do we then deal with these electrical output measurements? In this situation, The M-7016D is definitely the No. 1 choice. Not only can the module process data from a load cell or a strain gauge, but it also features linear mapping that can be used to directly convert the resulting data into weight via a user-defined correspondent table.

The M-7016D supports full-bridge strain gauges and provides 2 analog input channels, 1 excitation voltage output channel, 1 digital input channel, and 4 digital output channels. The module provides a programmable input range (±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, and ±2.5 V) and each analog input channel can be individually configured. The excitation voltage output can be in the range of 0 ~ +10 V, with a 40 mA driving efficiency. Digital output channels can also be set as high or low alarm outputs. The M-7016D supports Modbus RTU and DCON protocols, which can be configured via software, and all hardware specifications are the same as the I-7016.

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
