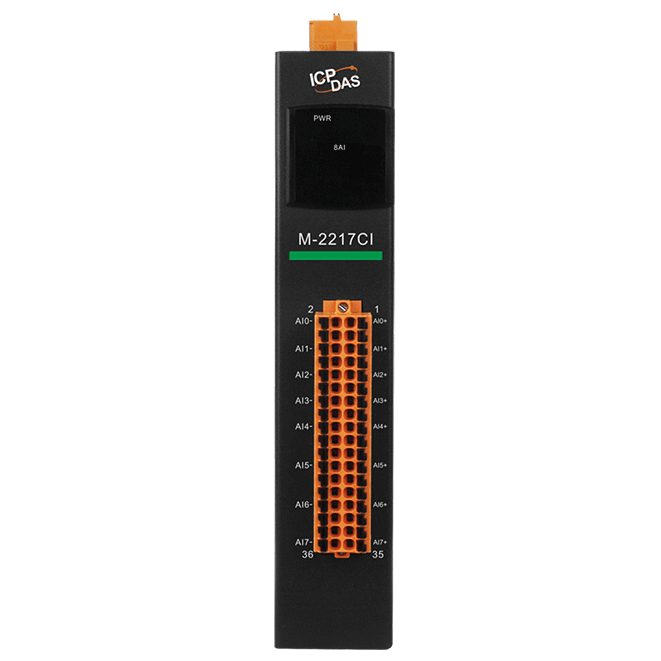

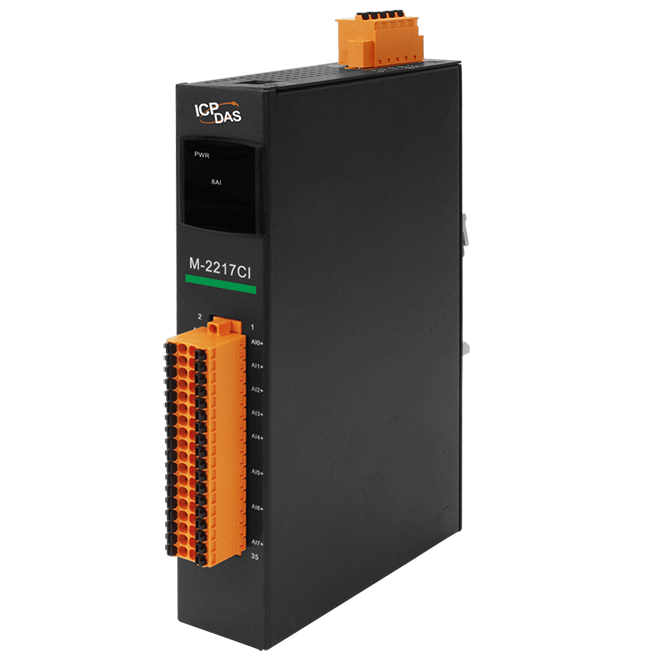

M-2217CI
8-ch Channel to Channel Isolation Differential Analog Input Module
Features
- Software Configurable Voltage/Current Input
- Adjustable Sampling Rate (200Hz/10Hz per channel)
- Records with Time Stamps for Voltage and Current Measurements
- 320,000 records/each channel
- Built-in I/O
- 8-ch AI (Differential)

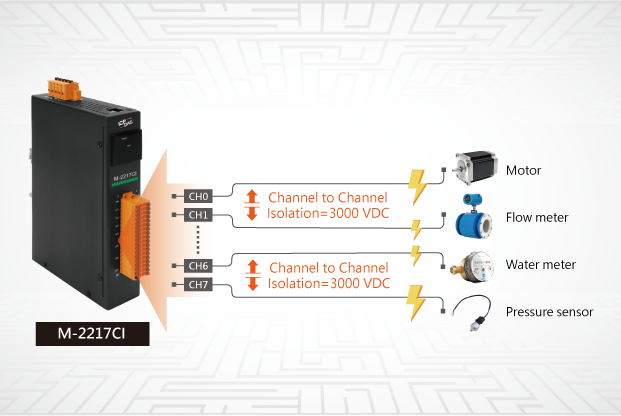

- 3000 VDC Channel-to-Channel Isolation
Introduction
M-2217CI is a 8-channel analog input module with channel-to-channel isolation. All analog input channels can be individually configured with input ranges including ±1 V, ±2.5 V, ±5 V, ±10 V, 0-20 mA, 4-20 mA, and ±20 mA. The module can be set as voltage or current inputs via the software and provides up to 120 VDC overvoltage protection, as well as 50 mA overcurrent protection at 110 VDC/VAC. Additionally, each 4-20 mA input channel features open wire detection.
The sampling rate of M-2217CI can be set to either fast mode (200 Hz) or normal mode (10 Hz) for recording voltage and current values with timestamps. It also provides EMS (EFT/ESD/Surge) protection and 3000 VDC I/O isolation to enhance noise protection capabilities in industrial environments.
The sampling rate of M-2217CI can be set to either fast mode (200 Hz) or normal mode (10 Hz) for recording voltage and current values with timestamps. It also provides EMS (EFT/ESD/Surge) protection and 3000 VDC I/O isolation to enhance noise protection capabilities in industrial environments.
Applications
Factory Automation, Machine Automation, Building Automation, Remote Diagnosis & Maintenance, Testing Equipment
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products

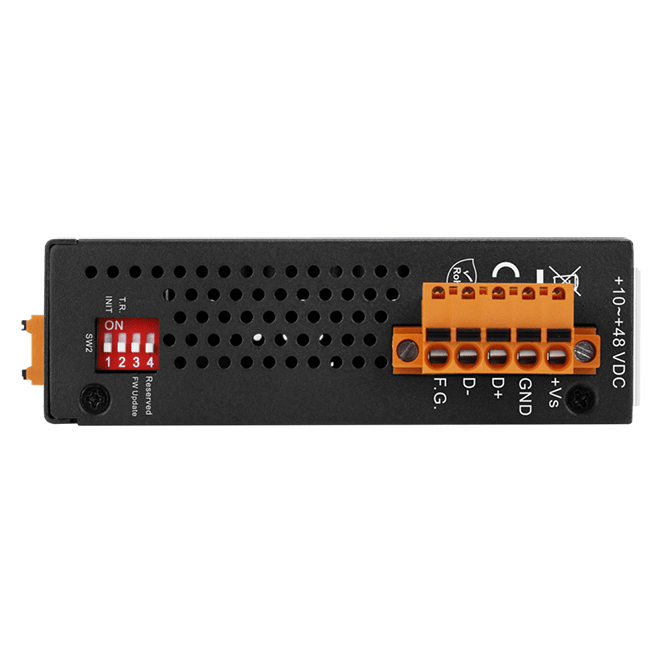

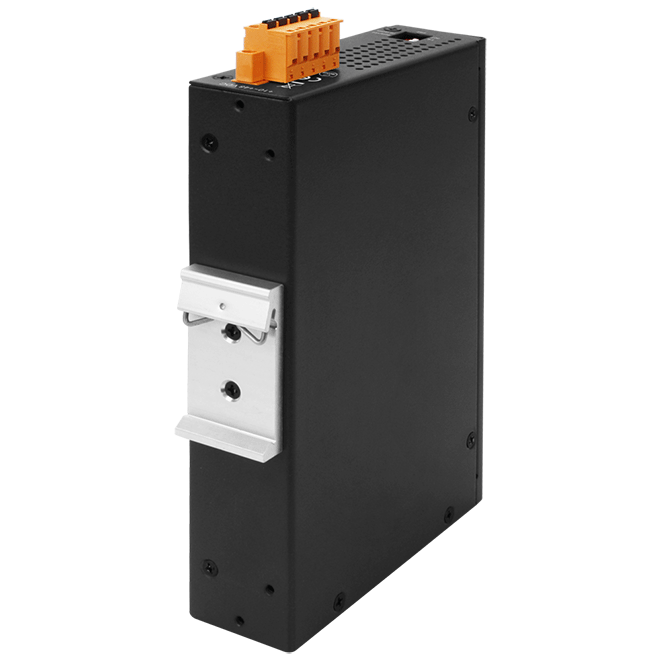

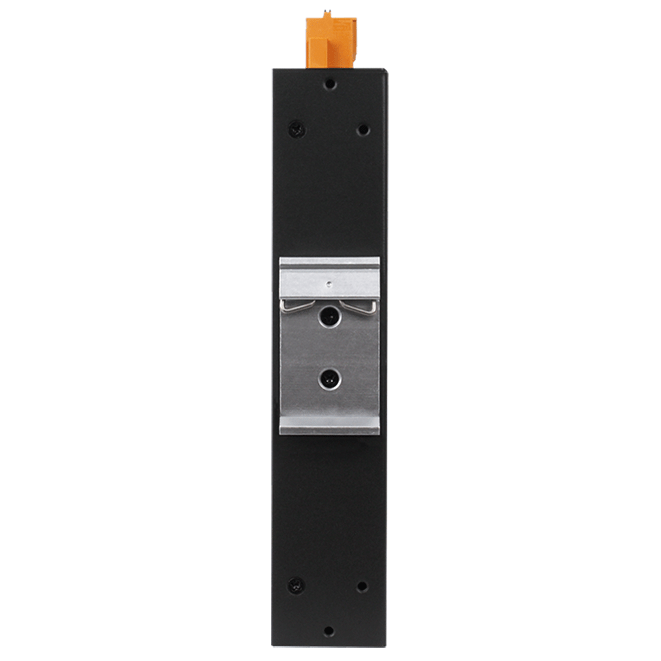

| CPU Module | |
|---|---|
| CPU | 32-bit ARM |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for each Terminal ±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication |
| Analog Input | |
|---|---|
| Channels | 8 Differential |
| Type | Voltage, Current (Software Configurable) |
| Range | Voltage: ±1 V, ±2.5 V, ±5 V, ±10 V Current: 0 ~20 mA, 4 ~ 20 mA, ±20 mA |
| Resolution | 16-bit |
| Accuracy | 0.1% of FSR |
| Sampling Rate | Normal Mode: 10 Hz (Total) Fast Mode: 200 Hz (Total) |
| Input Impedance | Voltage: 20 MΩ Current: 135 Ω |
| Overvoltage Protection | 120 VDC |
| Overcurrent Protection | 50 mA at 110 VDC (max.) |
| Individual Channel Configuration | Yes |
| Channel-to-Channel Isolation | 3000 VDC |
| Open Wire Detection | For 4 ~ 20 mA only |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485 |
| Baud Rate | 1200 to 115200 bps |
| Data Format | (N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1) |
| Protocol | Modbus RTU, DCON |
| Bias Resistor | 10 kΩ |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +48 VDC |
| Consumption | 4.8 W Max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 33 x 184 x 129 (W x L x H) |
| Installation | DIN-Rail mounting<br/>Wall mounting (Optional ASO-0015) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
