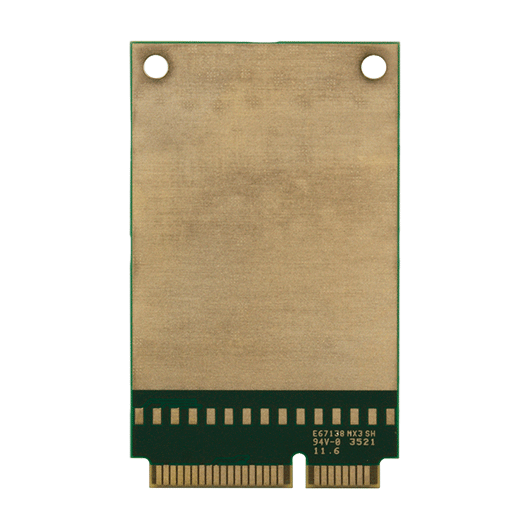

LE910C4-WWX
LTE Cat-4 module
Features
- Standard Mini PCIe Data-card form factor
- Easy to integrate with peripherals and actuators using USB 2.0 HS, UART and user definable GPIOs
- Internet friendly with integrated TCP/IP and UDP/IP stacks
- Made in China
Introduction
The LE910C4-WWX Mini PCIe (mPCIe) modules areoptimized for LTE low category networks and are available in single mode and 3G/2G fallback options.
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| 2G System | |
|---|---|
| Data Transmission Rate | GPRS Downlink transfer: Max. 107 kbps; Uplink transfer: Max. 85.6kbps |
| Frequency Band | B2/ B3/ B5/ B8 |
| GPRS Multi-slot | GPRS class 10/8; GPRS station class B |
| Power Class | Class 4 (2 W @ 850/900 MHz) Class 1 (1 W @ 1800/1900 MHz) |
| SMS Format | Sending: UCS2/7bits Receiving: UCS2/7bits |
| 3G System | |
|---|---|
| Data Transmission Rate | DC-HSPA+ Downlink transfer: Max. 42 Mbps; Uplink transfer: Max. 5.76Mbps WCDMA Downlink transfer: Max. 384 Kbps; Uplink transfer: Max. 384 Kbps |
| Frequency Band | B1/ B2/ B4/ B5/ B8/ B19 |
| Power Class | Class 3 (24dBm +1/-3dB) for WCDMA |
| SMS Mode | MT, MO, CB, Text and PDU mode |
| 4G System | |
|---|---|
| Data Transmission Rate | LTE(Cat.4) Downlink transfer: Max. 150 Mbps; Uplink transfer: Max. 50 Mbps |
| Frequency Band | B1/ B2/ B3/ B4/ B5/ B7/ B8/ B12/ B13/ B14/ B19/ B20/ B26/ B28 |
| Mechanical | |
|---|---|
| Dimensions (mm) | 51 x 30 x 3.2 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -35°C ~ +75°C |
| Storage Temperature | -40°C ~ +85°C |
