IEC850-211
IEC-61850 Client to Modbus Slave Gateway
Features
- Read and write IEC61850 objects via Modbus commands
- Automatically map IEC-61850 data objects to Modbus registers via the Utility
- Supports MMS data types Boolean, Integer, Unsigned, Float, BIT_STRING, UTC_TIME
- Supports Modbus function codes 1, 2, 3, 4, 5, 6, 16
- Supports up to 10 IEC61850 server connections
- Allows a total of 5000 mapping points
- Supports GOOSE Publish & Subscribe
- Supports IEC61850 Reports
- The Utility supports importing SCL (SCD/CID/ICD) files
Introduction

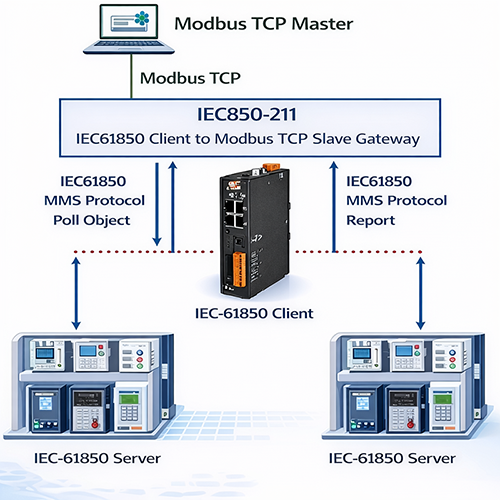

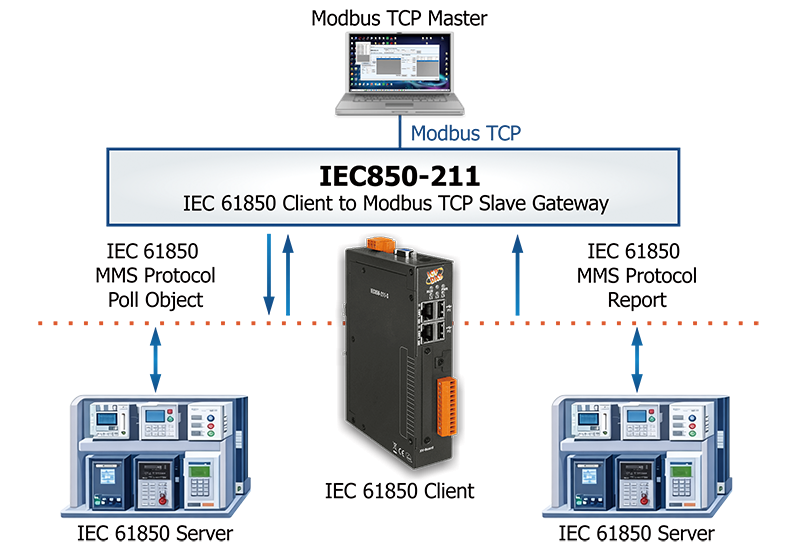

IEC850-211 is a communication gateway that provides data conversion between an IEC 61850 Client and a Modbus Slave, enabling devices on an IEC 61850 network to be accessed and integrated by existing Modbus systems. It is particularly suitable for substation automation and power monitoring applications. The gateway supports various MMS data types, including Boolean, Integer, Unsigned, Float, BIT_STRING, and UTC_TIME, ensuring data integrity and consistency during conversion. In addition, it supports IEC 61850 Report and GOOSE Publish/Subscribe mechanisms to achieve real-time event transmission and high-speed communication. With the dedicated Utility tool, users can import SCL (SCD/CID/ICD) files and automatically configure data mapping, allowing IEC 61850 data objects to be mapped to Modbus registers, significantly simplifying system integration and improving overall deployment efficiency.
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Software | |
|---|---|
| OS | Linux Kernel 3.2.14 |
| Protocol | Modbus TCP server: • Function:1,2,3,4,5,6,16 IEC-61850 MMS client: • connection:Max. 10 MMS servers • MMS data types : Boolean, Integer, Unsigned, Float, BIT_STRING, UTC_TIME • Max Mapping Point:5000 • control: ---- status-only ---- direct-with-normal-security ---- direct-with-enhanced-security ---- sbo-with-normal-security ---- sbo-with-enhanced-security |
| Service | SFTP server, Web server |
| Main Unit | |
|---|---|
| CPU | Cortex-A8, 1 GHz |
| System Memory | 512 MB DDR3 SDRAM |
| Real Time Clock | Yes (Provide seconds, minutes, hours, day of week, month, year) |
| Watchdog Timer | Yes, Dual Watchdog Timer |
| Display | |
|---|---|
| Signal | VGA (Analog RGB) |
| LED Indicators | |
|---|---|
| Status | 1 x PWR(Power) 1 x RUN(Running) 1 x L1 1 x L2 1 x L3 |
| Ethernet | |
|---|---|
| Ports | 2 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 (Console, Non-isolated) 1 x RS-232, Non-isolated 1 x RS-485, Non-isolated 1 x RS-485 (2500 VDC, Isolated) |
| USB | |
|---|---|
| Ports | 2 |
| Specification | USB 2.0 (Host) |
| Power | |
|---|---|
| Input Range | +12 VDC ~ +48 VDC |
| Consumption | 4.8 W |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | 35 x 167 x 119 (W x L x H) |
| Installation | DIN-Rail or Wall Mounting (optional) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
