I-9720

Modbus RTU/ASCII slave to HART master gateway with 2 HART ports

Features

Support two HART channels
Support HART Short/Long frame
Support Modbus RTU and ASCII format
Support HART network Loop Power
Built-In HART network resistor 250 ohm (2W)
Provide LED indicators
Support Windows / WinCE / Linux 9K series PAC
Free HG_Tool for module configuration
Support module configuration via USB
Support RST button for module reboot

Introduction

I-9720 is a Modbus RTU/ASCII slave to HART master gateway with two HART ports. It can be used in Windows / WinCE / Linux 9K series PAC for Modbus master to get HART device data easily. It provides adjustable HART loop power (27VDC) and loop resistor (250 ohm, 2W) to simplify HART network wiring. Free HG_Tool is used for module configuration and HART device data monitor quickly.

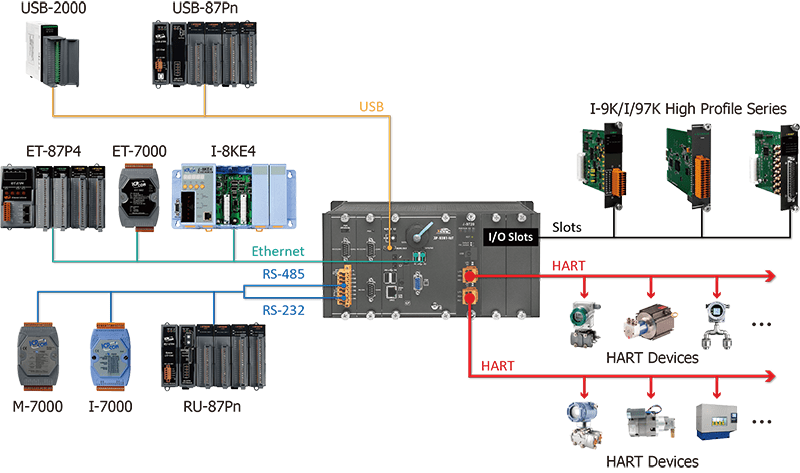

Applications

Ordering Information

Available soon

Will be phased out

Phased out

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY
PRODUCT SERIES I-9720 CR	DESCRIPTIONModbus RTU/ASCII slave to HART master gateway with 2 HART ports (RoHS)

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

Software
Driver	Windows XP / 7 / 8 / 10 / 11 (32/64 bit)

LED Indicators
Status	PWR / RUN / E0 / E1

COM Ports
Ports	Backplane (Virtual COM)
Baud Rate	1200 ~ 115200 bps
Data Format	N/O/E(parity), 8(data bit), 1/2(stop bit)
Protocol	Modbus RTU / Modbus ASCII

USB
Specification	USB 1.1 and 2.0 standard
Connector	USB Type C
Virtual COM Parameter	1200 ~ 115200 bps, N/O/E(parity), 8(data bit), 1/2(stop bit)

HART
Ports	2
Device	2-wired or 4-wired HART devices
Topology	Point to Point or Multi-Drop
Data	Only Digital Data
Frame Type	Short and Long Frame
Burst Mode	Supported
Max. HART Device	15
Loop Resistor	250 Ω resistor by Dip-Switch
Isolation	UL1577 Spec.
Protocol	HART
Loop Power	Yes (module provides +27VDC)

Power
Reverse Polarity Protection	Power reverse polarity protection, Over-voltage brown-out protection
Input Range	Unregulated +10 ~ +30 VDC
Consumption	Max. 2.3 W (Point to Point HART wiring) Max. 4.5 W (Multi-drop HART wiring)
