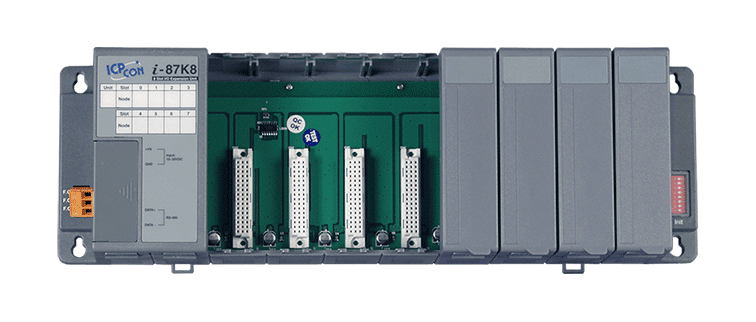

I-87K8-G

8-slot RS-485 I/O Expansion Unit for I-87K Series I/O Modules (DCON Protocol) (Gray Cover)

Features

• RS-485 Port for Multi-Drop Topology
• DCON Protocol
• 8 I/O Slots for I-87K Modules
• Operating Temperature: -25 ~ +75 °C

Introduction

I-87K8-G is an I/O expansion unit to expand I/O via the RS-485. It is designed to be used in harsh and noisy environment, so the hardware is manufactured with wide power input range (10 ~ 30 VDC), isolated power input and can operate under wide temperature (-25 ~ +75 °C). To simplify installation and maintenance of I/O modules.

There are more than 30 I/O modules supported with the unit, including analog input/output, digital input/output, counter, frequency I/O modules. We provide various software development kits (SDK) and demos, such as DLL, ActiveX, Labview driver, InduSoft driver, Linux driver, OPC server. The I-87K series I/O modules plugged in the I-87Kn can be easily integrated into variant software system.

Applications

Ordering Information

Available soon

Will be phased out

Phased out

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY
PRODUCT SERIES I-87K8-G CR	DESCRIPTION8-slot RS-485 I/O Expansion Unit for I-87K Series I/O Modules (DCON Protocol) (Gray Cover) (RoHS)

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

LED Indicators
Status	1 x Power

I/O Expansion
I/O Type	High profile I-87K
Slots	8

COM Ports
Ports	1 x RS-485 (3000 VDC Isolated)
Baud Rate	115200 bps Max.
Protocol	DCON

Power
Input Range	+10 ~ 30 VDC
Consumption	2.0 W

Mechanical
Dimensions (mm)	354 x 111 x 75 (W x L x H)
Installation	DIN-Rail, Wall mounting

Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-30 ~ +75 °C
Humidity	10 ~ 90 % RH, Non-condensing
