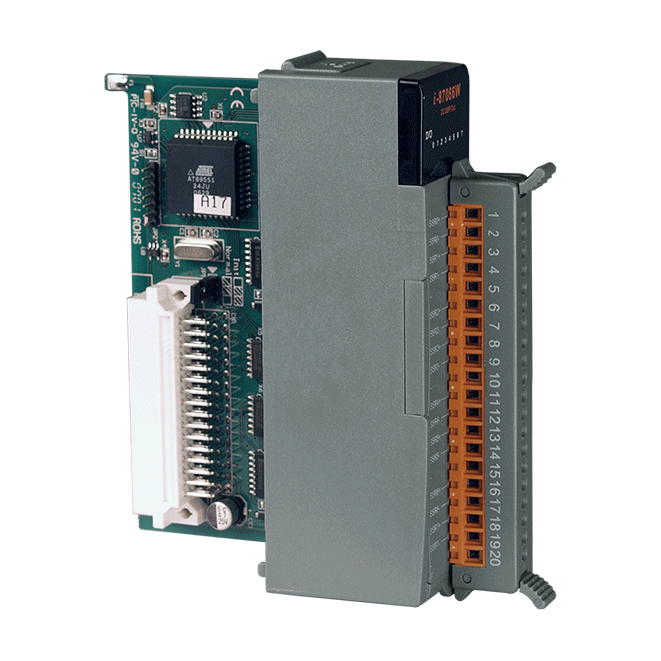

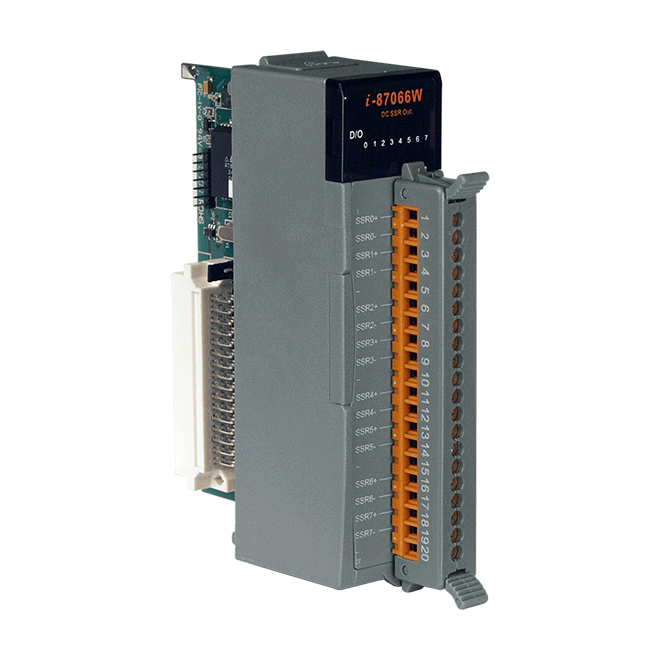

I-87066W-G
8-ch DC-type SSR Relay Module
Features
• 8-channel DC SSR Output
• Form A DC Solid State Relay Output
• Fast Operating/Release Time
• No Arcing, Bouncing, or Switching Noise
• Configurable Power-on Value
• Configurable Safe Value
• Unlimited Relay Lifetime
Introduction
The I-87066W module provides 8 DC Solid State Relay (SSR) Output channels. In comparison to electromechanical relays, SSR technology provides a faster response time and greater electrical endurance. The integration of DC SSR technology also eliminates the potential for arcing, bouncing, and switching noise. The I-87066W includes 8 LED indicators that can be used to monitor the status of the SSR output, and options are available for configuring power-on and safe values. 4 kV ESD protection and 3000 VDC intra-module isolation are also provided to enhance noise protection capabilities of the module in harsh industrial environments.
Applications
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| CPU Module | |
|---|---|
| Watchdog Timer | Yes, Module (1.6 Seconds), Communication (Programmable) |
| Isolation | |
|---|---|
| Intra-module Isolation | 3000 VDC |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication 8 x I/O |
| Relay Output | |
|---|---|
| Channels | 8 (Form A) |
| Type | Solid State Relay (DC) |
| Contact Rating | Operating Voltage Range: +3 ~ +30 VDC Max. Load Current: 1 A Leakage Current: 0.1 mA |
| Operate Time | 1 ms (Min.) |
| Release Time | 1 ms (Min.) |
| Electrical Endurance | Long Life, No Arcing, No Bounce, No Switching Noise |
| Power on Value | Yes |
| Safe Value | Yes |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | N, 8, 1 |
| Protocol | DCON |
| Power | |
|---|---|
| Consumption | 0.6 W Max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 30 x 115 x 102 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
