I-87042W-G

16-ch Isolated DI & 16-ch Isolated DO Module

Features

• Digital Input for Sink Type or Source Type
• Digital Outputs for Sink Type
• Power On Value Setting
• Safe Value Setting
• Photocouple Isolation

Introduction

I-87042W offers 16 channels for digital input and 16 channels for digital output.Each of which features Photo-couple isolation.I-87042W supports sink type output with short-circuits protection. There are option for power on value and safe value for your consideration. About Input, you can chose sink type or source type input by wire connection. All channels are able to be used as 16-bit counter. I-87042W also has 32 LED indicators for channel status. 4KV ESD protection and 3750VDC intra-module isolation are standard.

Applications

• Industry Automation.
• Industrial Machinery.
• Building Automation.
• Food & Beverage.
• Semiconductor
• Fabrication.
• Control System.

Ordering Information

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY

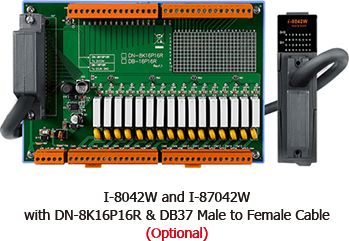

PRODUCT SERIES I-87042W-G CR	DESCRIPTION16-ch Isolated DI & 16-channel Isolated DO (Sink, NPN) Module (RoHS) Includes CA-4002F (DB37 connector Female with plastic cover)

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

CPU Module
Watchdog Timer	Yes, Module (1.6 Seconds), Communication (Programmable)

Isolation
Intra-module Isolation	3750 VDC

EMS Protection
ESD (IEC 61000-4-2)	± 4 kV Contact for Each Terminal ±8 kV Air for Random Point

LED Indicators
Status	1 x Power and Communication 32 x I/O

Digital Input
Channels	16 (One common for all Inputs)
Type	Wet Contact
Sink/Source (NPN/PNP)	Sink/Source
ON Voltage Level	+3.5 V ~ 30 V
OFF Voltage Level	+2 VDC Max.
Isolation	3750 VDC
Input Impedance	3 KΩ
Low Pass Filter	Yes

Digital Output
Channels	16
Type	Open Collector
Sink/Source (NPN/PNP)	Sink
Load Voltage	+5 VDC ~ +30 VDC
Load Current	100 mA/Channel
Isolation	3750 VDC
Power on Value	Yes
Safe Value	Yes
