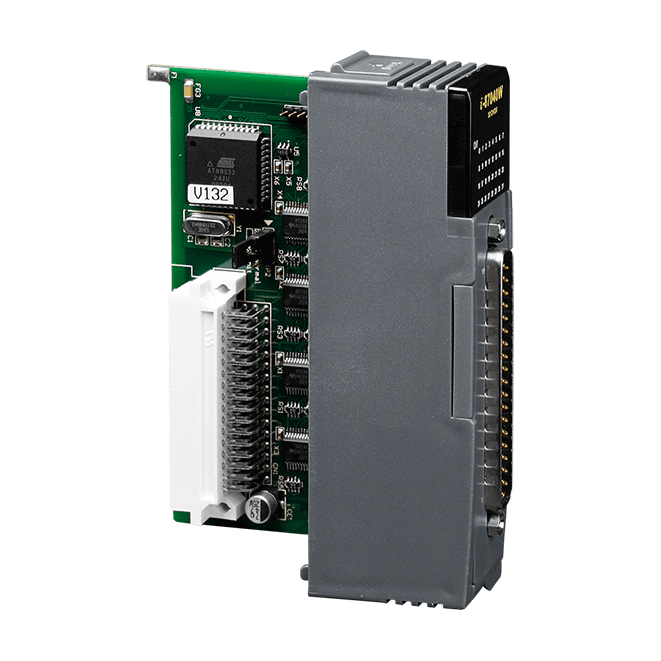

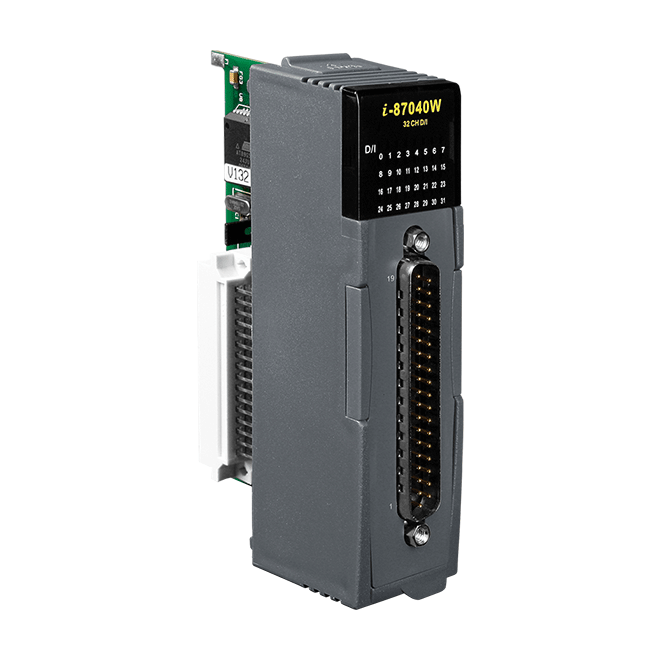

I-87040W-G

32-ch Isolated DI (3.5~30 VDC) Module

Features

• Sink- or Source-type Digital Inputs
• Photocouple Isolation
• All Channels can be used as 16-bit Counters
• Optional Daughter board connectivity
• D-sub DB37 Wiring
• Dual Watchdog

Introduction

The I-87040W offer 32 channels for digital input, each of which features photocouple isolation. Either sink- or source-type input can be selected via wire connections. All channels are able to be used as 16-bit counters and 32 LED indicators that can be used for monitoring DI channel status are also provided, together with 4 kV ESD protection and 3750 VDC intra-module isolation. Paired with a daughter board such as the DN-37-381-A, wiring is easier than ever.

Applications

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Ordering Information

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY
PRODUCT SERIES I-87040W-G CR	DESCRIPTION32-ch Isolated DI (Wet, 3.5~30 VDC) Module (RoHS) Includes CA-4002F (DB37 connector Female with plastic cover)

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

CPU Module
Watchdog Timer	Yes, Module (1.6 Seconds), Communication (Programmable)

Isolation
Intra-module Isolation	3750 VDC

EMS Protection
ESD (IEC 61000-4-2)	± 4 kV Contact for Each Terminal ±8 kV Air for Random Point

LED Indicators
Status	1 x Power and Communication 32 x I/O

Digital Input
Low Pass Filter	Yes

Digital Input/Counter
Channels	32
Type	Wet Contact
Sink/Source (NPN/PNP)	Sink, Source
ON Voltage Level	+3.5 VDC ~ +30 VDC
OFF Voltage Level	+1 VDC Max.
Max. Counts	16-bit (65535)
Frequency	100 Hz
Min. Pulse Width	5 ms
Input Impedance	4.7 kΩ, 0.25 W
Overvoltage Protection	35 VDC
