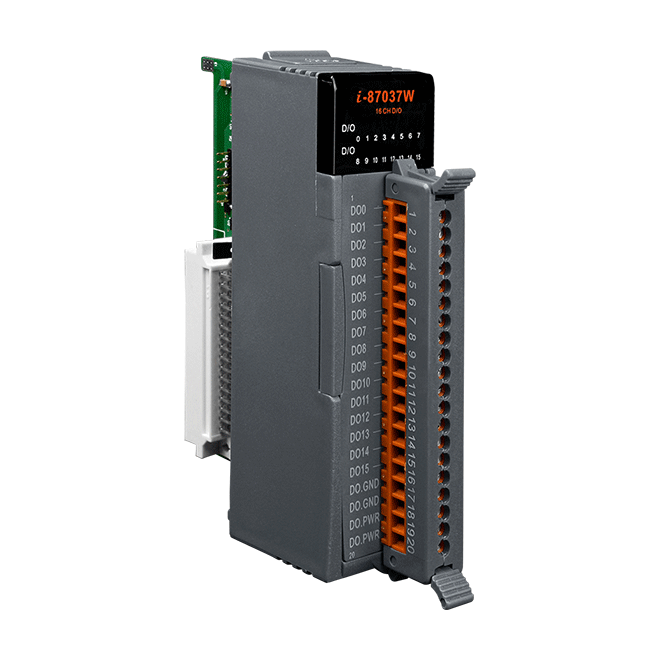

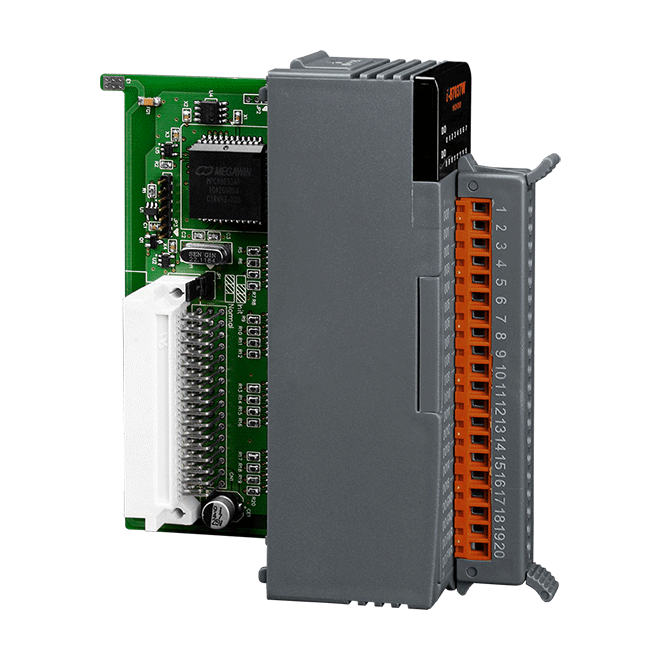

I-87037W-G
16-ch Isolated DO (10~40 VDC) Module
Features
• Source Type Digital Outputs
• Photo Couple Isolation
• Dual Watchdog
• Power On Value Setting
• Safe Value Setting
• Short Circuit Protection
Introduction
The I-87037W provides 16 channels for digital output, each of which features photo couple isolation. The I-87037W supports source type output with short circuit protection and each channel can drive 700mA load. There are options for configuring power-on and safe digital output values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided to enrich the noise protection ability for industrial environment.
Applications
• Industry Automation
• Industrial Machinery
• Building Automation
• Food & Beverage
• Semiconductor
• Fabrication
• Control System
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| CPU Module | |
|---|---|
| Watchdog Timer | Yes, Module (1.6 Seconds), Communication (Programmable) |
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication 16 x I/O |
| Digital Output | |
|---|---|
| Channels | 16 |
| Type | Open Emitter |
| Sink/Source (NPN/PNP) | Source (PNP) |
| Load Voltage | +10 VDC ~ +40 VDC |
| Load Current | 700 mA per channel |
| Overvoltage Protection | 47 VDC |
| Overload Protection | Yes |
| Short-circuit Protection | Yes |
| Power on Value | Yes, Programmable |
| Safe Value | Yes, Programmable |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | N, 8, 1 |
| Protocol | DCON |
| Power | |
|---|---|
| Consumption | 0.41 W Max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 30 x 102 x 115 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
