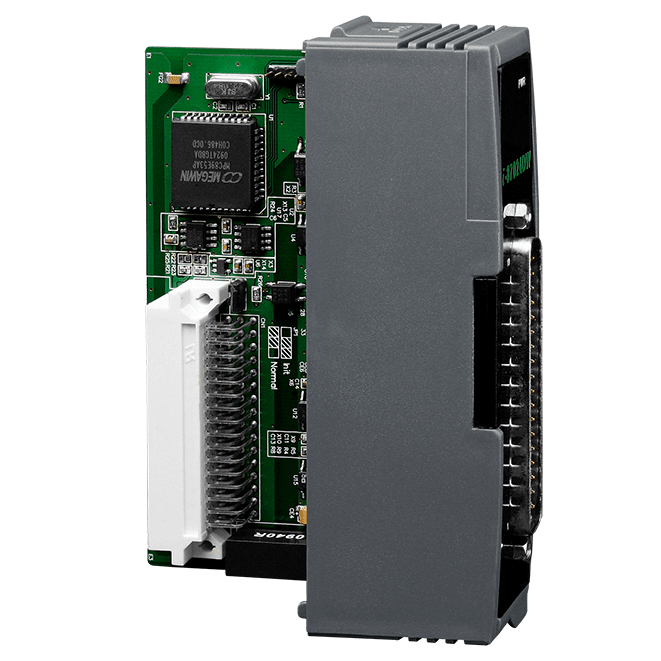

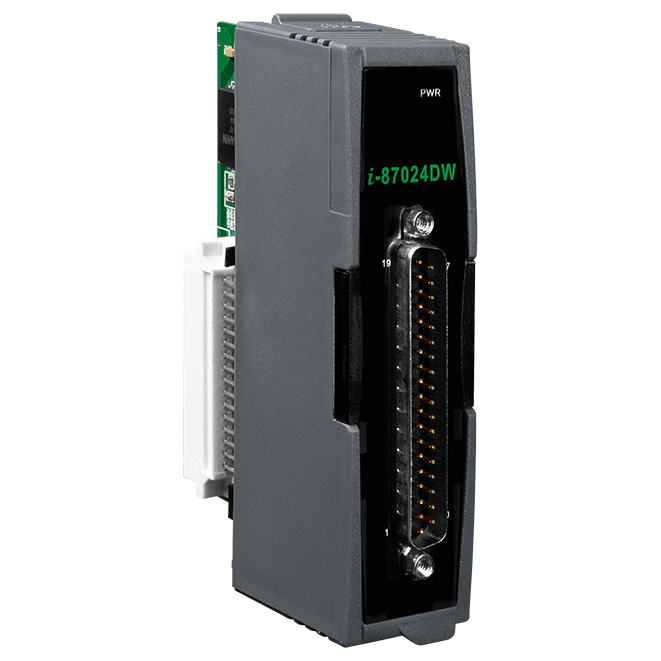

I-87024DW-G

4-ch AO Module

Features

• 4-channel Analog Output
• D-Sub 37-Pin Connector
• Dual Watchdog
• Configurable Power-on Value
• Configurable Safe Value
• Open Daughter Board Detection
• RF Immunity

Introduction

The I-87024DW is a serial interface and 4-channel analog output module. The programmable analog outputs are 14-bit resolution and support an output range of 0 ~ 5 V, ±5 V, 0 ~ 10 V, ±10 V, 0 ~ +20 mA, or +4 ~ +20 mA.

Applications

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Ordering Information

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY
PRODUCT SERIES I-87024DW-G CR	DESCRIPTION4-ch AO Module with DB37 Connector (RoHS)

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

CPU Module
Watchdog Timer	Yes, Module (1.6 Seconds), Communication (Programmable)

Isolation
Intra-module Isolation	3000 VDC

EMS Protection
ESD (IEC 61000-4-2)	± 4 kV Contact for Each Terminal ±8 kV Air for Random Point
RS Immunity (IEC 61000-4-3)	3 V/m, 80 MHz ~ 1 GHz

LED Indicators
Status	1 x Power and Communication 16 x I/O

Analog Output
Channels	4 Sink
Type	Voltage Current
Range	0 ~ +5 VDC, ±5 VDC, 0 ~ +10 VDC, ±10 VDC, 0 ~ +20 mA, +4 ~ +20 mA
Resolution	14-bit
Accuracy	±0.1% of FSR
Zero Drift	Voltage: ±30 μV/°C Current: ±0.2 μA/°C
Span Drift	±20 ppm/°C
Short Circuit Protection	Yes
DA Output Response Time	10 ms per channel
Programmable Output Slope	Voltage: 0.0625 ~ 1024 V/Second Current: 0.125 ~ 2048 mA/Second
Open Wire Detection	Yes
Current Load Resistance	External +24 VDC @ 1050 Ω
Power-on Value	Yes
Safe Value	Yes
Open Daughter Board Detection	Yes
