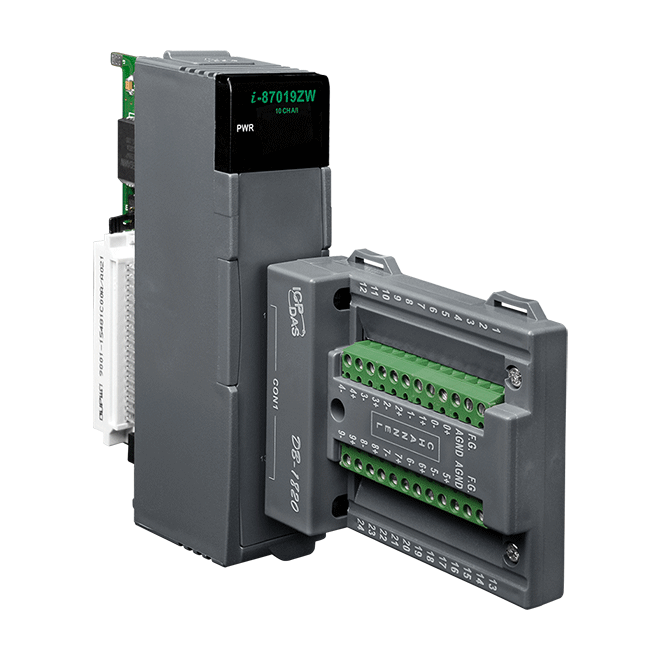

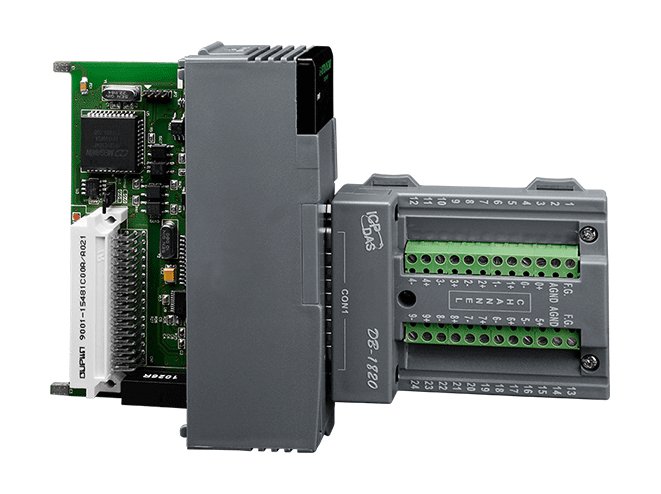

I-87019ZW-G/S
10-ch Universal AI Module
Features
• 10-channel Analog Input
• Individual Channel Configuration
• Open Thermocouple Detection
• Temperature Output Consistency
• Stable Temperature Output in the Field
• 240 Vrms Overvoltage Protection
• Jumper Selectable Voltage or Current Input
• Dual Watchdog
• Individual Channel Configuration
• Open Thermocouple Detection
• Temperature Output Consistency
• Stable Temperature Output in the Field
• 240 Vrms Overvoltage Protection
• Jumper Selectable Voltage or Current Input
• Dual Watchdog
Introduction
The I-87019ZW is a 10-channel universal analog input module with an RS-485 interface that is a specially designed for extremely accurate thermocouple measurement and features automatic cold-junction compensation for each channel to ensure temperature output consistency and stable temperature output in the field. The innovative design of the enhanced model ensures that thermocouple measurement is more accurate than with the earlier design. Besides the thermocouple inputs, the I-87019ZW also supports voltage and current inputs. The voltage input range can be form +/-15 mV to +/-10 V, and the current input range can be either 4 ~ 20 mA, 0 ~ 20 mA, or +/- 20 mA. Up to 10 analog inputs of different types can be connected to a single module. Overvoltage protection of up to 240 Vrms is provided. The module also features per-channel open wire detection for thermocouple and 4 ~ 20 mA inputs.
Applications
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| CPU Module | |
|---|---|
| Watchdog Timer | Yes, Module (1.6 Seconds), Communication (Programmable) |
| Isolation | |
|---|---|
| Intra-module Isolation | 3000 VDC |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication 16 x I/O |
| Analog Input | |
|---|---|
| Channels | 10 Differential |
| Type | Voltage、Current、Thermocouple |
| Sensor Type | (J, K, T, E, R, S, B, N, C, L, M, LDIN43710 |
| Range | +/-15 mV, +/-50 mV, +/-100 mV, +/-150 mV +/-500 mV, +/-1 V, +/-2.5 V, +/-5 V,+/-10 V -20 mA ~ +20 mA, 0 ~ 20 mA, 4 ~ 20 mA (Jumper Selectable) Thermocouple Type: (J, K, T, E. R. S, B, N, C, L, M, and LDIN43710) |
| Resolution | 16-bit |
| Accuracy | ±0.1% of FSR |
| Sampling Rate | 10 Hz (Total) |
| Input Impedance | Voltage: >400 kΩ Current: 125 Ω |
| Common Mode Rejection | 86 dB |
| Normal Mode Rejection | 100 dB |
| Overvoltage Protection | 240 Vrms |
| Individual Channel Configuration | Yes |
| Open Wire Detection | Yes |
| Zero Drift | ±20 μV/°C |
| Span Drift | ±25 ppm/°C |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | (N, 8, 1), (N, 8, 2), (E, 8, 1), (O, 8, 1) |
| Protocol | DCON |
| Power | |
|---|---|
| Consumption | 1.4 W Max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 30 x 86 x 114 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
