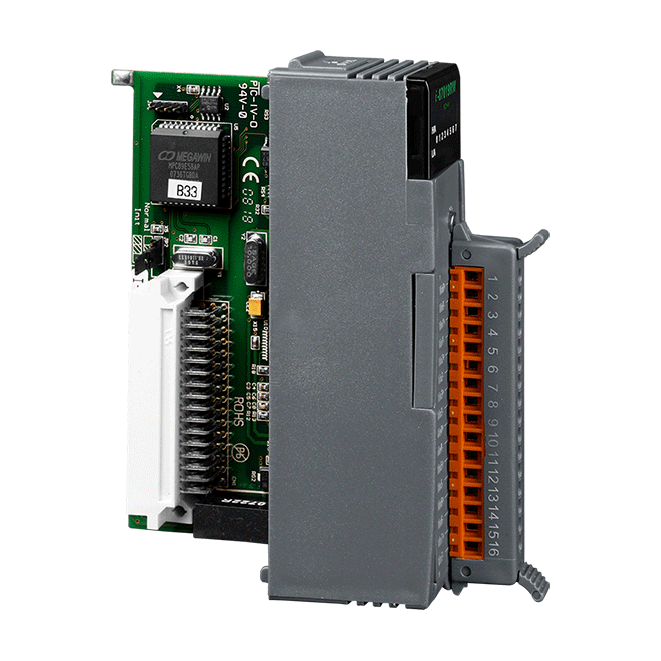

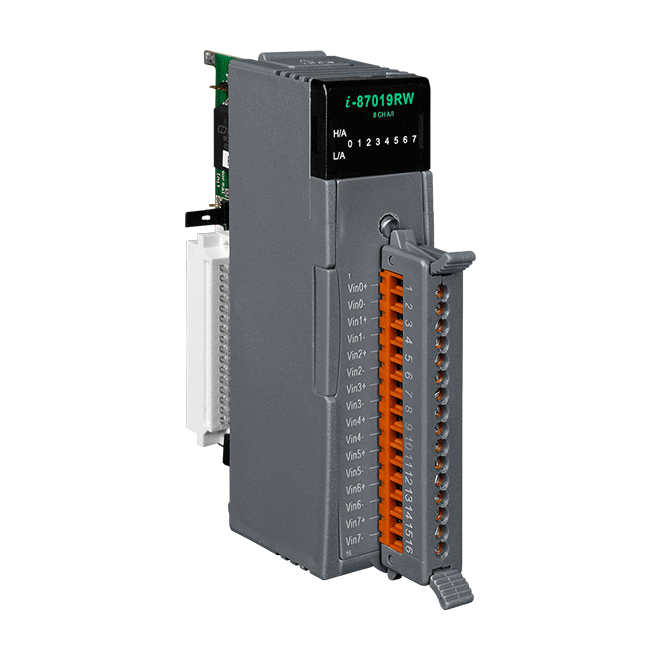

I-87019RW-G
8-ch Universal AI Module with High Voltage Protection
Features
• Current Input, Voltage Input and Thermocouple Input
• Wider Input Range for Voltage
• 240 Vrms Overvoltage Protection
• Individual Channel Configuration
• Jumper Setting for Current or Voltage Measuring
• Open Thermocouple Detection
Introduction
I-87019RW features an extremely excellent protection mechanism where Overvoltage Protection is up to 240 Vrms. It has wider input range for voltage compared to I-87018R. I-87019RW measures voltage from +/- 15 mV ~ +/- 10 V. Its input type also includes current and thermocouple. An intuitive design is kept in this model; choosing to measure current or voltage is simply by a jumper. An external resistor is no longer needed. Eight of its input channels can individually be configured with different kinds of analog input. What’s more, I-87019RW also got open thermocouple detection and many protection mechanisms.
Applications
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| CPU Module | |
|---|---|
| Watchdog Timer | Yes, Module (1.6 Seconds), Communication (Programmable) |
| Isolation | |
|---|---|
| Intra-module Isolation | 3000 VDC |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication |
| Analog Input | |
|---|---|
| Channels | 8 Differential |
| Type | Voltage、Current、Thermocouple |
| Sensor Type | (J, K, T, E, R, S, B, N, C, L, M, LDIN43710 |
| Range | +/- 15 mV, +/- 50 mV, +/- 100 mV, +/- 150 mV, +/- 500 mV, +/- 1 VDC , +/- 2.5 VDC, +/- 5 VDC, +/- 10 VDC -20 mA ~ +20 mA (Jumper Selectable) Thermocouple (J, K, T, E, R, S, B, N, C, L, M, and LDIN43710) |
| Resolution | 16-bit |
| Accuracy | ±0.1% of FSR |
| Sampling Rate | 8 Hz (Total) |
| Bandwidth | 15.7 Hz |
| Input Impedance | Voltage: >2 MΩ Current: 125 Ω |
| Common Mode Rejection | 113 dB |
| Normal Mode Rejection | 100 dB |
| Overvoltage Protection | 240 Vrms |
| Individual Channel Configuration | Yes |
| Open Wire Detection | Yes |
| Zero Drift | ±20 μV/°C |
| Span Drift | ±25 ppm/°C |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | (N, 8, 1), (N, 8, 2), (E, 8, 1), (O, 8, 1) |
| Protocol | DCON |
| Power | |
|---|---|
| Consumption | 1.1 W Max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 30 x 102 x 115 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
