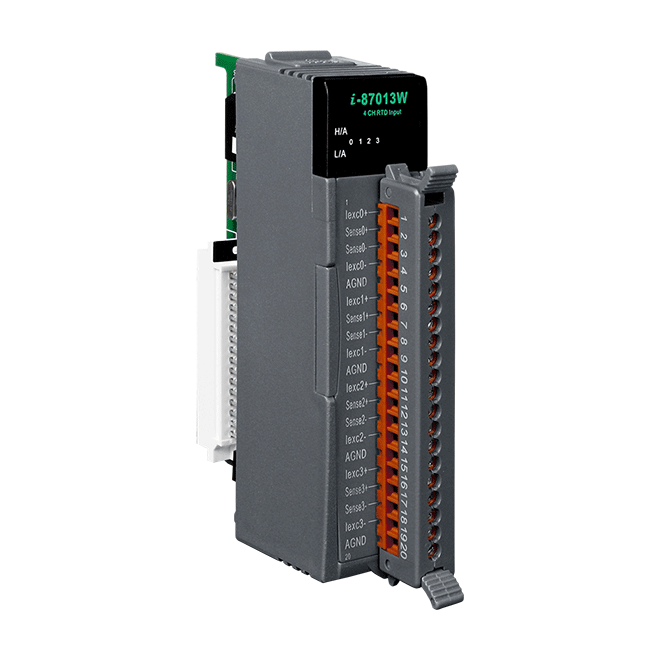

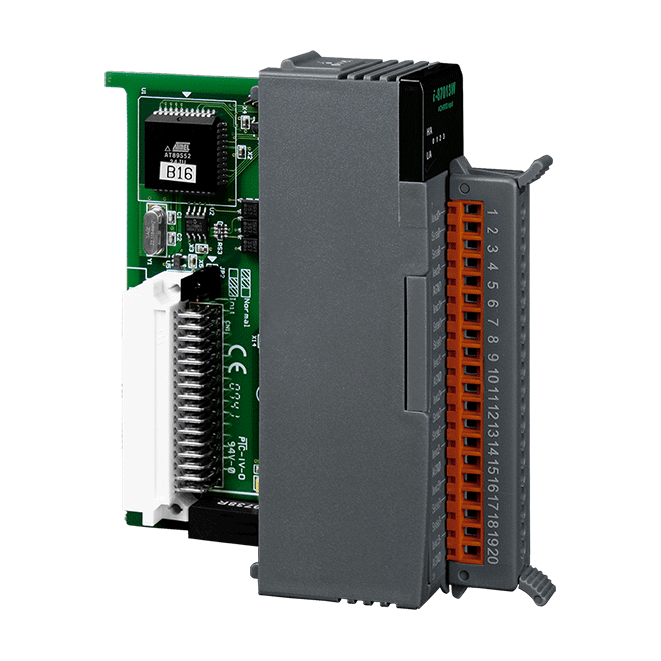

I-87013W-G
4-ch RTD Input Module
Features
• 4-channel RTD Input
• Open Wire Detection
Introduction
The I-87013W is a 4-channel RTD input module that is used for measuring temperature using RTD. The module supports 2/3/4-wire RTD sensor and features open wire detection. The I-87013W also provides 4 kV ESD protection and 3000 VDC intra-module isolation.
Applications
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| CPU Module | |
|---|---|
| Watchdog Timer | Yes, Module (1.6 Seconds), Communication (Programmable) |
| Isolation | |
|---|---|
| Intra-module Isolation | 3000 VDC |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication 8 x I/O |
| Analog Input | |
|---|---|
| Channels | 4 |
| Type | RTD |
| Sensor Type | Pt100, Pt1000, Cu50, Ni120 |
| Resolution | 16-bit |
| Accuracy | ±0.1% of FSR |
| Sampling Rate | 10 Hz (Total) |
| Bandwidth | 15.7 Hz |
| Common Mode Rejection | 150 dB min |
| Normal Mode Rejection | 100 dB |
| Overvoltage Protection | ±25 VDC |
| Open Wire Detection | Yes |
| 3-wire RTD Lead Resistance Elimination | Yes |
| Zero Drift | ±0.5 μV/°C |
| Span Drift | ±25 ppm/°C |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485 |
| Baud Rate | 1200 to 115200 bps |
| Data Format | N, 8, 1 |
| Protocol | DCON |
| Power | |
|---|---|
| Consumption | 0.8 W Max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 30 x 102 x 115 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
